HIKVISION DS-7216HQHI-K2 User Manual

Digital Video Recorder User Manual
21
No.
Name
Function Description
5
POWER
Power on/off switch.
6
JOG SHUTTLE Control
Moves the active selection up and down in a menu.
Cycles through different channels in live view mode.
Jumps 30s forward/backward in video files in the
playback mode.
Controls the movement of the PTZ camera in PTZ
control mode.
Moves the active selection up and down in a menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
8
IR Receiver
Receiver for IR remote control.

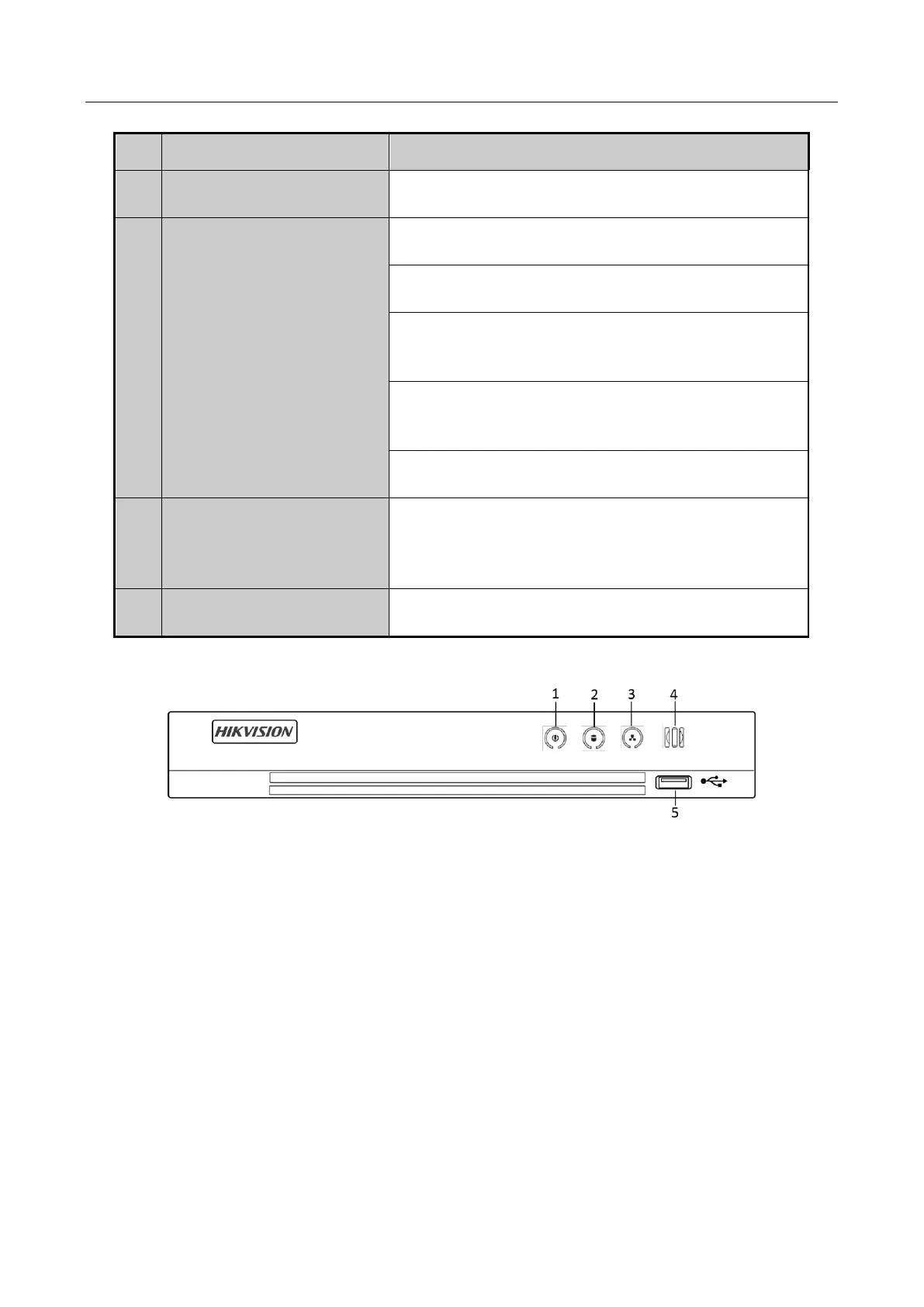

Front Panel 3:
Figure 1-3 Front Panel of Other Models

HIKVISION DS-7216HQHI-K2 Specifications

General

Ethernet LAN	Yes
Number of users	128 user(s)
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Product color	Black
Channels quantity	16 channels
Maximum frame rate	30 fps
Video capturing speed	25 fps
Audio formats supported	G.711
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
BNC input ports	16
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	2

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	380 x 320 x 48 mm
