Title:
DS-K1100 Series Card Readers Connect
to DS-K2600 Series Access Controllers
by Wiegand
Version:
v1.0
Date:
6/21/2017
Product:
Access Control Device
Page:
2 of 5

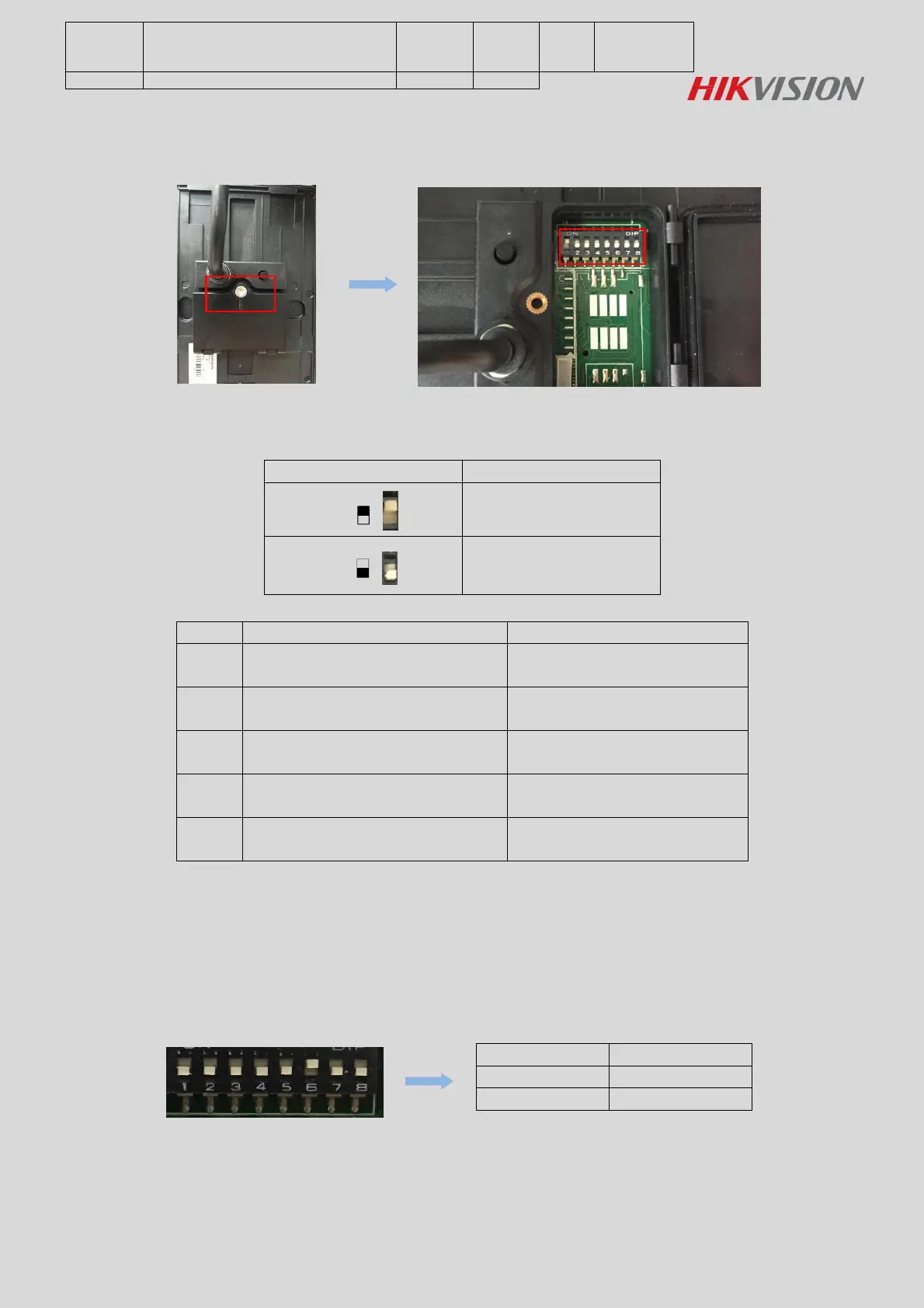

4. Please check the rear panel of card reader and unscrew it, you could find DIP switch module;
The No. of DIP switch from left to right is 1~8:
Description of DIP Switch:
Icon
Description
Represent 1 in binary mode
Represent 0 in binary mode
No.
Description
DIP Switch Status
1~4
Address of RS485
1: 1
0: 0
5
Read card No. or file in card(Reserved)
1: read file in card
0: read card No.
6
Wiegand protocol or RS-485 protocol
1: Wiegand protocol
0: RS-485 protocol.
7
Wiegand Protocol
(available when No. 6 is 1)
1: Wiegand protocol of 26-bit;
0: Wiegand protocol of 34-bit.
8
Matched Resistance(Reserved)
(available for RS-485 protocol)
1: Enable;
0: Disable.
5. We suggest customers choose RVVP cable for card reader wiring;
Step 1: DIP Switch
Please set the DIP switch firstly before connecting the card reader, please check the table below:
DIP Switch Status
Reader
0000 0100
Wiegand 34 Protocol
0000 0110
Wiegand 26 Protocol
If customers choose standard W34 protocol, the binary value of the card reader should be 0000 0100;
If customers choose standard W26 protocol, the binary value of the card reader should be 0000 0110;

Other manuals for HIKVISION DS-K1103MK

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-K1103MK and is the answer not in the manual?

HIKVISION DS-K1103MK Specifications

General IconGeneral
UN number-
Front cameraNo
RS-485 ports1
TypeBasic access control reader
CertificationFCC, CE
Product colorBlack, Grey
LED indicatorsStatus
RFID frequency13.56 MHz
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Access code readerYes
Authentication typeAccess chip/card
Keypad number of keys12
Access chip/card reader typeContactless
Contactless working distance50 mm
International Protection (IP) codeIP64
Operating temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)10 - 90 %
Input voltage12 V
Power consumption500 mA
Power consumption (typical)2 W
Weight and Dimensions IconWeight and Dimensions
Depth14.7 mm
Width76 mm
Height129 mm
Weight150 g
