HIKVISION DS-KB2411-IM User Manual

Video Door Phone·User Manual
9

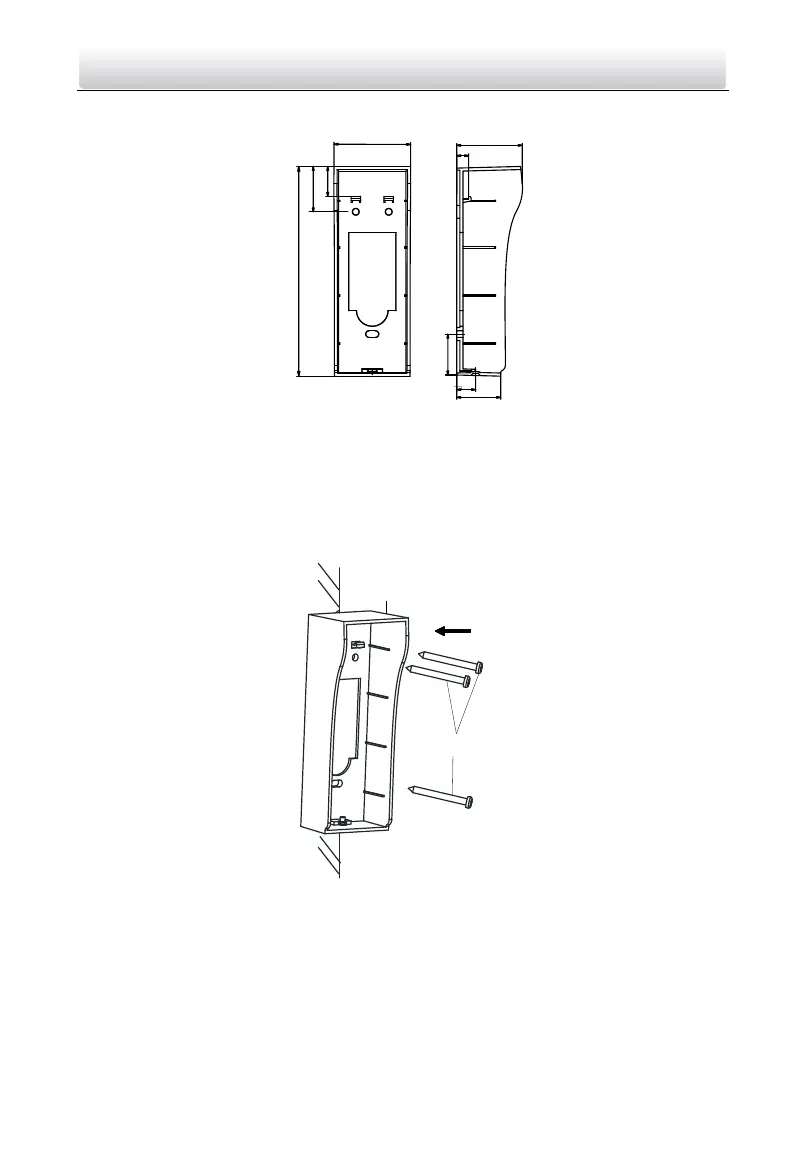

Wall Mounting Shield (Door Station)
48.83 mm
134.5 mm
29.08 mm 19.12 mm
7.6 mm
41.78 mm
26.25 mm
28.02 mm
12±0.05 mm
Figure 4-4 Wall Mounting Shield
Wall Mounting (Door Station)
You can follow the following steps to install the door station.
Steps:
1. Fix the wall mounting shield to the wall with 3 screws.
Screws
Wall Mounting Shield
Figure 4-5 Installing the Shield
2. Hook the door station to the shield tightly by inserting the hooks of shield panel into
the slots on the rear panel of the door station.

HIKVISION DS-KB2411-IM Specifications

General

Brand	HIKVISION
Model	DS-KB2411-IM
Category	Intercom System
Language	English
