QUICK DISASSEMBLY GUIDE
DP65
TABLE OF CONTENTS

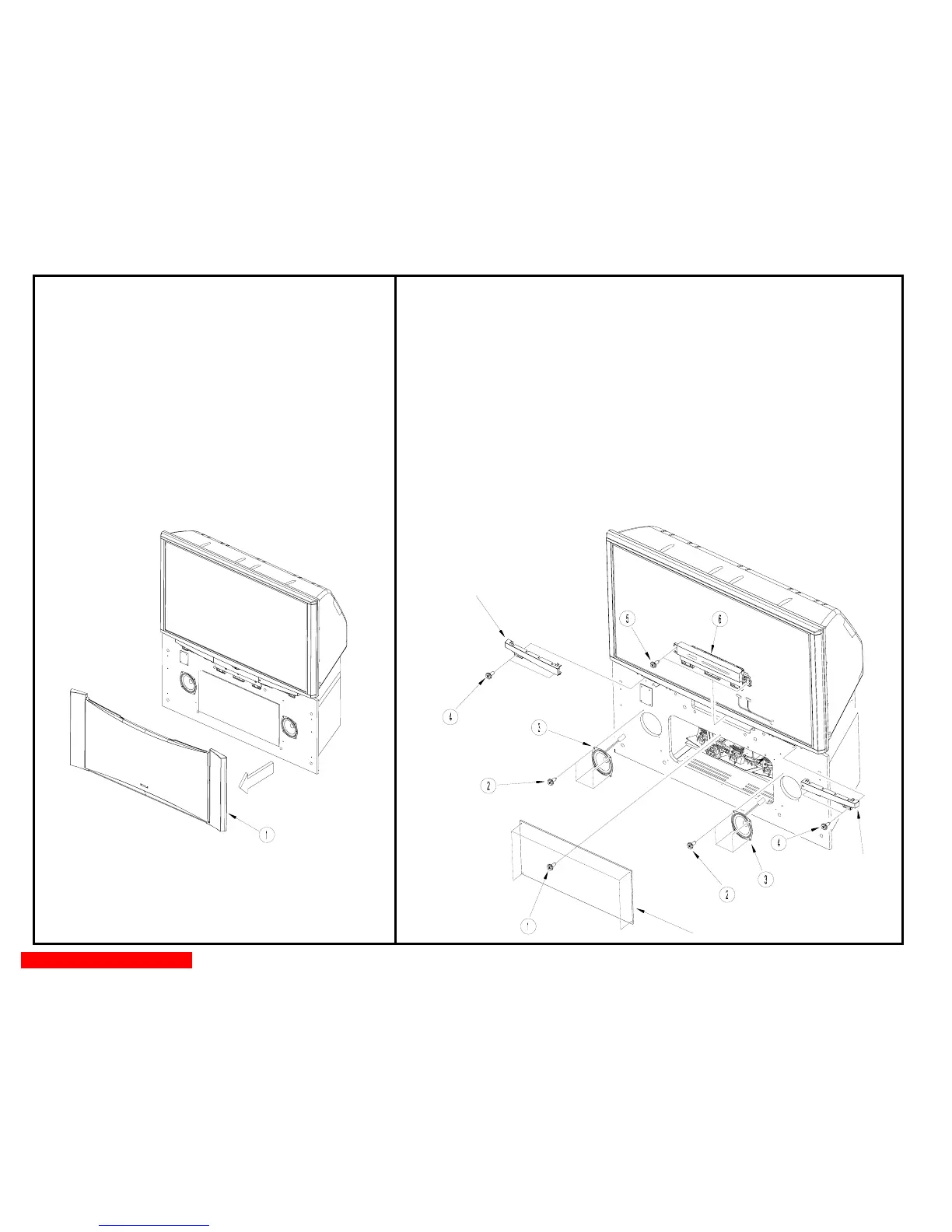

SPEAKER GRILL FRONT DOOR, SPEAKERS, DECOS, CONTROL BLOCK
① Speaker Gril 51F59/A/J P# QD53402 ① Screws T1T 4*18 P#MJ03587(6 Pcs.)
57F59/A/J P#PH33954
65F59/A/J P#PH34152 ② Screws T1T 4*14 P#MJ03588(8 Pcs.)
③ Speaker 51F59/A/J 12 cm. P#GK01371(2 Pcs.)
57/65F59/A/J 16 cm. P#GK01381(2 Pcs.)
④ Screws T1T 4*18 P#MJ03587(2 Pcs.)
⑤ Screws T1T 4*18 P#MJ03587(2 Pcs.)
⑥ Control Panel P# TBD
FRONT DOOR
DECO PANEL
DECO PANEL(ONLY 57" AND 65" MODELS)
(ONLY 57" AND 65" MODELS)
To Next Page
