6.2 Making the electrical connection to the rotor and stator
injection equipment (REG670 only)
6.2.1 Connectors for injection unit REX060, coupling capacitor unit
REX061 and shunt resistor unit REX062
6.2.1.1 Injection unit REX060
GUID-18B7451E-7F72-4C24-99E7-E72ED2F99B43 v4
1MRK002501-BA-2-PG V3 EN-US

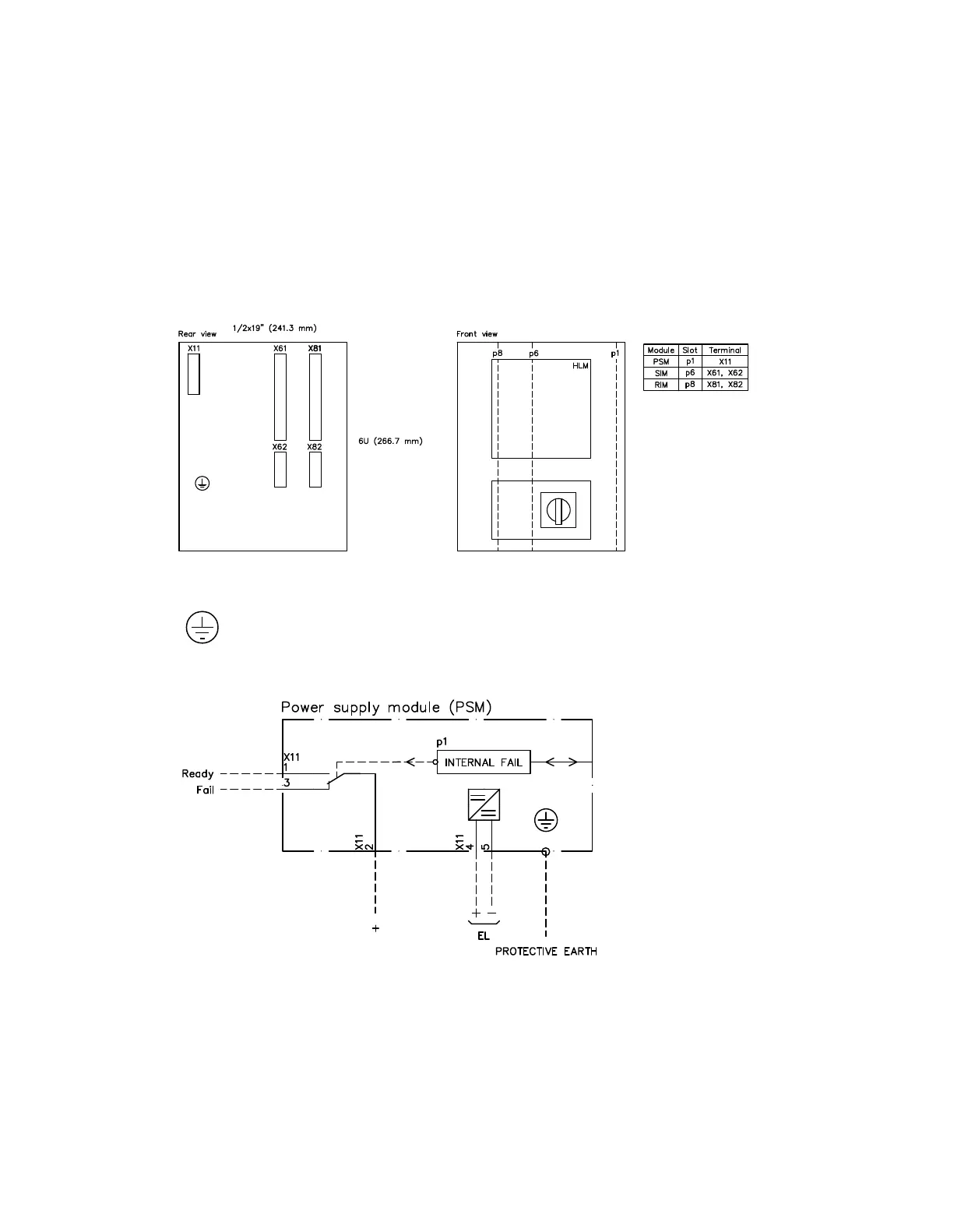

Figure 33: Designation for REX060 unit casing
Protective conductor terminal. For connection of the external protective (earth) conductor.
1MRK002501-BA-3-PG V3 EN-US
Figure 34: Power supply module
Section 6 1MRK514026-UUS Rev. P
Connecting
54 670 series
Installation manual
