Hitachi Advanced Server HA820 G2 User Guide 136
CAUTION:
When routing cables, make sure that the cables are not in a position where they can be
pinched or crimped.
9.

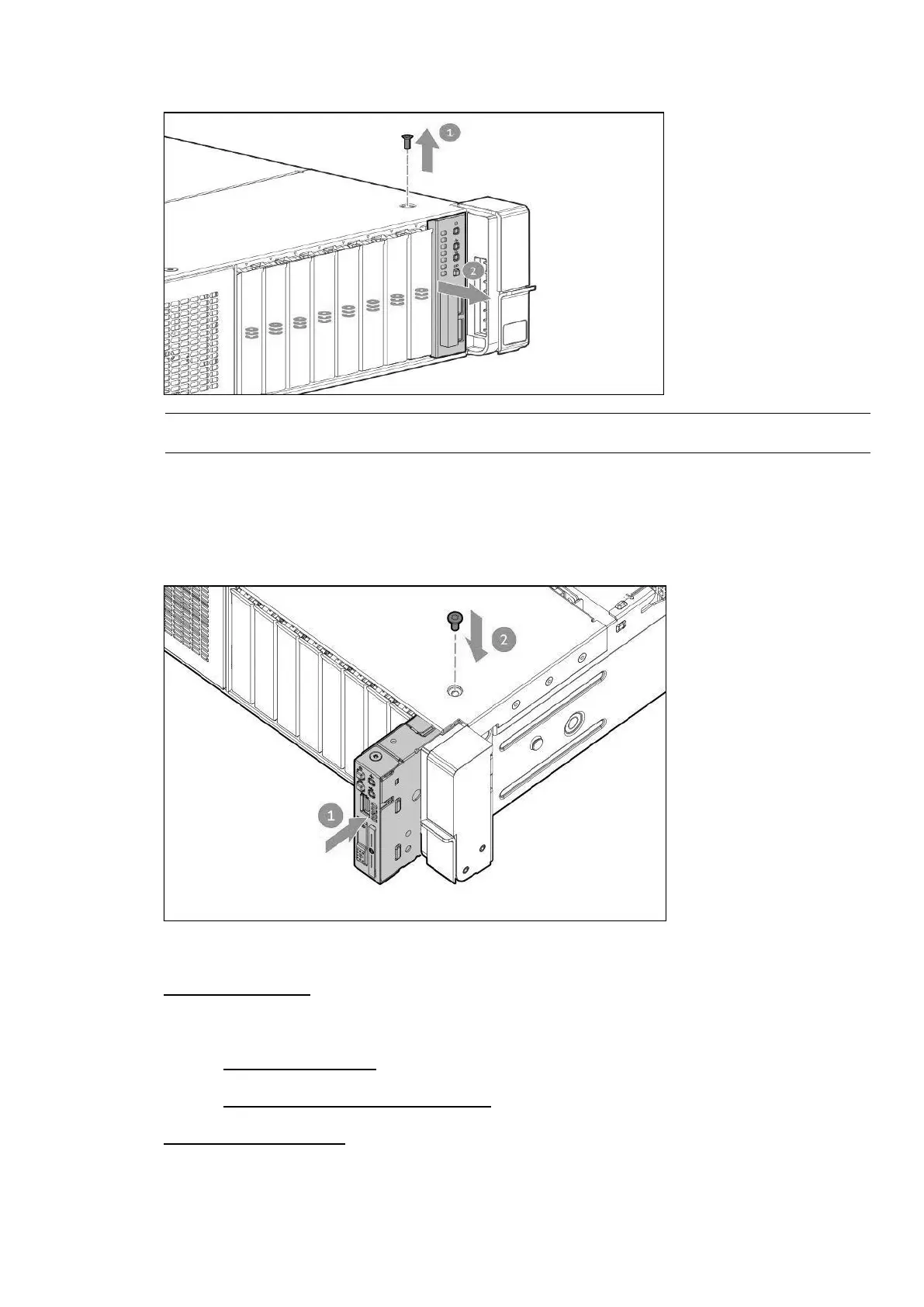

Route the SID cable through the opening in the front of the server, and then install the SID
module.
Secure the
module using the T-10 screw.
10.
Connect the SID module cable to the power switch/SID module connector.
11.
Install the fan cage.
12.
Do one of the following:
• Install the air baffle
.
• Installing the midplane or air baffle.
13.
Install the access panel
14.
Slide the server into the rack
