SPECIFICATIONS
12-6
Category
Item
ZX35U-5N
Canopy Cab
1.32mArm 1.72mArm 1.32mArm 1.72mArm
A: MaximumDiggingReach mm(ft·in) 5210(17'1") 5520(18'1") 5210(17'1") 5520(18'1")
B: MaximumDiggingDepth mm(ft·in) 3060(10') 3460(11'4") 3060(10') 3460(11'4")
C: MaximumCuttingHeight mm(ft·in) 4870(16') 4950(16'3") 4700(15'5") 4740(15'7")
D: MaximumDumpingHeight mm(ft·in) 3460(11'4") 3570(11'9") 3310(10'10") 3390(11'1")
E: OverallHeight mm(ft·in) 2480(8'2")
F: OverallLength mm(ft·in) 4640(15'3") 4760(15'7") 4640(15'3") 4760(15'7")
G: MinimumSwingRadius mm(ft·in) 2080(6'10") 2190(7'2") 2240(7'4") 2300(7'7")
H: BoomSwingPivotOffsetDistance mm(ft·in) 100(4")
I: BladeBottomHighestPosition mm(ft·in) 360(1'2")
J: BladeBottomLowestPosition mm(ft·in) 400(1'4")
K: OffsetDistance mm(ft·in) L610(2')
R735(2'5")
L610(2')
R700(2'4")
MaximumBoom-SwingAngle L72°R62°[52°] L62°R62°[52°]
f
NOTE:
The dimensions do not include the height of the shoe lug. The dimensions of the machine equipped with rubber crawlers
are shown.
L: Left R: Right
Values in the brackets [ ] are dimension of the machine equipped with the House rupture valve.

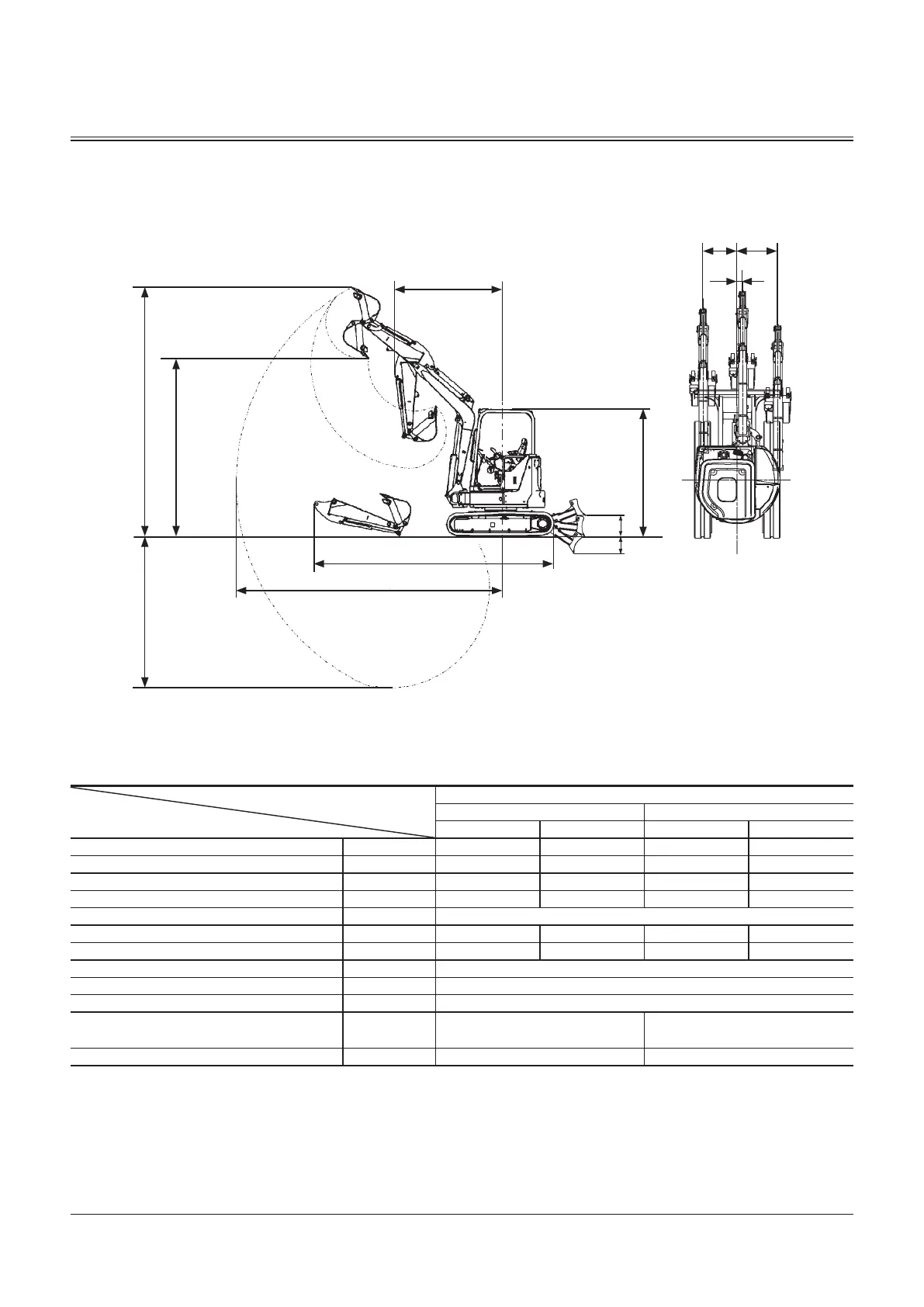

Working Ranges
ZX35U-5N
C
B
D
A
F
E
G
H
MADC-12-004
K (Left) K(Right)
I
J
