INSTALLATION
NOTE:
• This bicycle attachment is designed to be used
exclusively with the Honda crossbars, which are sold
separately.
• Do not use non-Honda accessories, carriers or
attachments with this bicycle attachment kit.
• Install the bicycle attachment after installing the cross
bars on the roof rails.
• Do not damage the roof and other finished surfaces of
the body when installing this bicycle attachment.
• If you are installing more than one bicycle attachment,
you may need to alternate the mounting positions (front
to rear) to allow for handle bar clearance and key lock
access.
• Make sure the tire adapters and the locking clamp lever
are installed on the outboard side.
Installing the Bicycle Attachment
This bicycle attachment kit is intended for installation on
the passenger’s side. If you are installing the bicycle
attachment on the driver’s side of the vehicle, continue
with steps 1 and 2. If not, go to step 3.

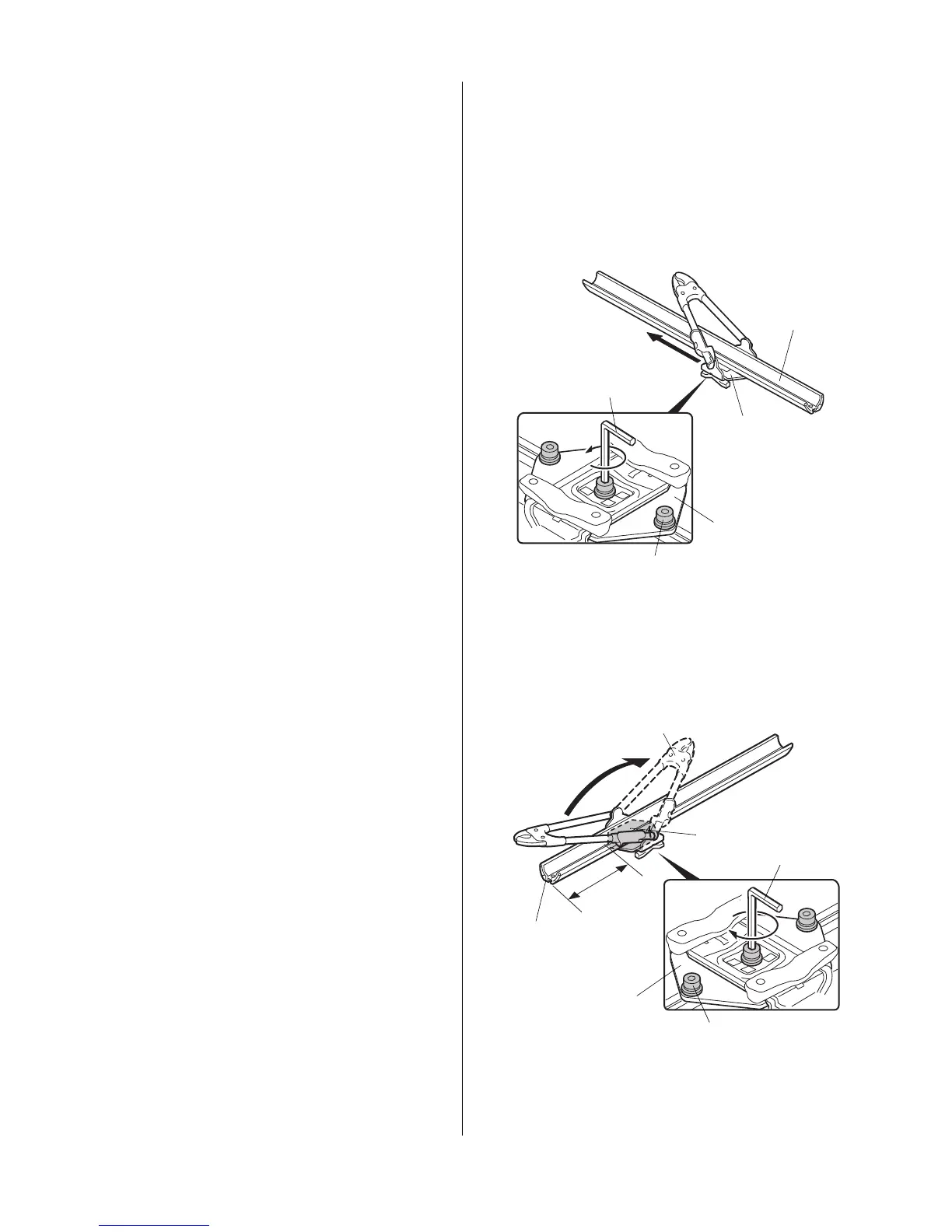

1. Loosen the three socket bolts on the bottom of the
front plate with the hex wrench included with the kit.
Slide the front plate forward as shown.
2. Set the front plate 245 mm (9.6 in.) from the end of
the bicycle attachment, and retighten the three
socket bolts on the bottom. Torque the three socket
bolts to 8 N·m (5.9 lbf·ft). Rotate the arm as shown.
BICYCLE
ATTACHMENT
HEX
WRENCH
3 SOCKET
BOLTS
Loosen.
FRONT
PLATE
FRONT
PLATE
BOTTOM
245 mm
(9.6 in.)
ARM
FRONT
PLATE
HEX
WRENCH
END OF
BICYCLE
ATTACHMENT
FRONT
PLATE
BOTTOM
3 SOCKET BOLTS
Retighten.
Torque to 8 N·m
(5.9 lbf·ft)
