Honda CRF450R 2023 User Manual

If you use a truck or motorcycle trailer to
transport your vehicle, we recommend that you
follow these guidelines:
● Use a loading ramp.
● Relieve the fuel pressure and drain the fuel
from the fuel tank into an approved petrol
container.
● Secure the vehicle in an upright position,
using motorcycle tie-down straps. Avoid
using rope, which can loosen and allow the
vehicle to fall over.

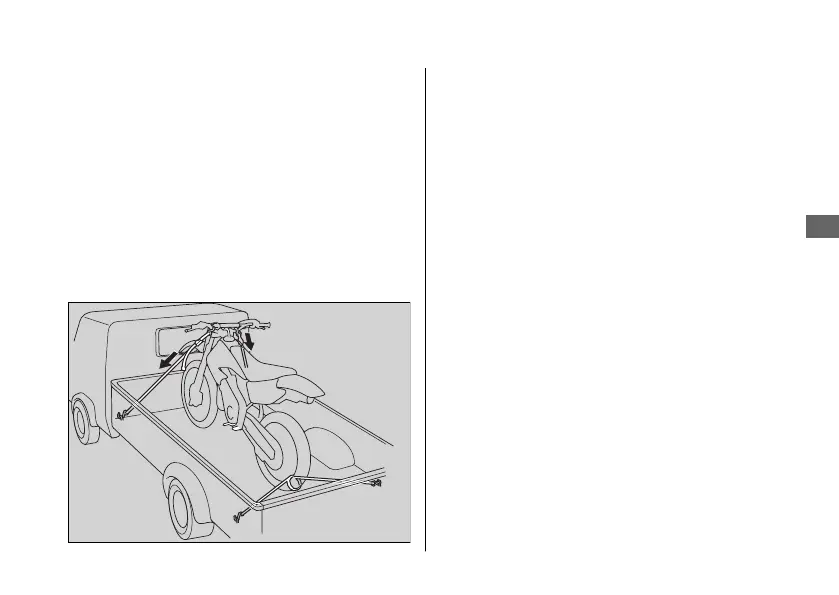

To secure your vehicle, brace the front wheel
against the front of the truck bed or trailer rail.
Attach the lower ends of two straps to the tie-
down hooks on truck bed or trailer rail. Attach
the upper ends of the straps to the handlebar
(one on the right side, the other on the left),
close to the fork.
Check that the tie-down straps do not contact
any control cables or electrical wiring.
Tighten both straps until the front suspension is
compressed about half-way. Too much pressure
is unnecessary and could damage the fork seals.
Use another tie-down strap to keep the rear of
the vehicle from moving.
We recommend that you do not transport your
vehicle on its side. This can damage the vehicle,
and leaking petrol could be a hazard.
20230714150511_42MKE6210_eng_BOOK Page 74 Friday, July 14 2023 15:07:32 JST
Transporting Your Vehicle
Information
67

Honda CRF450R 2023 Specifications

General

Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	13.5:1
Ignition	Full transistorized
Transmission	5-speed
Final Drive	#520 Chain; 13T/49T
Front Brake	Single 260mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-19
Wheelbase	58.3 inches
Seat Height	37.8 inches
Curb Weight	245 pounds
Fuel Capacity	1.7 gallons
Ground Clearance	13.2 inches
Engine Type	Single-cylinder four-stroke
Induction	Programmed Fuel Injection (PGM-FI)
Front Suspension	49mm inverted Showa fork with rebound and compression damping adjustability; 12.2 inches of travel
Rear Suspension	Pro-Link Showa single shock with rebound and compression damping adjustability; 12.4 inches of travel
