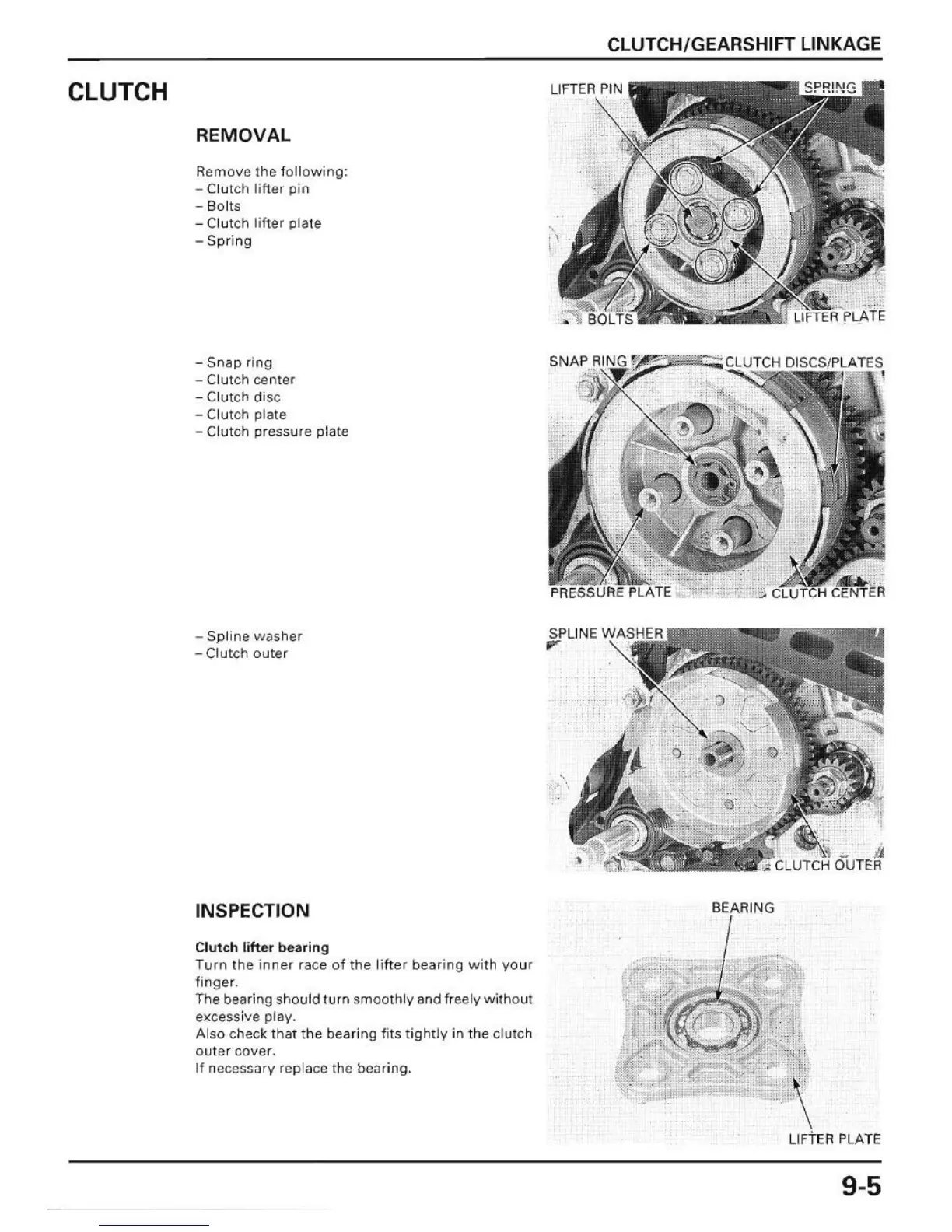

CLUTCH
REMOVAL
Remove lhe follow ing:
- Clu t ch li her pin
- Bolts
- Cl ut ch li fler plate
-Spril'lg
- Snap ri l'l g
- Clutch center
- Clutch disc
-
Clutch plate
- Clut ch pressure plate
- Spl i ne washer
- Clutch ou ter
INSPECTION
Cl utc h lifter bea ri ng
Tum the in ner ra ce of the li ft er bear i ng w ith VO l l'
finger.
The bearing
should turn smooth ly ar.d f .eely with out
excessive play.
Al so check that th e be aring fits ti ght ly in th e clutc h
oute r cover,
If necessary repl ace the bearing.
CLUTCH/GEARSHIFT LINKAGE
BEARI NG
•
, ' ./
~~~ ~~ :
LIFtER PLATE
9-5
