Commissioning of a Standalone System Setup
Ensite Pro to CIU 888 Migration Manual Part No.: 4417593_Rev09
2 - 10 CIU 888
9). CIU emulation can be configured via CIU Prime host port 2 (see

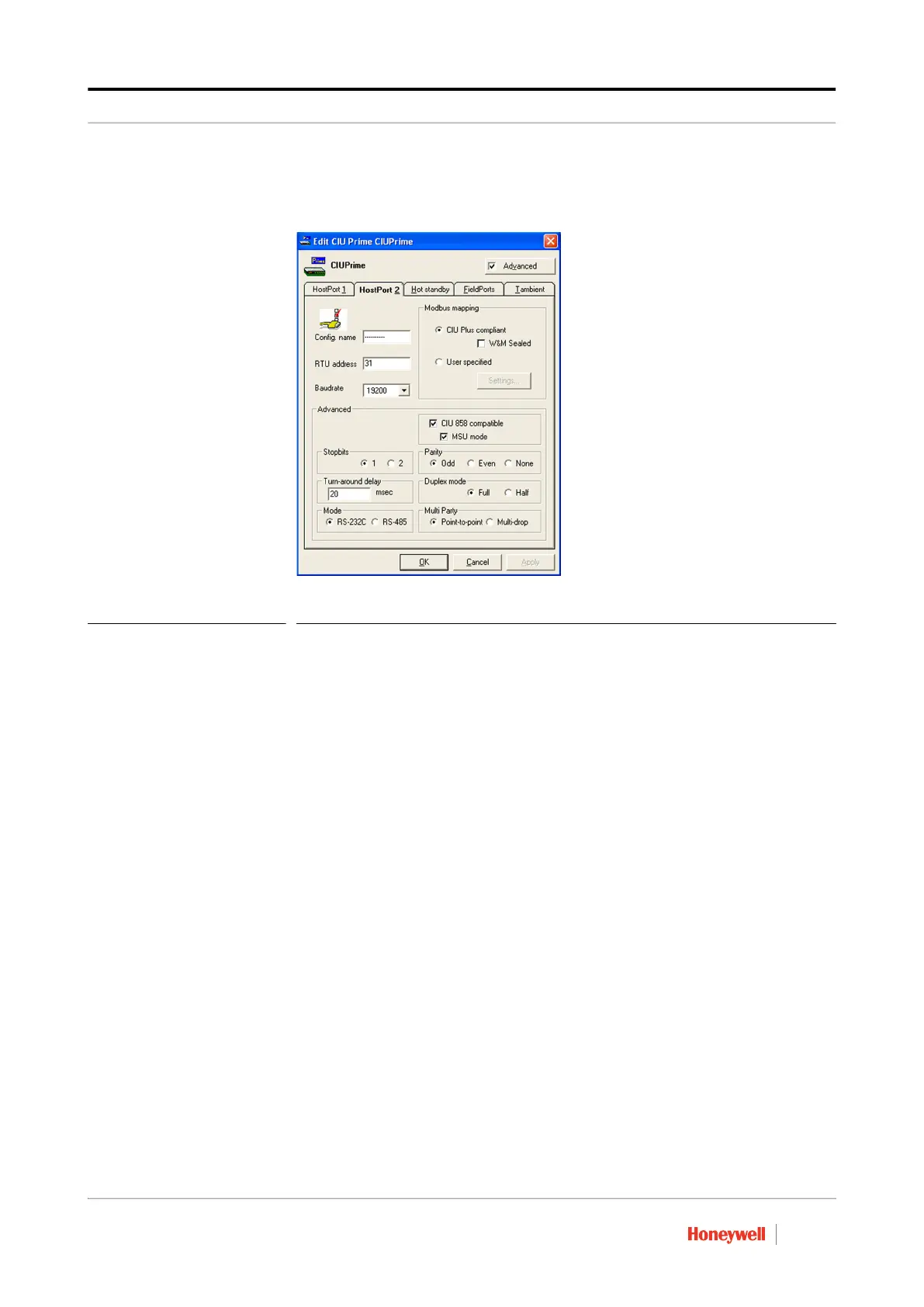

FIGURE 2-10).
FIGURE 2-10 Ensite Pro: Edit CIU Prime window - CIU emulation enabled
NOTE: Refer to the Protocol Manual - CIU Emulation (Part No. 4417589) for more
information about CIU Emulation.
2.3.3 Configuration procedure in Ensite Pro
The complete configuration procedure in Ensite Pro consists of the
following steps:
NOTE: For more details, refer to the Instruction manual Ensite Pro Configuration Tool
version 3.0 (Part No. 4416593).
1. Preparation
Before starting with creating and configuring the site, a number of
details must be known, e.g. site layout, information about field
cabling, tag names of site elements (i.e. gauges, tanks and CIUs),
tank information (tank strapping tables or tank capacity tables, roof
details, etc.), information on types of stored product, host
communication setup (if applicable).
2. Creating the site and defining the global settings
The creation of the site allows Ensite Pro to store a configuration set
with a database. The global settings are required for initiating the
configuration database. When the global settings have been defined,
Ensite Pro will create a site database.
3. Retrieving the configuration settings of the tank gauges
