F90A,B SELF-CONTAINED COMMERCIAL ELECTRONIC AIR CLEANER
68-0103-6 Revised 11-07
3
Shipping and Installation Weight:
Dimensions:
See Figs. 1 and 2.
Approvals:
Underwriters Laboratories Inc. listed: File No. E30954,
Guide No. AGGZ (120 Vac units only).
Canadian Standards Association listed: File No. LR19060
(120 Vac units only).
U.S. FCC Class B limits for RFI, Computing Devices
Rules, Canadian EMI Standard.
Replacement Parts and Accessories:
See Parts List on page 22.
24 (610)
29-1/4 (743)
29-1/4 
(743)

16 (406)
2 (51)
24
(610)
16
(406)
7/8 (22) 
DIAMETER 
KNOCKOUT

4
(102)
LATCHES
POWER
CORD
1 INCH RADIUS
7 (178)
1
M1530
ALLOW AT LEAST 9 INCHES (229 MILLIMETERS) FROM BACK
OF F90 TO WALL FOR REMOVAL OF COVER.
1
2
2
ALLOW AT LEAST 16 INCHES (406 MILLIMETERS) FROM FRONT
OF F90 TO WALL FOR INSTALLATION AND REMOVAL OF CELLS.
5-3/4 (146)

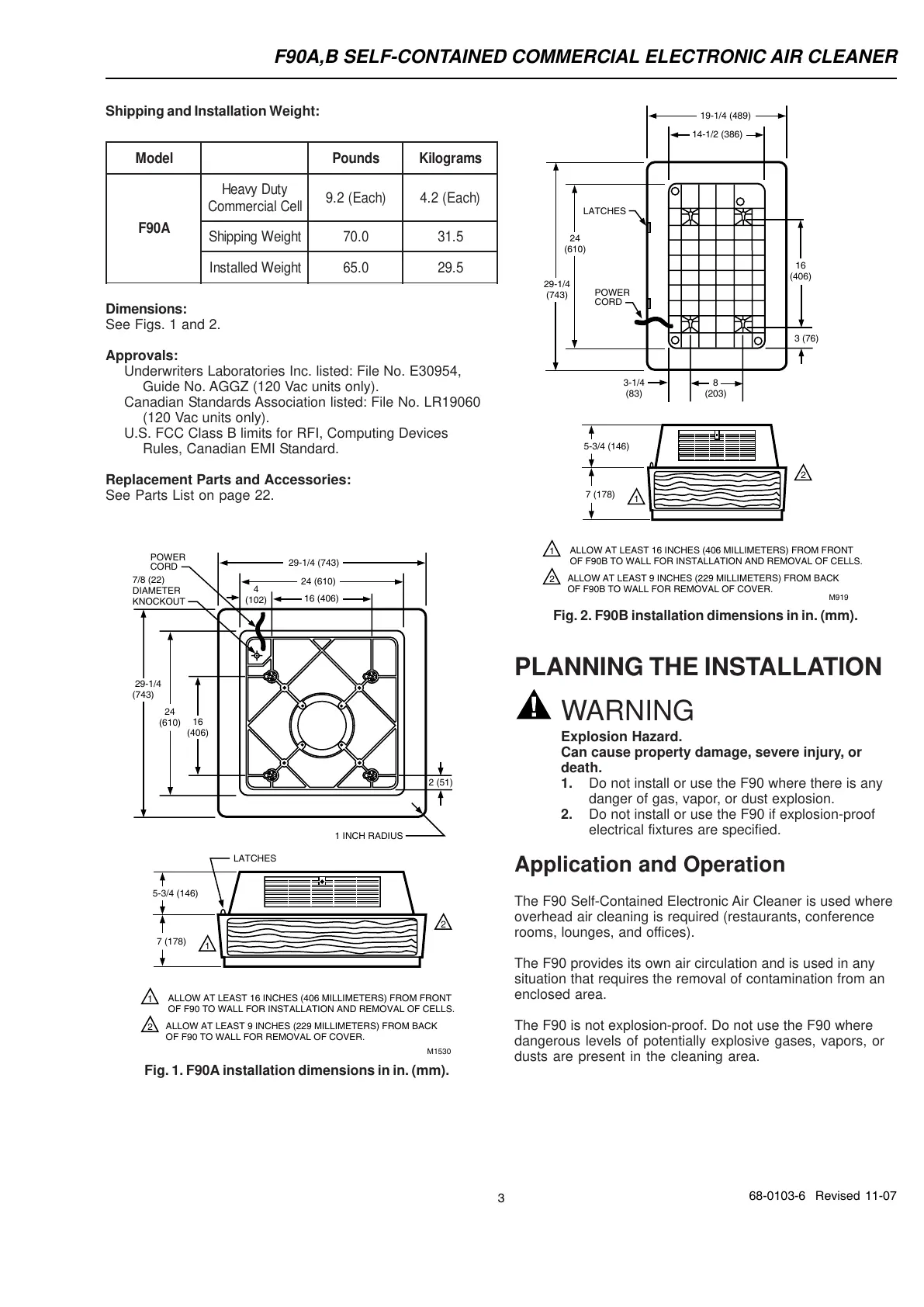

Fig. 1. F90A installation dimensions in in. (mm).
8
(203)
24
(610)
LATCHES
POWER
CORD
1
M919
ALLOW AT LEAST 9 INCHES (229 MILLIMETERS) FROM BACK
OF F90B TO WALL FOR REMOVAL OF COVER.
7 (178)
1
2
2
ALLOW AT LEAST 16 INCHES (406 MILLIMETERS) FROM FRONT
OF F90B TO WALL FOR INSTALLATION AND REMOVAL OF CELLS.
3 (76)
16
(406)
5-3/4 (146)
3-1/4
(83)
29-1/4
(743)
19-1/4 (489)
14-1/2 (386)
Fig. 2. F90B installation dimensions in in. (mm).
PLANNING THE INSTALLATION
WARNING
Explosion Hazard.
Can cause property damage, severe injury, or
death.
1. Do not install or use the F90 where there is any
danger of gas, vapor, or dust explosion.
2. Do not install or use the F90 if explosion-proof
electrical fixtures are specified.
Application and Operation
The F90 Self-Contained Electronic Air Cleaner is used where
overhead air cleaning is required (restaurants, conference
rooms, lounges, and offices).
The F90 provides its own air circulation and is used in any
situation that requires the removal of contamination from an
enclosed area.
The F90 is not explosion-proof. Do not use the F90 where
dangerous levels of potentially explosive gases, vapors, or
dusts are present in the cleaning area.
ledoMsdnuoPsmargoliK
A09F
ytuDyvaeH
lleClaicremmoC
)hcaE(2.9)hcaE(2.4
thgieWgnippihS0.075.13
thgieWdellatsnI0.565.
92
