Before You Begin
Before you begin, check that you have received all of the parts listed below. If any
parts are missing or damaged, contact your dealer immediately.
• Camera
• Installation CD
• Quick installation guide
• Allen key (L-wrench)
• Self-tapping screws (×4)
• Plastic wall anchors (×4)
• Mounting template
Required tools
• Phillips screwdriver
• Drill with appropriate bit for pre-drilling wall anchor holes
CAUTION Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your
warranty.
Preparing the Mounting Surface
1. Inspect the site where you want to install the camera. The mounting surface
must be flat and capable of supporting at least three times the weight of the
camera.
2. Remove the backing from the mounting template sticker and affix the sticker to
the mounting surface.
Note If you are using the side exit for the cable, note the orientation of the cable
exit notch. In outdoor installations the notch should point downwards to prevent
water from entering the camera housing.
3. Drill three screw holes at the locations indicated on the mounting template
sticker and insert the three supplied plastic anchors in the holes.
4. If you want to store the cables inside the wall or ceiling, drill a hole at the cable
exit position on the mounting template and then pull the cables through the
hole.
Mounting the Camera
1. Connect one end of the Ethernet cable to the RJ-45 port on the camera.
2. If the other end of the Ethernet cable is NOT connected to a PoE switch or NVR,
connect the power connector of the camera to a 12 VDC power source.
3. Attach the camera assembly to the mounting surface using the supplied screws.

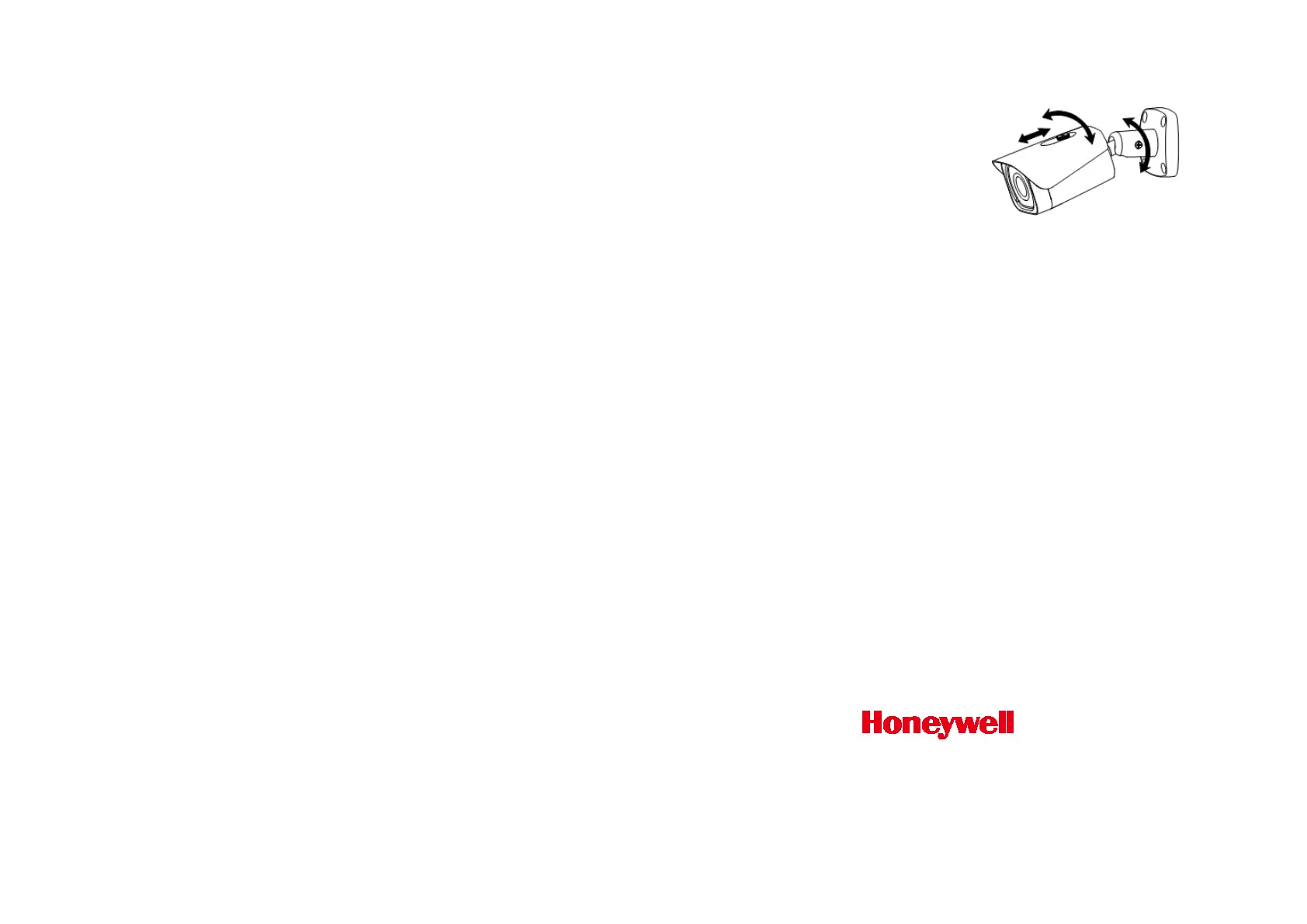

Aiming the Camera
1. Loosen the adjustment screws on the
bracket arm using the supplied Allen key.
2. Set the camera to the desired position.
3. Tighten the adjustment screws to lock the camera in place.
Logging On to the Camera
If the camera is connected to the PoE port of a Honeywell Embedded NVR, you can
log on to the camera directly from the NVR.
To log on to the camera from a PC:
1. Install the Honeywell Config Tool from the installation CD.
2. Use the Config Tool to discover the camera and open the camera’s webpage.
3. Log on to the camera as the admin user. The default user name is admin (case-
sensitive) and the default password is 1234.
Note Only Internet Explorer 11 and Firefox 46.0.1 (or later) browsers are supported.
www.honeywell.com/security
+1 800 323 4576
(North America only)
www.honeywell.com/security/uk
+1 44 (0) 1928 754 028
(Europe only)
www.asia.security.honeywell.com
+86 21 221 96888
(Asia Pacific only)
Document 800-22216 – Rev A – 06/2016
