Honeywell Voyager 1470g User Manual

Voyager XP User Guide 29
Default = Keyboard Conversion Off.
Control Character Output
This selection sends a text string instead of a control character. For example, when
the control character for a carriage return is expected, the output would display
[CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart (Code Page
1252) on page 216. Only codes 00 through 1F are converted (the first column of
the chart). Default = Off.
Note: Control + ASCII Mode overrides this mode.
Keyboard Modifiers
This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo
Mode.
Control + ASCII Mode On: The scanner sends key combinations for ASCII control
characters for values 00-1F. Windows is the preferred mode. All keyboard country
codes are supported. DOS mode is a legacy mode, and it does not support all
keyboard country codes. New users should use the Windows mode. Refer to ASCII
Conversion Chart (Code Page 1252), page 216 for CTRL+ ASCII Values.

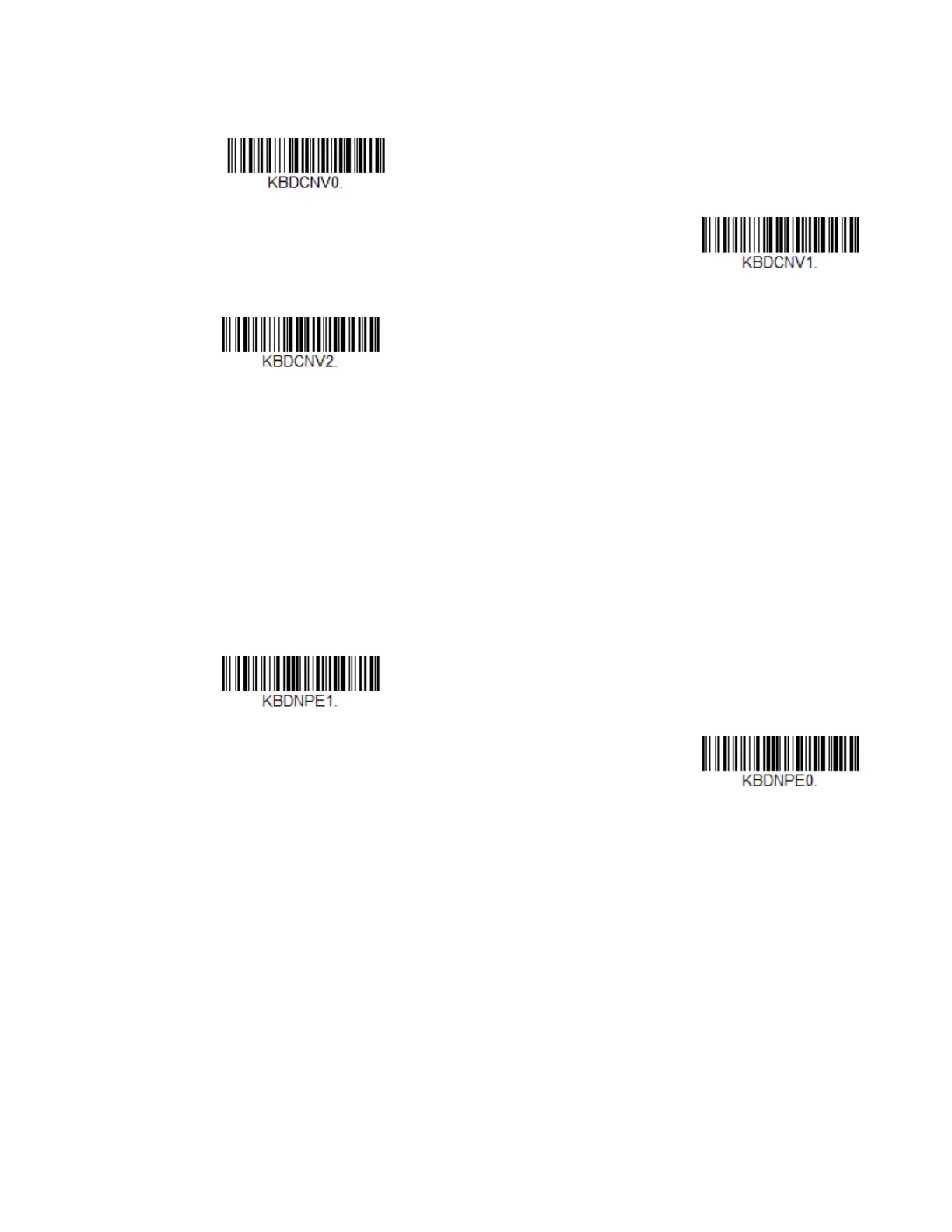

* Keyboard Conversion Off
Convert All Characters
to Upper Case
Convert All Characters
to Lower Case
Control Character Output On
* Control Character Output Off

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
