Xenon/Granit User Guide 3
2. If you are connecting a Granit scanner, make sure the cable is pushed tightly
into the scanner. Loosen the locking plate and slide it over the base of the cable
connector to lock the cable in place. Tighten the screw.
Note: The power supply must be ordered separately, if needed.
3. If you are connecting a CCB01-010BT or CCB01-010BT-BF Base, make sure
the cables are secured in the wireways in the bottom of the cordless base and
the base sits flat on a horizontal surface. If you are connecting a CCB02-100BT
or CCB05-100BT Base, see Mount a CCB02-100BT/CCB05-100BT Base on
page 9.
4. The scanner beeps.
5. Verify the scanner or cordless base operation by scanning a bar code from the
Sample Symbols, beginning on page 339.
The unit defaults to a USB PC Keyboard. Refer to page 18 for other USB terminal
settings.

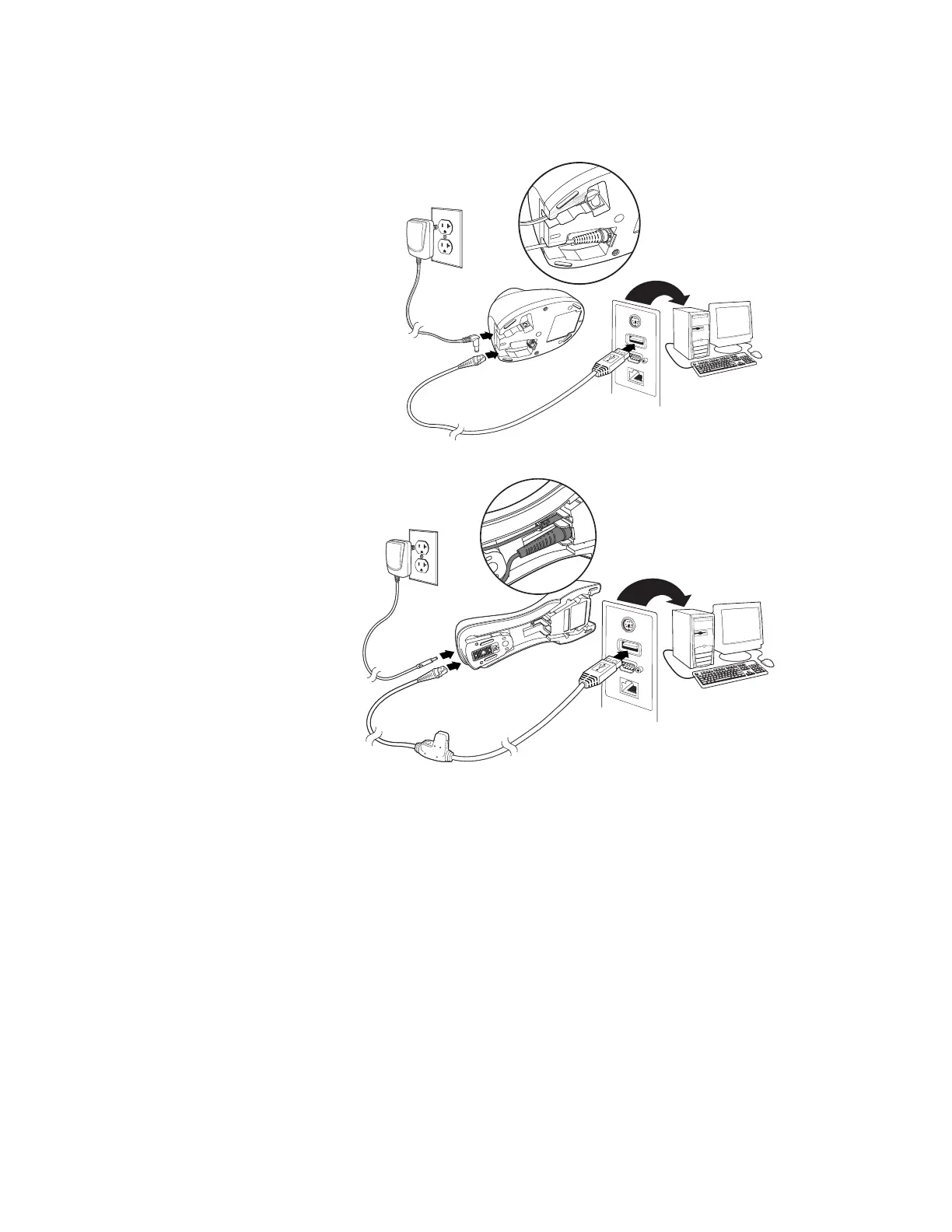

CCB01-010BT/
CCB01-010BT-BF Base
USB Connection:
CCB02-100BT/
CCB05-100BT Base
USB Connection:
