HP 8656 Series User Manual

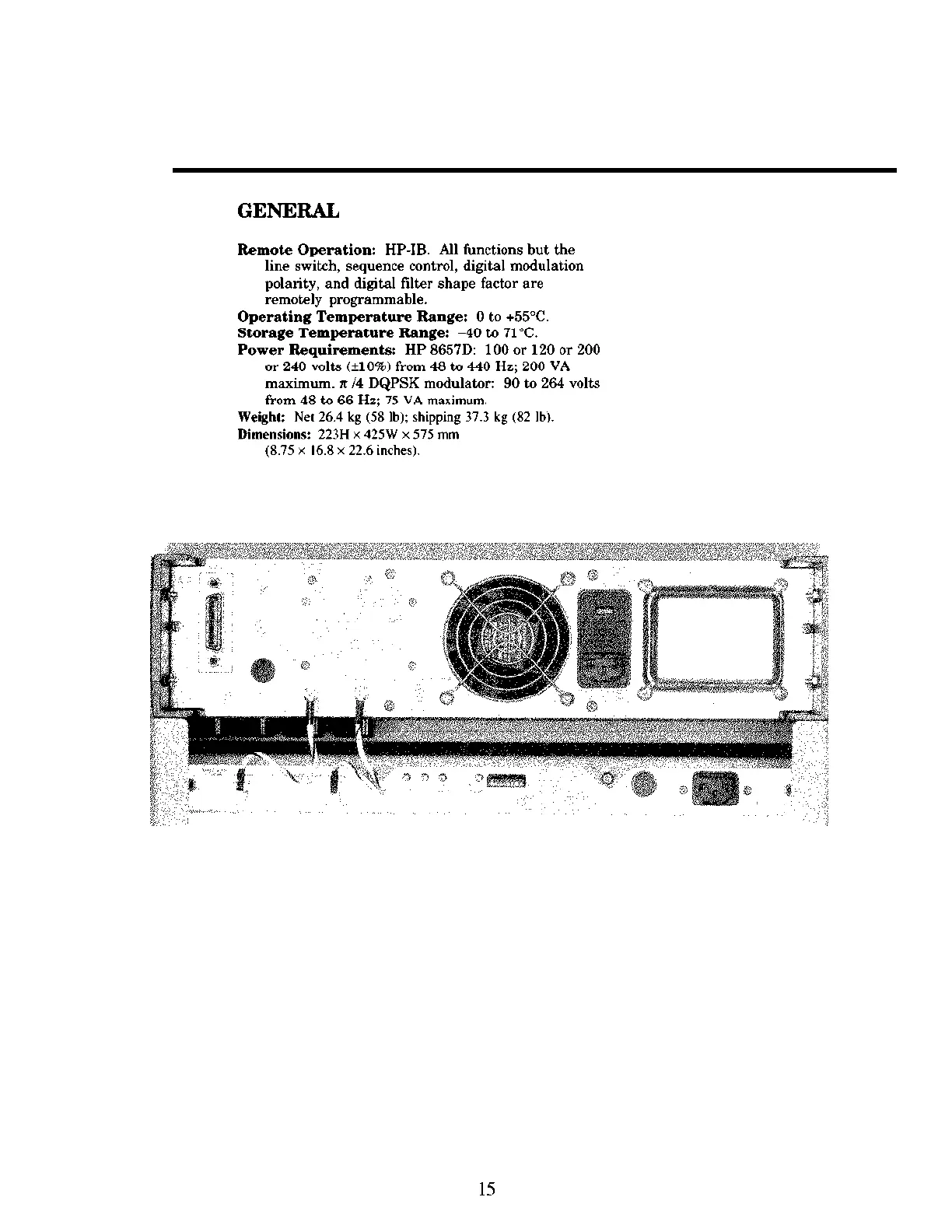

GENERAL
Remote Operation: HP-IB. All functions but the
line switch, sequence control, digital modulation
polarity, and digihl filter shape factor are
remotely programmable.
Operating Temperature Range: 0 to +55"C.
Storage Temperature Range: -40 ta 71 "C.
Power Requirements: HP 8657D: 100 or 120 or 200
or 240 volts (&lo%) from 48 to 440 Hz; 200 VA
maximum. lr /4 DQPSK modulator: 90 to 264 volts
from 48 to 66 Hz; 75 VA maximum.
Weight: Net 26.4 kg (58 lb); shipping 37.3 kg (82 Ibl.
Dimensions: 223H x 425W x 575 mm
(8.75 x 16.8 x 22.6 inches).

HP 8656 Series Specifications

General

Brand	HP
Model	8656 Series
Category	Portable Generator
Language	English
