HP Compaq 615 Quickspecs

1. ExpressCard/34 slot 5. Battery charging LED indicator
2. Three USB 2.0 ports 6. VGA/external monitor connector
3. RJ-45/Ethernet port 7. Optional RJ-11/modem port
4. Power connector 8. Kensington Lock slot

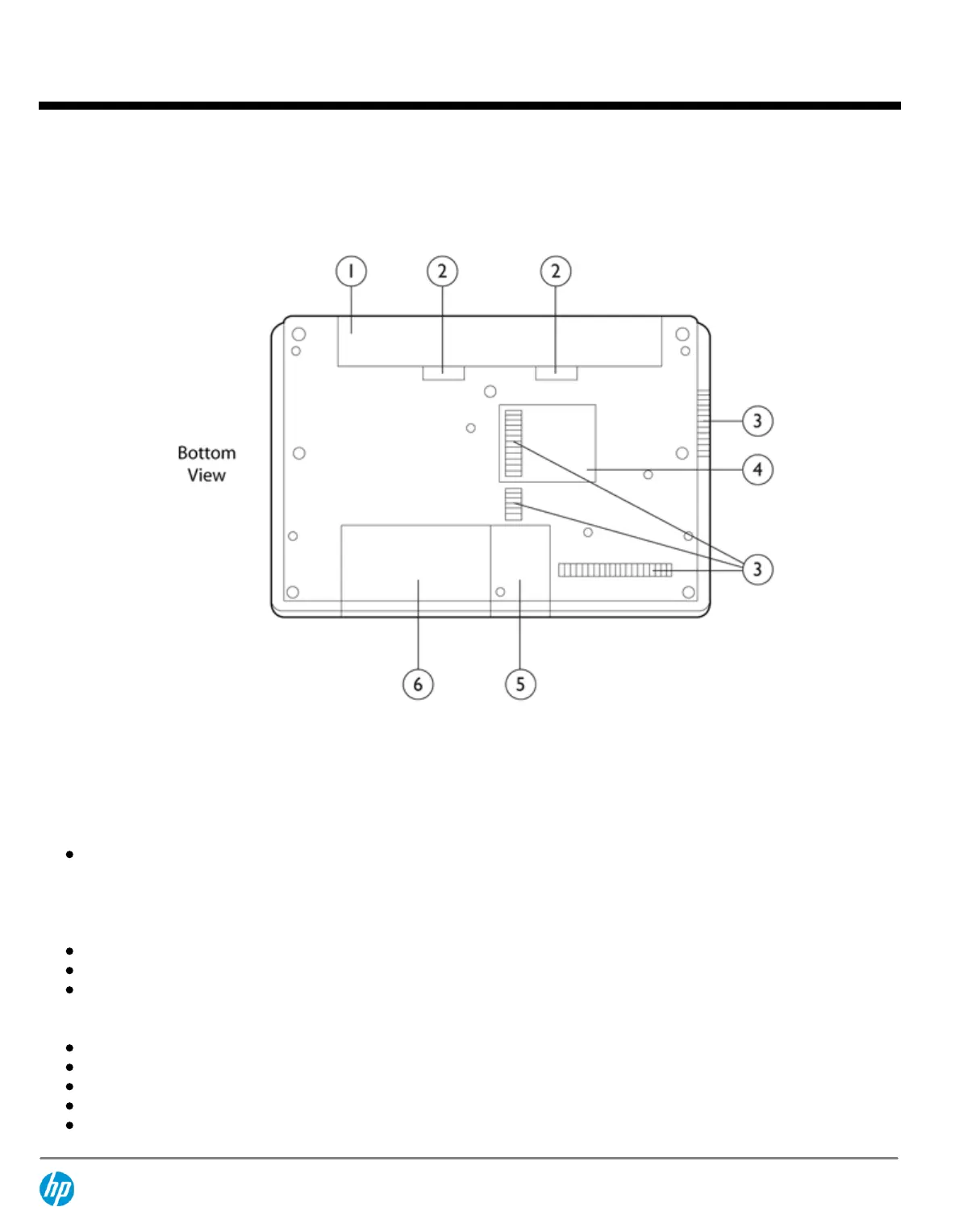

1. Battery bay 4. Memory module compartment
2. Battery release latches 5. WLAN module compartment
3. Vents 6. Hard drive bay
At A Glance
Genuine Windows Vista Business 32
Genuine Windows Vista Home Basic 32
Genuine Windows Vista Home Premium 32
Genuine Windows Vista Business with downgrade to Windows XP Professional custom installed
FreeDOS
Available with AMD Turion™ X2 Dual-Core Mobile Processor or AMD Athlon™ X2 Dual-Core Processor for Notebook PCs
Sleek industrial design starting at 5.5 lb/2.49 kg and 1.26 inch/32.0 mm thin at front
Widescreen 15.6-inch diagonal LED-backlit HD BrightView display with 16:9 aspect ratio, Widescreen 15.6-inch diagonal LED-
backlit HD display with 16:9 aspect ratio for configurations with Vista Business and Vista Business with downgrade to Windows
XP Professional
Supports up to 8 GB of DDR2 SDRAM
160/320GB 5400 rpm SATA hard drive with DriveGuard
ATI Radeon HD 3200 integrated graphics
Integrated 802.11 b/g wireless LAN module **
Bluetooth® 2.1 **
QuickSpecs
Compaq 615 Notebook PC
Overview
DA - 13302 EMEA — Version 7 — January 7, 2010 Page 2

HP Compaq 615 Specifications

General

Graphics	ATI Radeon HD 3200 Graphics
Processor	AMD Athlon X2 Dual-Core Processor
RAM	Up to 8 GB DDR2
Storage	160 GB to 320 GB 5400 rpm SATA
Display	15.6-inch, 1366x768 resolution
Operating System	Windows Vista Business, Windows Vista Home Basic
Battery	6-cell Lithium-Ion
Chipset	AMD M780G
Memory	DDR2 800MHz
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g/n
Audio	High Definition Audio support
Ports	3 USB 2.0, VGA, RJ-45, headphone, microphone
Card Reader	5-in-1 (SD, MMC, MS, MS Pro, xD)
Webcam	2 MP Webcam (optional)
Weight	2.49 kg (5.5 lbs)
