HP Compaq dc5700 MT Supplementary Guide

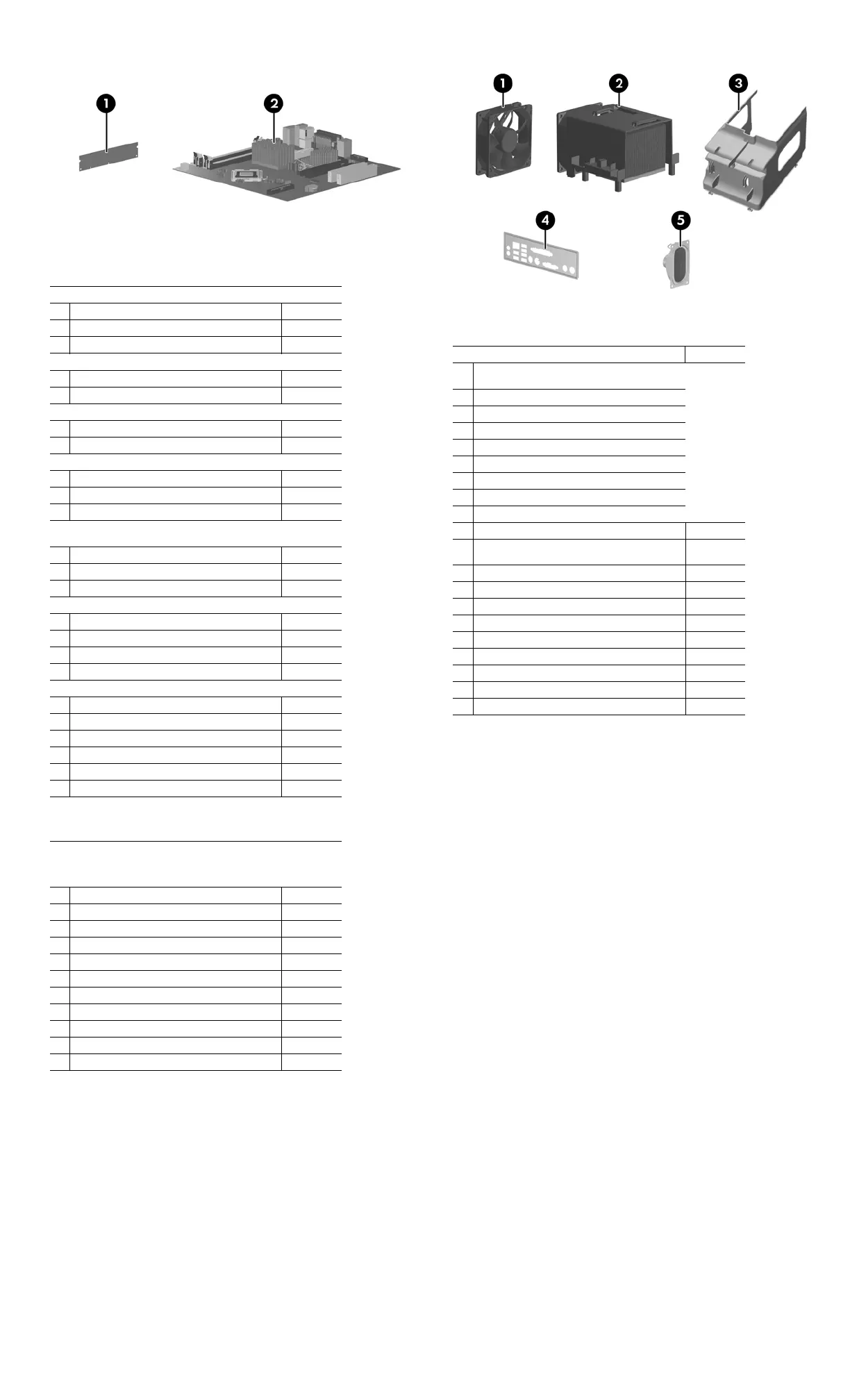

dc5700 Illustrated Parts & Service Map, MT Chassis 439125-002 page 2
Standard and Optional Boards
Memory modules
1 256 MB, PC2-5300, CL5
396519-001
* 512 MB, PC2-5300, CL5
396520-001
* 1 GB, PC2-5300, CL5
398038-001
System Boards with thermal grease, alcohol pad, and CPU socket cover
2 Standard board 404794-001
* Board without embedded security (EMEA only) 434369-001
Intel Celeron D Processors with alcohol pad and thermal grease
* #352, 512K cache, 3.2 GHz, D-0, 533 MHz FSB 433891-001
* #360, 512K cache, 3.46 GHz, D-0, 533 MHz FSB 434758-001
Intel Pentium 4 HT Processors with alcohol pad and thermal grease
* #524, 1 MB cache, 3.06 GHz, 533 MHz FSB 412985-001
* #531, 1 MB cache, 3.0 GHz, 800 MHz FSB 394642-001
* #541, 1 MB cache, 3.2 GHz, 800 MHz FSB 394812-001
Intel Pentium Core 2 Duo Processors with alcohol pad and thermal
grease
* #925, 2x2 MB cache, 3.0 GHz, 800 MHz FSB 433510-001
* #940, 2x4 MB cache, 3.2 GHz, 800 MHz FSB 430031-001
* #945, 2x2 MB cache, 3.4 GHz, 800 MHz FSB 433890-001
Intel Core 2 Duo Processors with alcohol pad and thermal grease
* #E6300, 2x2 MB cache, 1.86 GHz, 1066 FSB 418947-001
* #E6400, 2x2 MB cache, 2.13 GHz, 1066 FSB 418948-001
* #E6600, 2x4 MB cache, 2.4 GHz, 1066 FSB 418949-001
* #E6700, 2x4 MB cache, 2.67 GHz, 1066 FSB 418950-001
Other boards
* Nvidia NVS280 PCI graphics, 64 MB, FH 398686-001
* Nvidia Quadro NVS55, PCI graphics, 64 MB, FH 406412-001
* DVI-D ADD2 graphics, FH 398333-001
* Intel, Gigabit NIC, FH 398754-001
* Agere International 56K Modem, FH 398661-001
* DVI-I to VGA graphics adapter 202997-005
* Not shown
LP = Low profile
FH = Full height
Mass Storage Devices (not illustrated)
Diskette drive with bezel 431452-001
Media card reader, 3.5-in 407187-001
Media card reader, 5.25-in 412838-001
52X SATA CD-ROM drive (APJ only) 419469-001
16X SATA DVD-ROM drive 419496-001
48X SATA CD-ROM drive 419635-001
16X SATA DVDRW L drive with LightScribe 419498-001
16x/48x Combo drive 419497-001
80-GB\7200 RPM SATA hard drive, 8MB cache 432392-001
160-GB\7200 RPM SATA hard drive, 8MB cache 432393-001
250-GB\7200 RPM SATA hard drive, 8MB cache 432394-001
Miscellaneous Parts
Miscellaneous screw kit, includes: 414180-001
* #6-32 x .250 hitop screw with serrations
(192308-001)(14 ea)
* (192308-002) (4 ea)
* (192308-003) (6 ea)
* (106902-001) (2 ea)
* (334248-001) (4 ea)
* (247481-001) (8 ea)
* (247348-001) (8 ea)
* (368224-002) (2 ea)
* (101517-067) (12 ea)
1 Chassis fan 432863-001
2 Heatsink with alcohol pad, factory-applied thermal
grease, and heatsink shroud
432874-001
3 Fan duct 433123-001
4 Rear I/O panel 435526-001
*Mouse, PS2, scroll type 390937-001
*Mouse, USB, scroll type 390939-001
* Mouse, PS2, optical 417966-001
* Mouse, USB, optical 390938-001
* Battery, real-time clock 153099-001
5* Internal speaker 430129-001
* Second serial port, FH 392414-001
*Not shown
LP = Low profile
FH = Full height

HP Compaq dc5700 MT Specifications

General

Brand	HP
Model	Compaq dc5700 MT
Category	Desktop
Language	English
