HP ElitePad 1000 G2 Disassembly Instructions

2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description
Tool Size (if
applicable)
Description #1 screw driver
Philip #0
Description #2 service fixture
Description #3
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Remove bumper ring sub assy.
2. Remove Battery cable,EDP FPC & T/S FPC
3. Remove Powe Board assy, Audio Board Assy and Power FPC
4. Remove Battery Pack
5. Remove Remove Docking support bracket
6. Remove Speaker module
7. Remove WWAN module & GPS module
8. Remove WLAN module
9. Remove MB Assy
10. Remove WLAN Antenna & WWAN Main/Aux Antenna
11. divide Power Board assy (remove 1st Mic,8M camera ,Volume board)
12. divide MB assy (remove Docking FPC, 2nd Mic, 2M CAMERA)
13.
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

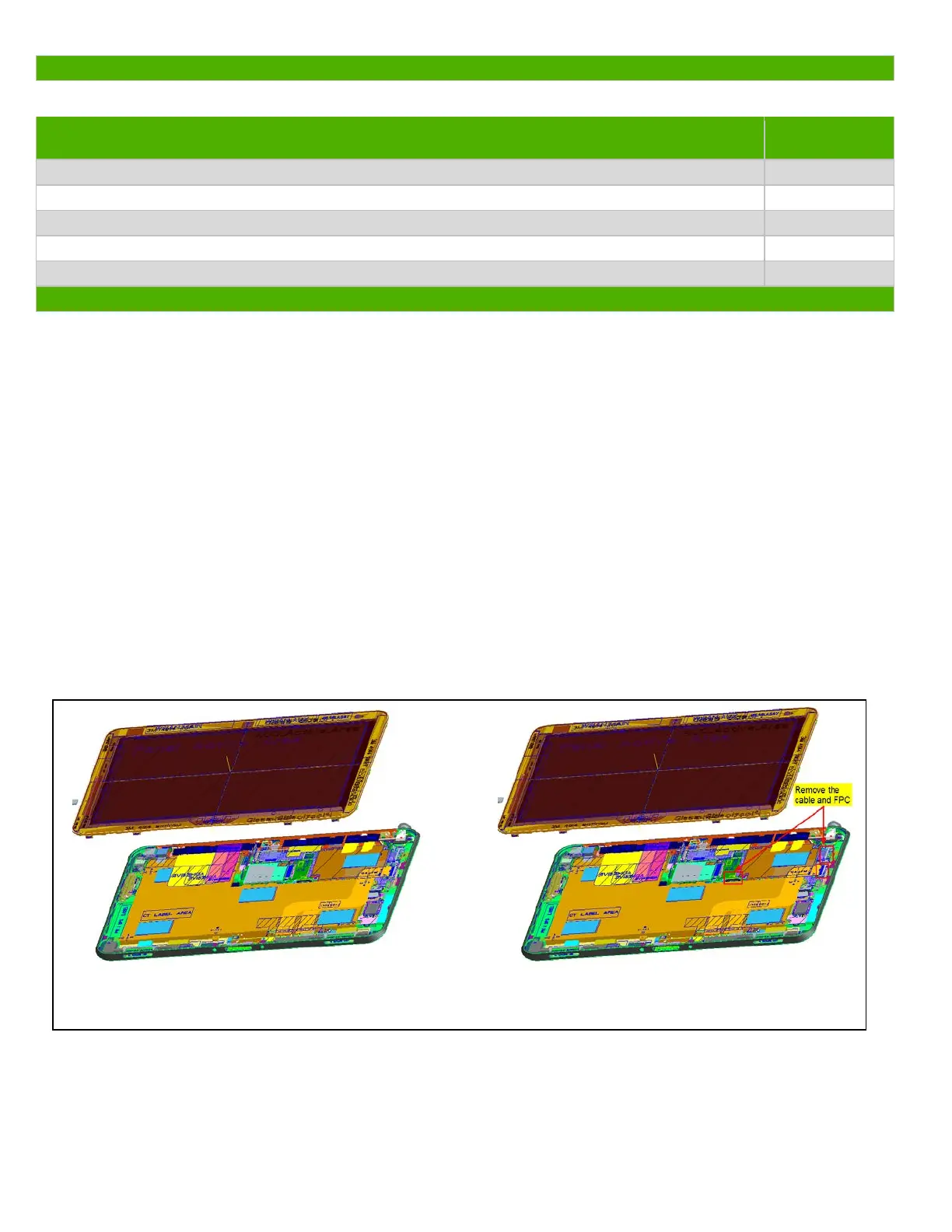

Step 1 Remove bumper ring sub assy Step2 Remove Battery cable, EDP FPC & TS FPC
EL-MF877-00 Page 2
Template Revision A

HP ElitePad 1000 G2 Specifications

General

Stepping	C0
Processor code	SR1SK
Processor cache	2 MB
Processor cores	4
System bus rate	- GT/s
Processor family	Intel Atom®
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
Processor frequency	1.59 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor package size	17 x 17 mm
Conflict-Free processor	Yes
Processor front side bus	- MHz
Processor boost frequency	2.39 GHz
Processor operating modes	32-bit, 64-bit
Graphics & IMC lithography	22 nm
Scenario Design Power (SDP)	2 W
Device type	Tablet PC
Form factor	Slate
Product color	Silver
Internal memory	4 GB
Memory clock speed	1067 MHz
Internal memory type	LPDDR3-SDRAM
Storage media	SSD
Card reader integrated	No
Compatible memory cards	Not supported
Internal storage capacity	64 GB
Display diagonal	10.1 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Graphics card	HD Graphics
Rear camera type	Single camera
Rear camera resolution (numeric)	8 MP
Front camera resolution (numeric)	2.1 MP
Battery capacity	30 Wh
Battery life (max)	13 h
Number of battery cells	2
Audio system	DTS Sound+
AC adapter power	10 W
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Platform	Windows
Bundled software	Buy Office PDF Complete Corporate Edition HP Mobile Connect HP Wireless Hotspot (models with WLAN) HP ePrint HP Manageability HP PageLift HP Support Assistant HP SoftPaq Download Manager Kindle Box (50 GB offer)
Operating system version	-
Operating system installed	Windows 8.1 Pro
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Country of origin	China
Processor ARK ID	80267
Processor socket	BGA 1380

Weight and Dimensions

Depth	178 mm
Width	261 mm
Height	9.2 mm
Weight	680 g
