HP ENVY 14 Maintenance And Service Guide

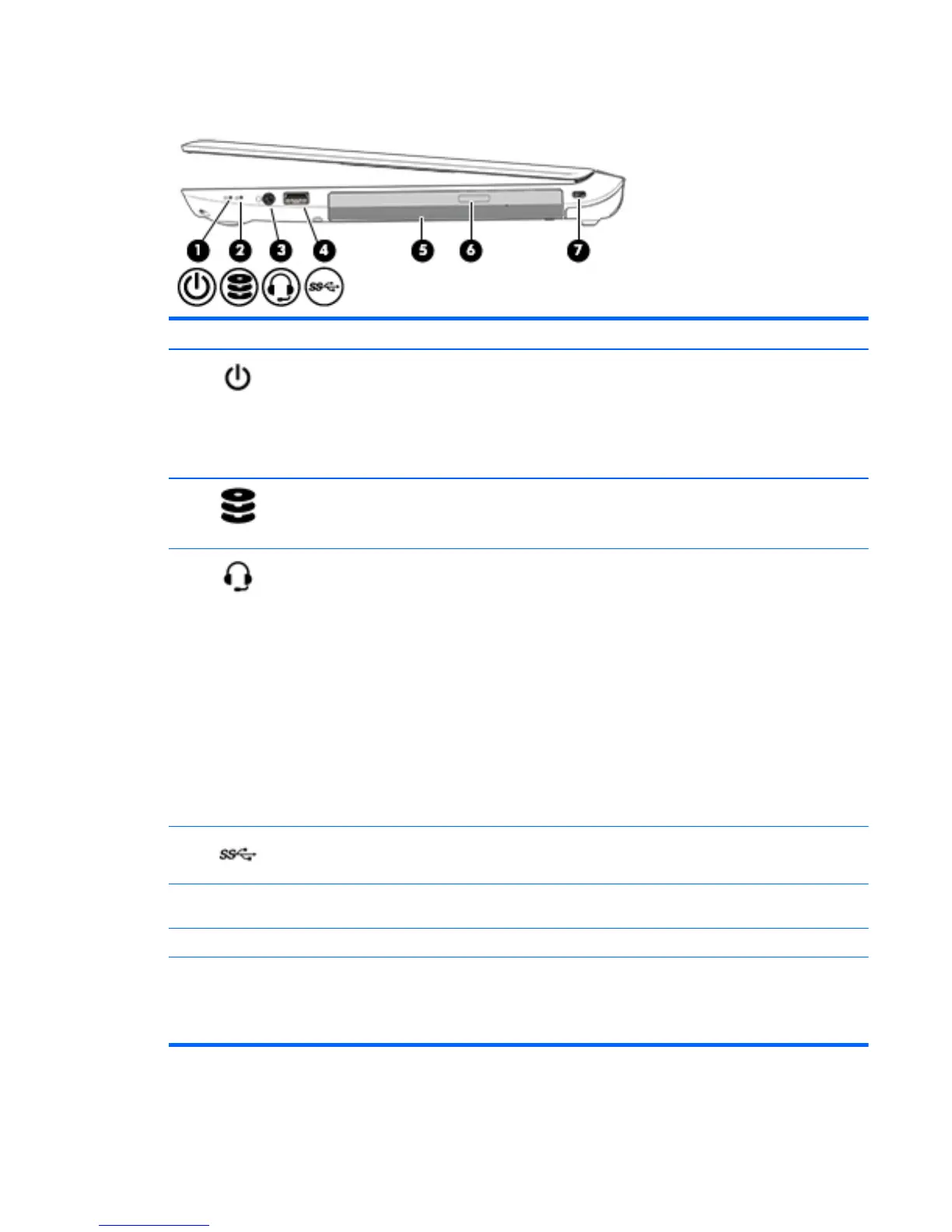

Right side
Component Description
(1)
Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a power-
saving state. The computer shuts off power to the display
and other unneeded components.
●
Off: The computer is off or in Hibernation. Hibernation is a
power-saving state that uses the least amount of power.
(2)
Hard drive light
●
Blinking white: The hard drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the hard
drive.
(3)
Audio-out (headphone)/Audio-in (microphone)
jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also connects an
optional headset microphone. This jack does not support
optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset.
For additional safety information, refer to the Regulatory,
Safety, and Environmental Notices. To access this guide, from
the Start screen, type support, and then select the HP
Support Assistant app.
NOTE: When a device is connected to the jack, the computer
speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and audio-
in (microphone).
(4)
USB 3.0 port Connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
(5) Optical drive Depending on your computer model, reads an optical disc or
reads and writes to an optical disc.
(6) Optical drive eject button Releases the disc tray.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
Right side 5

HP ENVY 14 Specifications

General

Bus type	DMI
Stepping	C2
Tjunction	105 °C
Processor cache	3 MB
Processor cores	2
System bus rate	2.5 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-500 Mobile Series
Processor socket	BGA 956
Processor threads	4
Processor codename	Arrandale
Processing Die size	81 mm²
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	2.93 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x16
Thermal Design Power (TDP)	35 W
CPU multiplier (bus/core ratio)	18
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
Motherboard chipset	Intel® HM55 Express
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Total storage capacity	500 GB
Compatible memory cards	MMC, SD
Display diagonal	14.5 \
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Memory slots	2x SO-DIMM
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	2 x 2 GB
Discrete graphics card model	AMD Radeon HD 5650
Maximum graphics card memory	2.714 GB
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	766 MHz
Type	PC
Power supply type	AC
Wireless technology	Wi-Fi
Graphics card family	AMD
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Operating system installed	Windows 7 Home Premium
Sustainability certificates	ENERGY STAR
AC adapter power	90 W
Number of battery cells	8
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
Cable lock slot type	Kensington
Product color	Black
Country of origin	China
Pointing device	Touchpad
Processor ARK ID	47341
Processor package size	rPGA 37.5x 37.5, BGA 34x28 mm
Graphics & IMC lithography	45 nm
Supported instruction sets	SSE4.1/4.2
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	36 bit

Weight and Dimensions

Depth	237 mm
Width	356 mm
Weight	2380 g
Height (rear)	28.2 mm
Height (front)	27.7 mm
