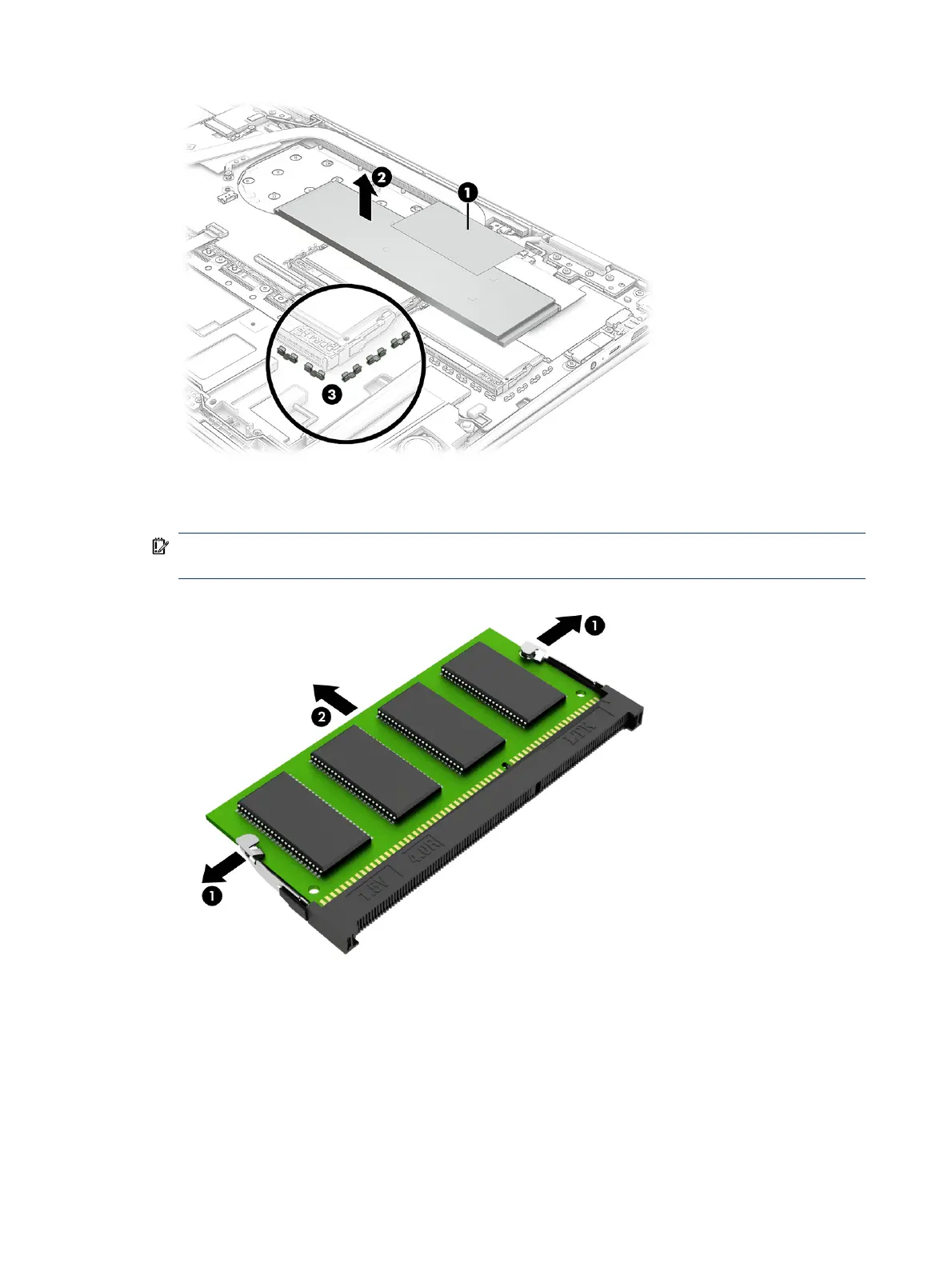

3. Spread the two retention clips outward (1) until the memory module tilts up at a 45° angle, and then
remove the module (2). Use the same procedure to remove all memory modules.
IMPORTANT: To prevent damage to the memory module, hold the memory module by the edges only. Do
not touch the components on the memory module.
To protect a memory module after removal, place it in an electrostatic-safe container.
Reverse this procedure to install the memory module.
WLAN module
To remove the WLAN module, use this procedure and illustration.
36
Chapter 5 Removal and replacement procedures for authorized service provider parts
