HP OMEN 25 Disassembly Instructions

EL-MF877-00 Page 2
Template Revision B
PSG instructions for this template are available at EL-MF877-01
refractory ceramic fibers
Components, parts and materials containing
radioactive substances
2.0 Tools Required
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description
Tool Size (if
applicable)
Cross Screw driver
Ph2/Ph0
Disassembly Tool / Slotted Screwdriver
Description #3
Description #4
Description #5
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Take out the monitor and external cable from carton then put them onto the desk, separate stand from monitor as
picture.
2. Use hand and a tool to separate back cover assy from monitor as below picture，but pay attention to avoid the LVDS
cable and Lightbar cable.
3. Use hand take out the cable management and unlock the screw Fixed base and arm then separated the base as
follow picture.
4. Unlock 4 screws and pull out the Audio board and Keypad cable then separated the chassis assy form the back cover
assy
5. Unlock 2 screws fixed Keypad and Bucket then the keypad is separated
6. Pull out all cables except the LVDS and unlock 4 screws fixed Main board and chassis then separate the Mainboard.
7. Unlock 4 screws fixed the hinge and chassis ,take out the small mylar then separate the hinge
8.
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

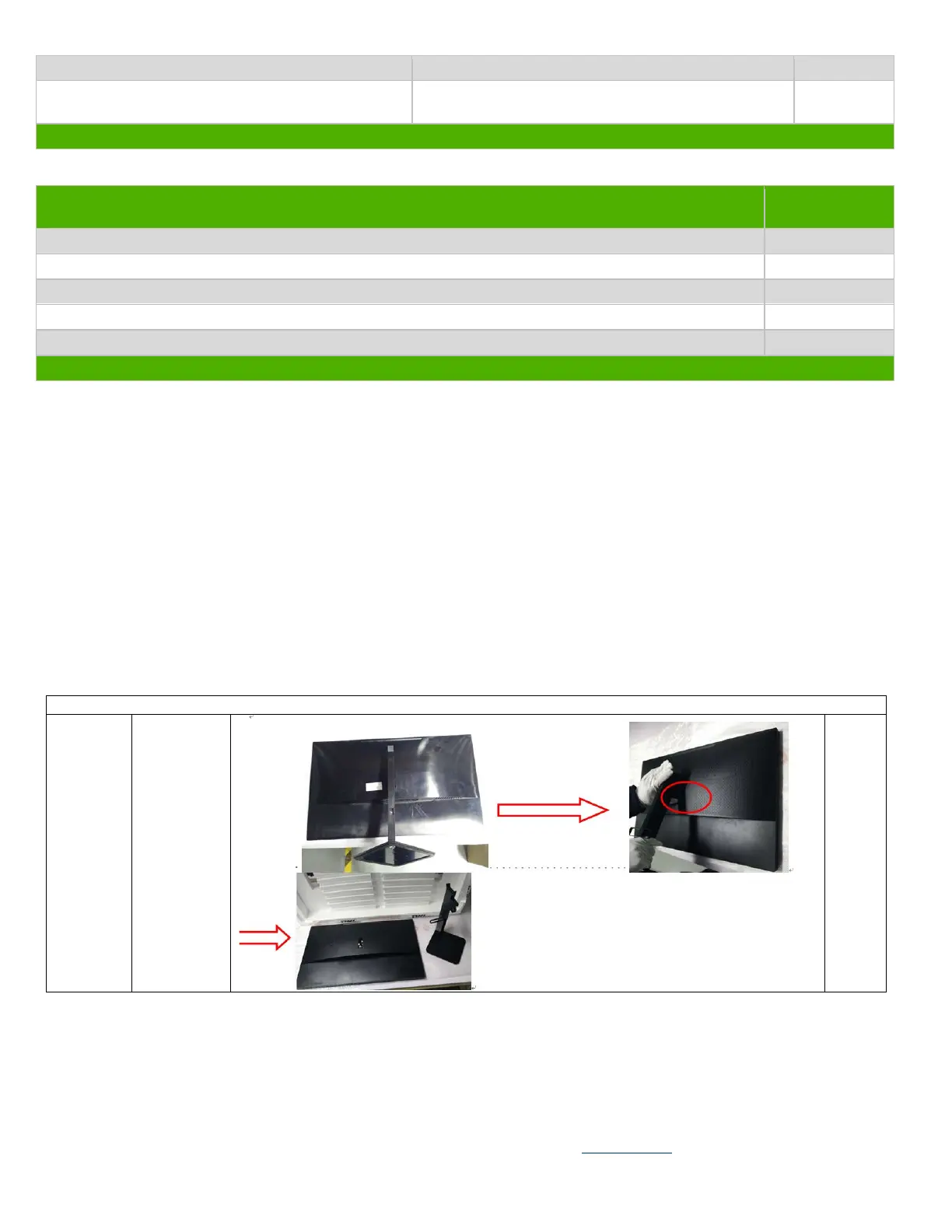

Below action which may easily damage product .please notice it
Take out
the
monitor
and
external
cable from
carton
then put
them onto
the desk,
separate
stand from
monitor as
picture.
N/A

HP OMEN 25 Specifications

General

3D	No
Panel type	TN
Pixel pitch	0.283 x 0.283 mm
Screen shape	Flat
Display diagonal	24.5 \
Display technology	LED
Native aspect ratio	16:9
Viewable size, vertical	302.6 mm
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	543.7 mm
Display brightness (typical)	400 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Certification	CE; ICES; VCCI; FCC; C-Tick; CB; TUV-GS; ISO-9241-307; cTUVus; TUV LBL; CCC; CEL; BSMI; KCC; Australia MEPS; E-standby; PSB; ISC; Microsoft WHQL Certification (Windows 10, Windows 8.1 and Windows 7); SmartWay Transport Partnership - NA only
Product color	Black
Country of origin	China
Market positioning	Gaming
VESA mounting	-
Tilt angle range	-5 - 23 °
USB hub version	3.2 Gen 1 (3.1 Gen 1)
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	3
HP segment	Home
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	40 W
Annual energy consumption	35.3 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 70 %
Cables included	AC, HDMI, DisplayPort, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	227.5 mm
Width (with stand)	569 mm
Height (with stand)	407.9 mm
Weight (with stand)	4600 g
Depth (without stand)	62.8 mm
Height (without stand)	346.2 mm
Weight (without stand)	3550 g
