USB 2 connector CN106

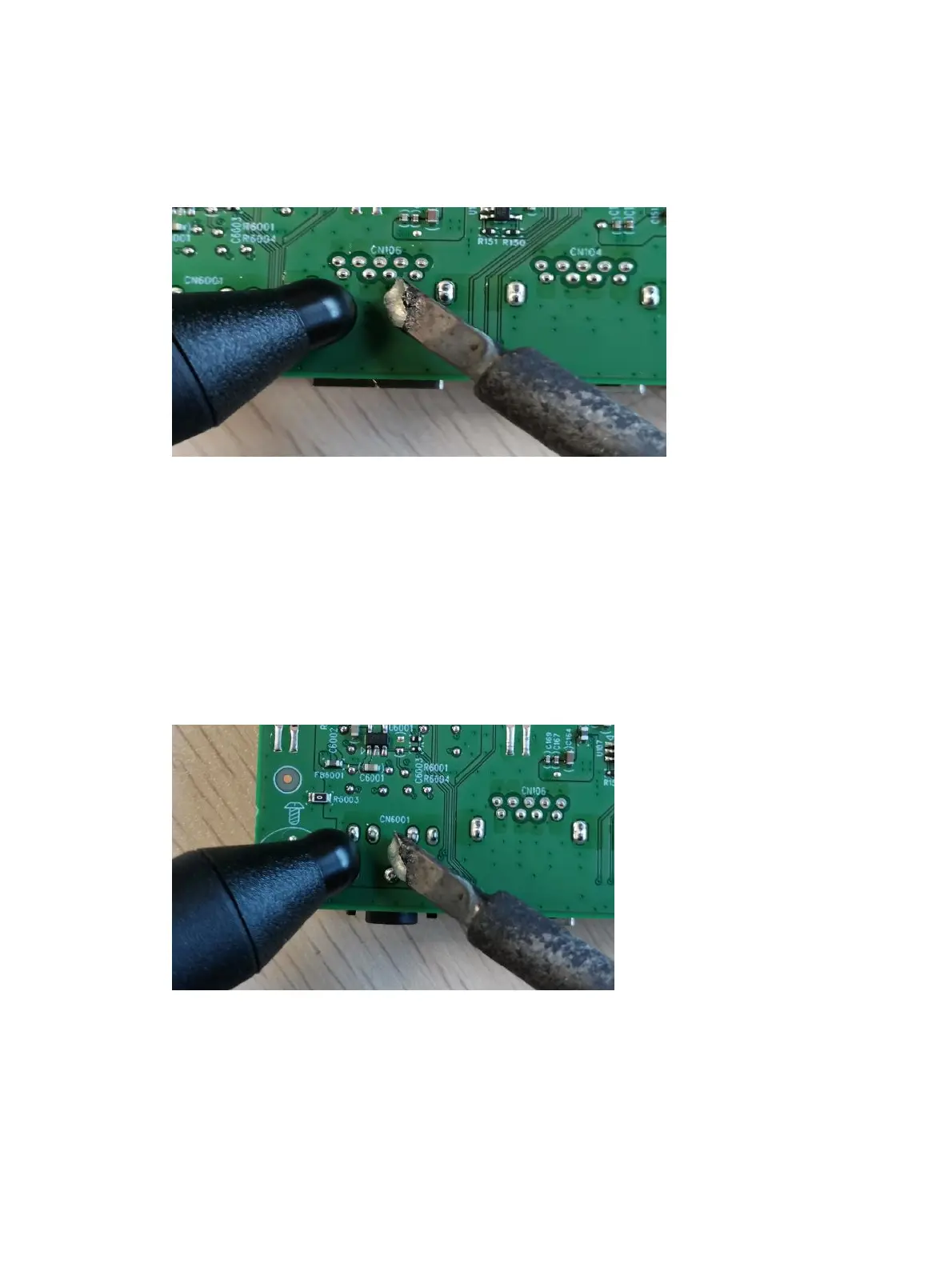

Repair the USB 2 connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the USB 2 connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
Phone Jack connector CN6001
Repair the Phone Jack connector:
1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the audio connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
