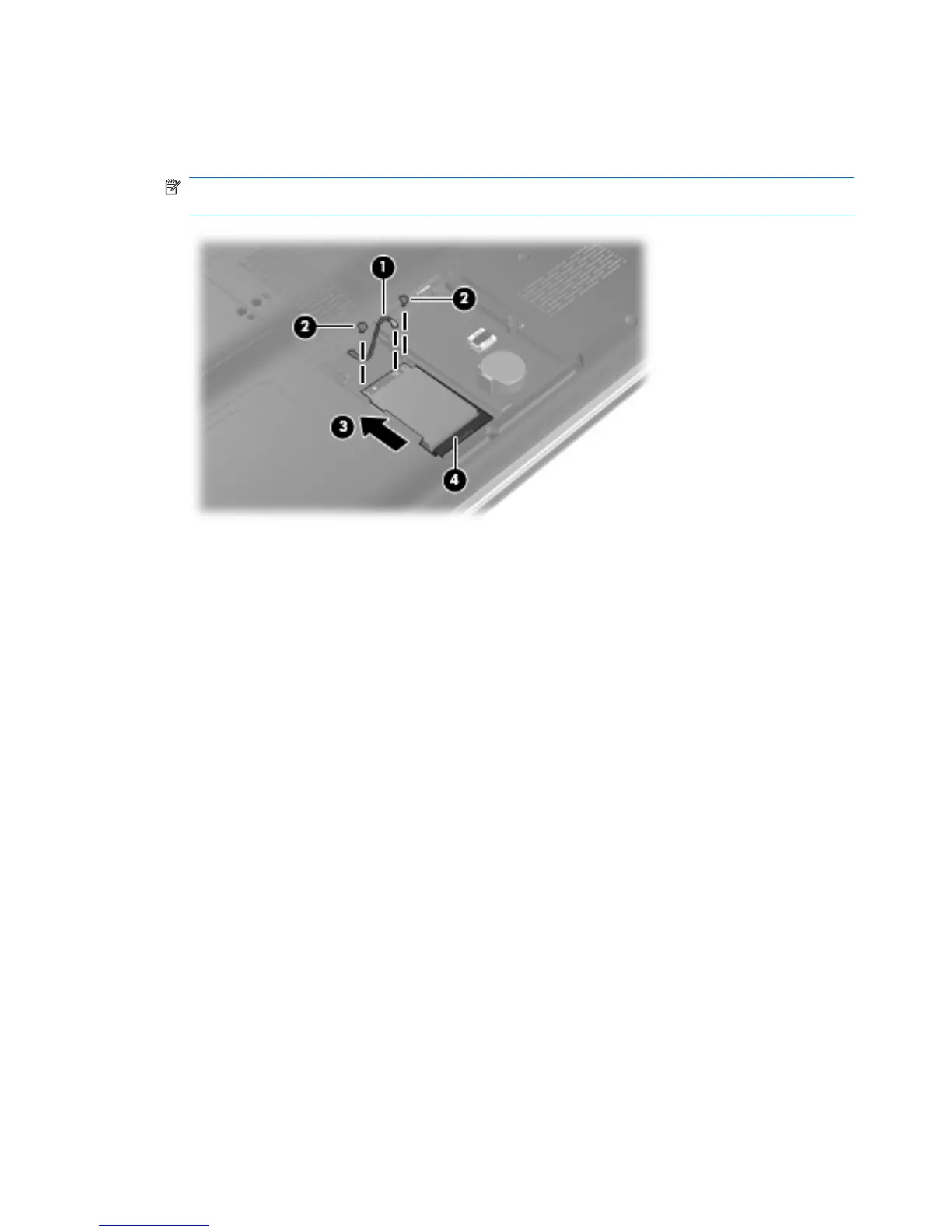

5. Remove the two Phillips PM2.0×4.0 screws (2) that secure the TV tuner module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
6. Remove the TV tuner module (3) by pulling the module away from the slot at an angle.
NOTE: The TV tuner module is designed with a notch (4) to prevent incorrect insertion into the
TV tuner module slot.
Reverse this procedure to install the TV tuner module.
58 Chapter 4 Removal and replacement procedures
