2-25
Installing the Switch
Sample Network Topologies
Installing the Switch
As a Segment Switch
The Switch also works well as a segment switch. That is, with its high
performance, it can be used for interconnecting network segments—simply
connect the network hubs that form those segments to the switch, or you can
also connect other switches.

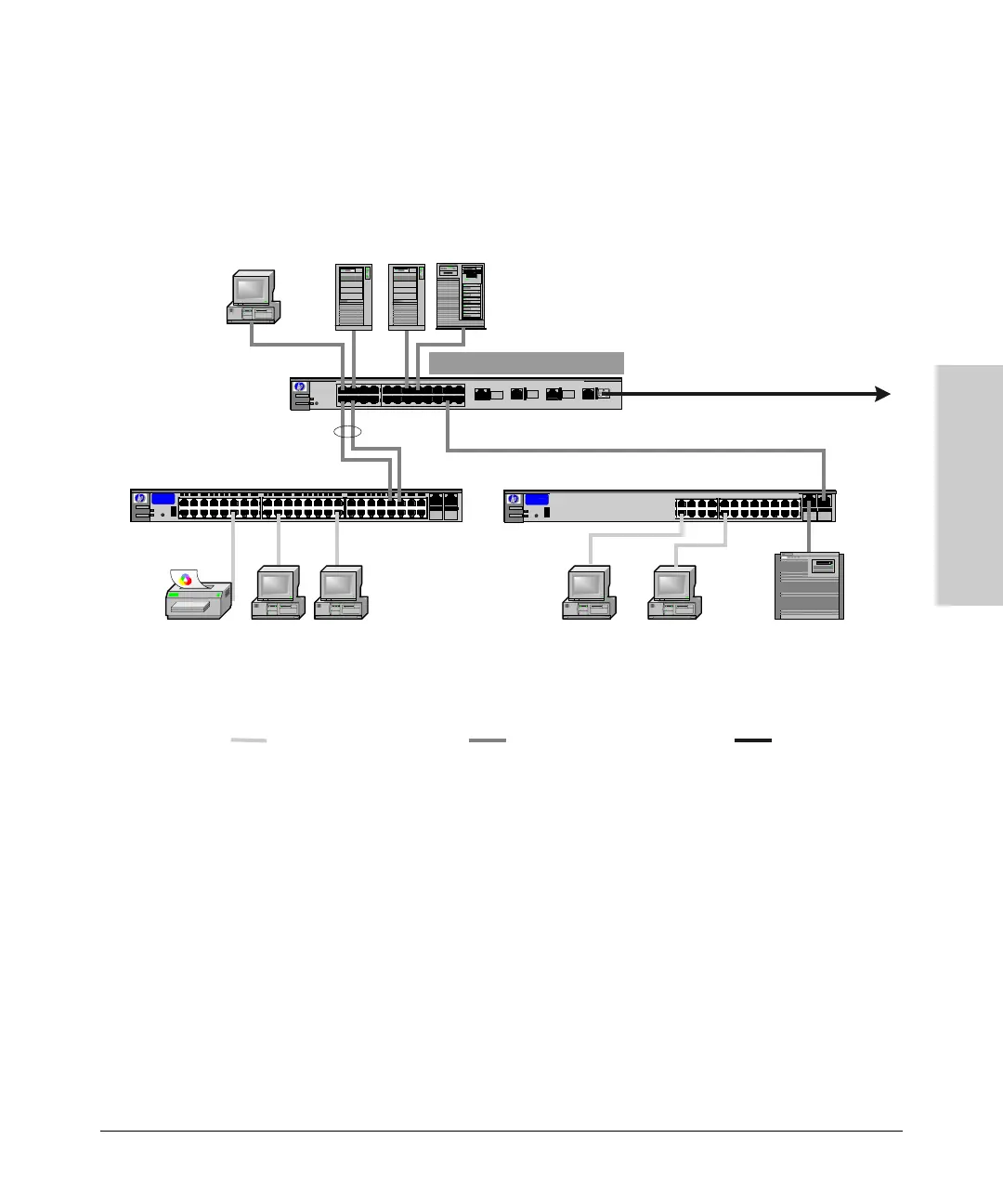

In the illustration above, two “Fast” Ethernet hubs with PCs, printers, and local
servers attached, are both connected to a Switch. The devices attached to the
two hubs can now communicate with each other through the switch. They can
also all communicate with the server that is connected to a 1000Base-T port
on the switch.
Power
Fault
hp procurve
switch 2650
Power
Fault
J4899A
Act
FDx
Max
hp procurve
switch 2650
Power
Fault
J4899A
Act
FDx
Max
To backbone
Servers with Gigabit
Ethernet NIC
Fast Ethernet Switch
Server with
Gigabit Ethernet NIC
PCs, local servers,
and peripherals
PCs, local servers,
and peripherals
HP ProCurve Switch 2824
LEGEND: Gigabit Ethernet cable Fiber cableFast Ethernet cable
Fast Ethernet Switch
