HP ProLiant DL360 G7 User Manual

Hardware options installation 60
6.

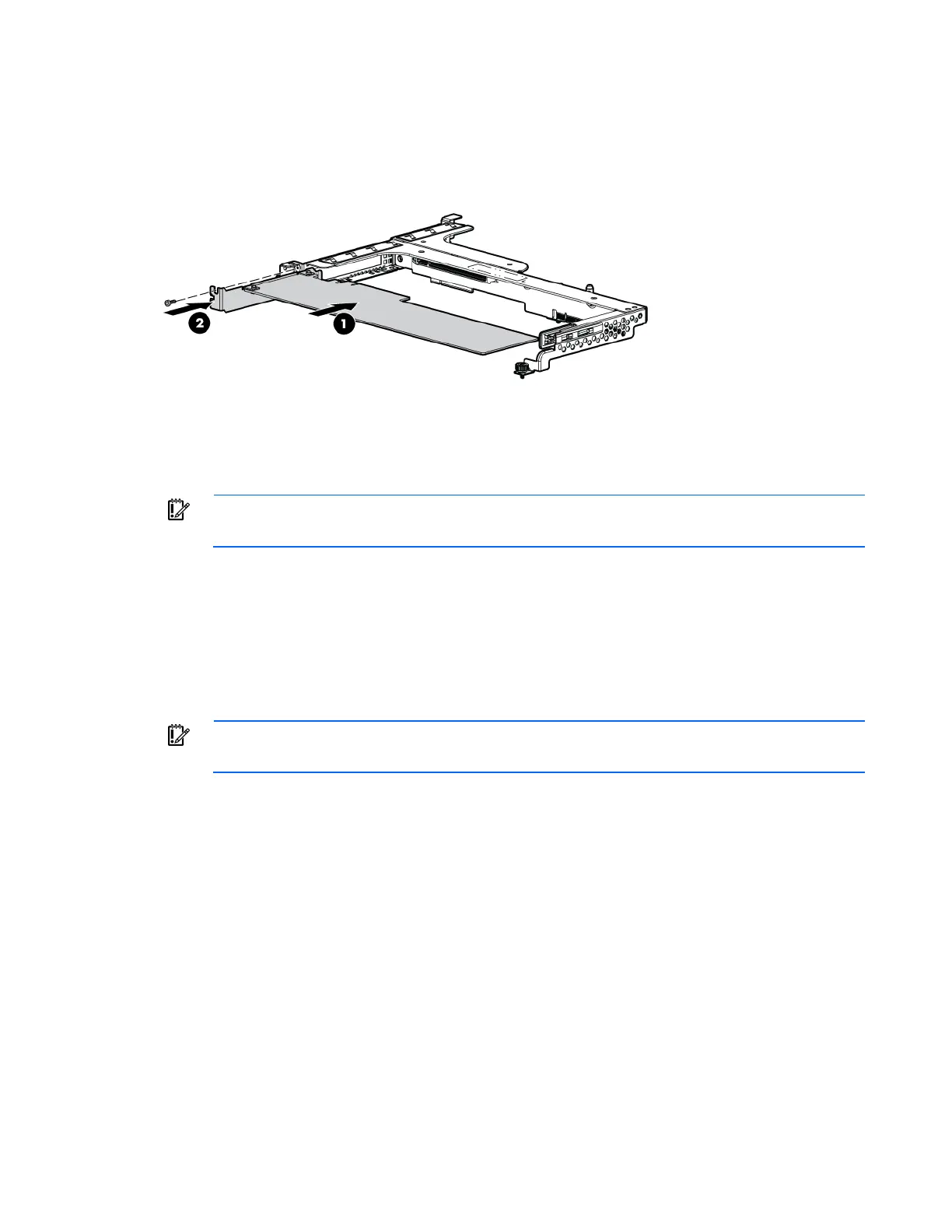

Install the expansion board into the slot until it seats firmly. The same procedures apply for installing
an expansion board in PCI expansion slot 1.
7. Install the PCI riser board assembly (on page 24).
IMPORTANT: The server does not power up if the PCI riser board assembly is not seated
properly.
8. Connect all internal or external cabling to the expansion boards.
9. Install the access panel (on page 21).
10. Slide the server into the rack.
11. Power up the server (on page 19).
Installing a PCI-X riser board
IMPORTANT: The PCI-X riser board installed in this document supports PCI-X expansion
boards only.
1. Power down the server (on page 19).
2. Extend the server from the rack (on page 19).
3. Remove the access panel (on page 21).
4. Remove the PCI riser board assembly (on page 23).
5. Remove all expansion boards, if installed.

HP ProLiant DL360 G7 Specifications

General

Storage	Up to 8 SFF SAS/SATA/SSD drives
Form Factor	1U Rack
Processor	Intel Xeon 5600 series
Memory	Up to 192GB DDR3
Network	Embedded NC382i Dual Port Multifunction Gigabit Server Adapter
Power Supply	Hot-plug redundant power supplies (460W, 750W, or 1200W)
Expansion Slots	2 x PCIe Gen2
RAID Controller	HP Smart Array P410i
Network Controller	HP NC382i Dual Port Multifunction Gigabit Server Adapter
Management	Integrated Lights-Out 3 (iLO 3)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
