HP T200 Illustrated Parts & Service Map

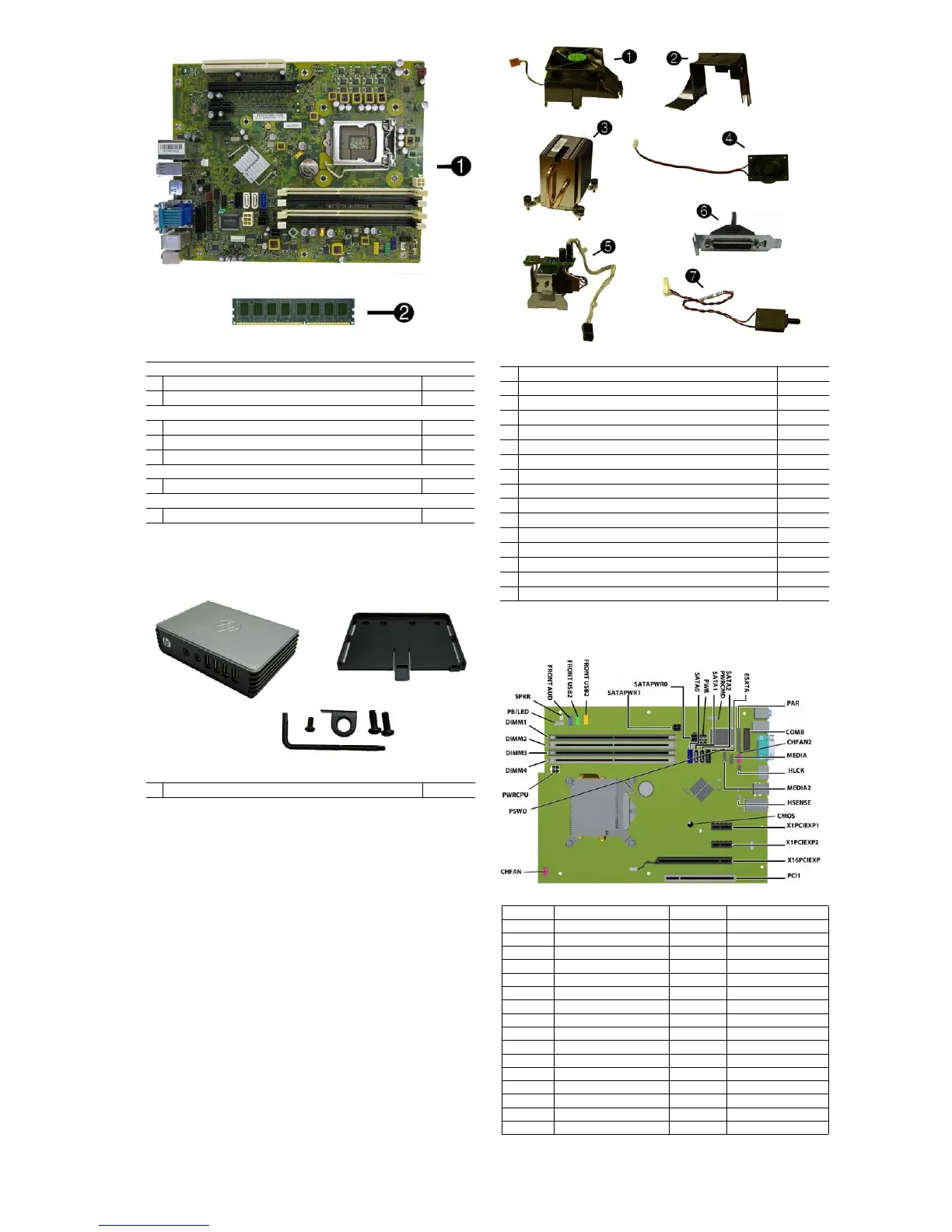

HP MultiSeat ms6200 and HP t200 Zero Client 675834-001 page 2
System Board
Standard and Optional Boards
System boards with replacement thermal material
1 System board, includes Trusted Platform Module (TPM) 649515-001
* System board, does not include TPM 615114-001
Memory modules (PC3-10600, CL9)
21 GB
635802-001
*2 GB
635803-001
*4 GB
585157-001
Intel Core i7 processors (include thermal material)
* 2600, 3.4 GHz, 8-MB L3 cache, 95W 638632-001
Intel Core i5 processors (include thermal material)
* 2400, 3.1 GHz, 6-MB L3 cache, 95W 638630-001
* Not shown
HP t200 Zero Client (includes mounting bracket and hardware)
1 t200 Zero Client replacement kit 672641-001
Miscellaneous Parts
1 Chassis fan 645327-001
2 Fan duct 636921-001
3 Heatsink 645326-001
4 Speaker 636925-001
5 Solenoid lock 641498-001
6 Printer port, PCI card 638817-001
7 Hood sensor 638816-001
* Card reader, 22-in-1 636166-001
* Grommet, hard drive isolation, blue 594220-001
* USB powered speakers 571536-001
* Mouse, PS2, optical, jack black 537748-001
* Mouse, USB, BFR-PVC 590270-001
* Mouse, washable 619580-001
* Mouse, optical, jack black 444740-001
* Mouse, laser, jack black 570580-001
* Clamp lock, includes universal cable (plate not included) 508987-001
*Not shown
System Board Connectors and Jumpers (component location may vary)
SPKR Speaker connector MEDIA2 Media card reader connector
FRNT AUD Front panel connector HSENSE Hood sensor connector
FRONT_USB2 2nd USB connector X1PCIEXP1 PCIe X1 slot
FRONT_USB 1st USB connector X1PCIEXP2 PCIe X1 slot
SATA PWR0 Optical drive power connector X16PCIEXP PCIe X16 slot
SATA PWR1 Hard drive power connector PCI1 PCI slot
SATA0 1st hard drive (SATA 3.0) CHFAN Fan connector
PWR Main power connector PSWD Password header
SATA1 2nd hard drive (SATA 2.0) CMOS CMOS header
PWR CMD Power connector XUI Processor socket
SATA2 1st optical drive (SATA 2.0) PWRCPU CPU power connector
ESATA eSATA connector DIMM4 Memory socket - Channel A
PAR Parallel port connector DIMM3 Memory socket - Channel A
COMB Serial port DIMM2 Memory socket - Channel B
MEDIA
Media card reader connector DIMM1 Memory socket - Channel B
CHFAN2 System fan connector PB/LED Power switch connector
HLCK Hood lock connector

HP T200 Specifications

General

Motherboard chipset	-
Processor frequency	- GHz
Internal memory	- GB
Memory clock speed	1333 MHz
Internal memory type	DDR3-SDRAM
Display included	No
Audio system	Stereo audio
Microphone in	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Power supply	3 W
Storage media	HDD
Storage drive interface	Serial ATA
Maximum resolution	2048 x 1152 pixels
Cabling technology	10/100/1000Base-T(X)
Operating system installed	Windows MultiPoint Server 2011
Product color	Black
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Country of origin	China

Weight and Dimensions

Depth	91 mm
Width	136 mm
Height	35 mm
Weight	343 g
