27. Remove MB from chassis
28. Use T-15 screwdriver remove the screws on the PSU Chassis
29. Disconnect the PSU cable from the MB
30. Remove the PSU from chassis
31. Use PH1 screwdriver to remove screw for the PSU
32. Remove cover
33. Use PH1 screwdriver to remove FG screw
34. Disconnect fan connector and inlet connector
35. Use PH1 screwdriver to remove AC inlet & Fan screw
36. Remove the PCB from the the PSU
37. Heat the solder of the Electrolytic Capacitors of greater than 2.5cm in diameter or height and Remove it
38. The electrolytic Capacitors had been removed.
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained in the
product that require selective treatment (with descriptions and arrows identifying locations).

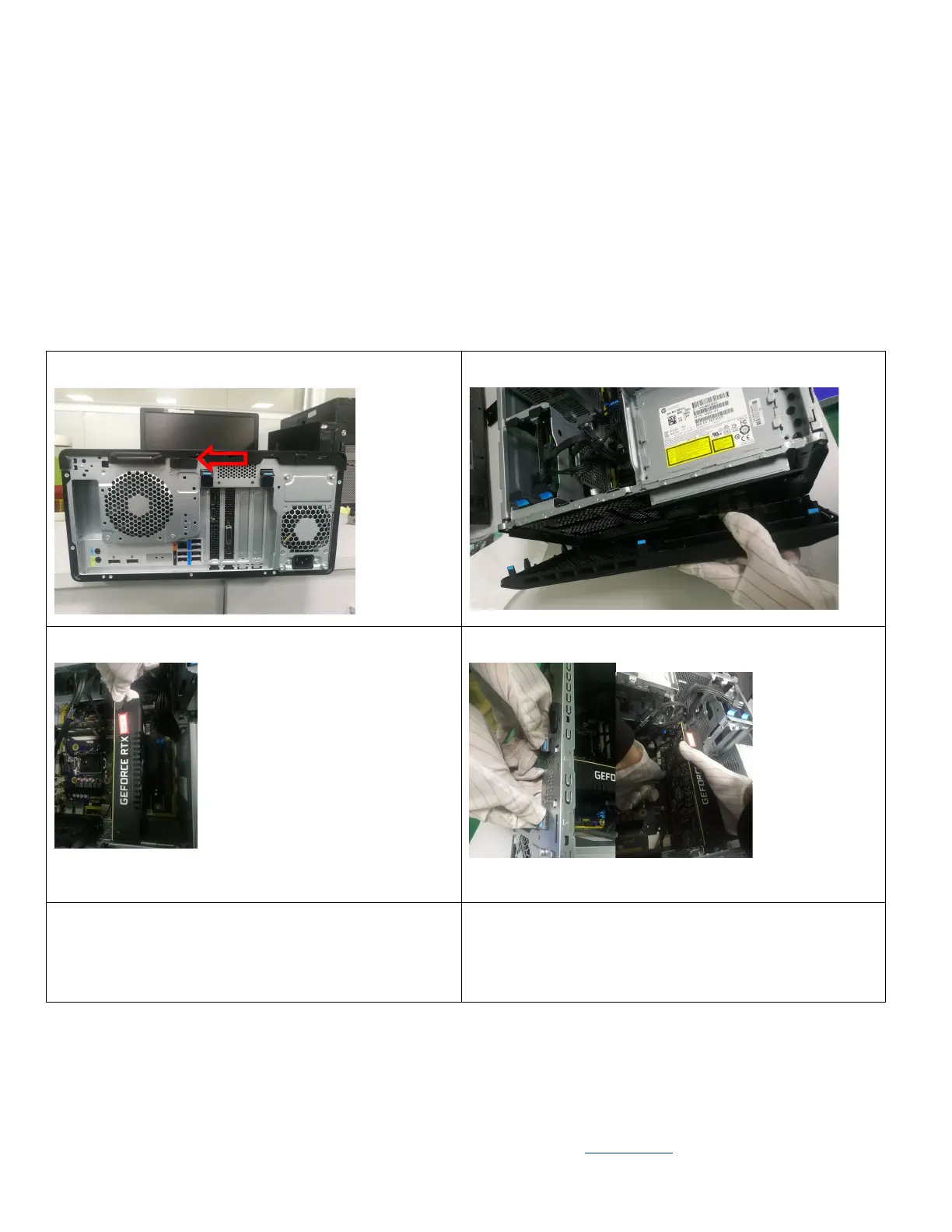

Step2 Remove front bezel from chassis
Step3 Disconnect cable from Graphic card
Step4 Press the Graphic card s latch and unplug Graphic card
Step 5 Press the ODD’s latch on ODD cage
Step 6 Disconnect ODD power cable and ODD SATA cable from
ODD
