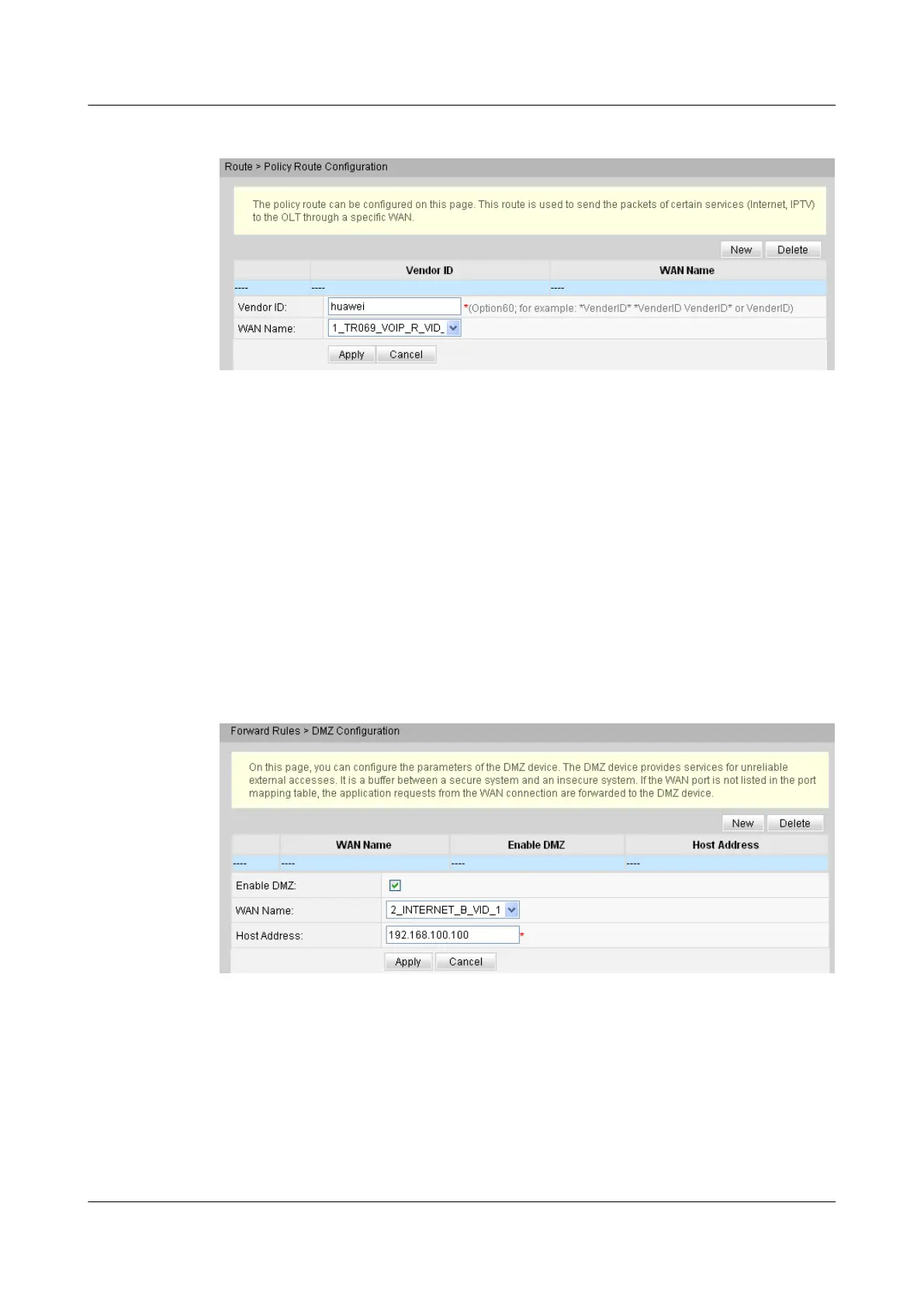

Figure 5-24 Policy Route Configuration
2. Click Apply to apply the configuration.
5.7 Forward Rules
This topic describes how to configure the DMZ, port mapping, and port trigger through the Web
page.
5.7.1 DMZ Configuration
1. In the navigation tree on the left, choose Forward Rules > DMZ Configuration. In the
pane on the right, click New. In the dialog box that is displayed, set the parameters related
to the DMZ, as shown in Figure 5-25.
Figure 5-25 DMZ Configuration
2. Click Apply to apply the configuration.
The demilitarized zone (DMZ) is a technology that enables the ONT to forward all received
packets through a specified internal server. The technology enables a computer in the LAN to
be completely exposed to all users on the Internet or enables the mutual communication without
restrictions between a host with a specified IP address and other users or other servers on the
Internet. In this way, many applications can run on the host with the specified IP address. The
host with the specified IP address receives all connections and files that can be identified.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 5 Web Page Reference
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
324
