Huawei FusionServer G5500 User Manual

Step 4 Determine the position of the node. See Figure 4-8. The G560 is in the lower slot and the
GP608 is in the upper slot.

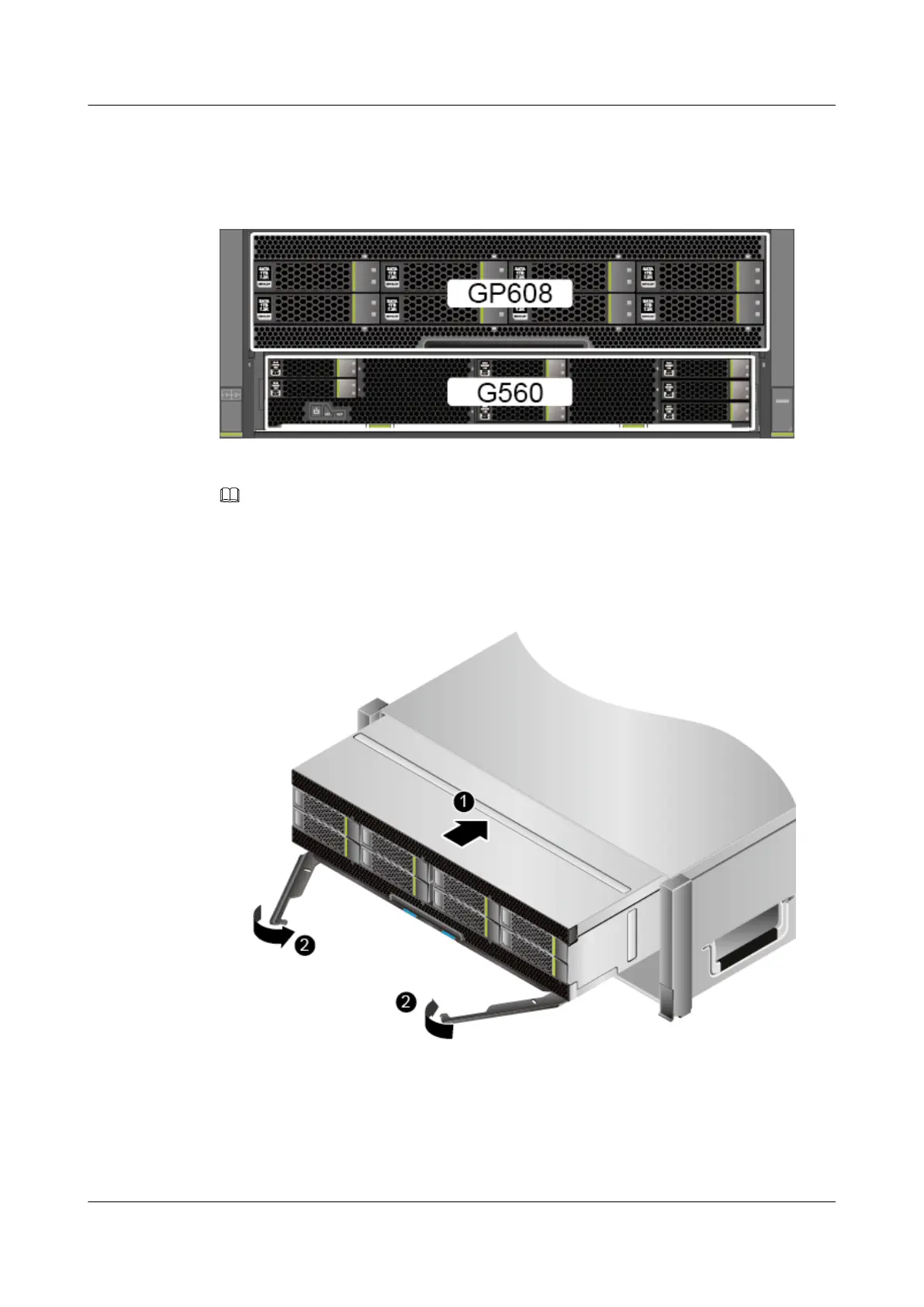

Figure 4-8 Node slots
Step 5 Install the GP608.
NOTE
Install filler modules in empty slots to avoid system alarms or performance deterioration.
1. Insert the GP608 horizontally into the chassis. See (1) in Figure 4-9. Note that the
GP608 must be installed closely to the top chassis cover.
Figure 4-9 Installing the GP608
2. Close the ejector levers on the GP608. See (2) in Figure 4-9.
----End
4.4.2 Installing the G560
FusionServer G5500 Server
User Guide
4 Setup
Issue 02 (2017-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
57

Huawei FusionServer G5500 Specifications

General

Chassis type	Rack (4U)
Device class	-
Product color	Black
Number of fans	6 fan(s)
Redundant fans support	Yes
AC input voltage	110-240 V
80 PLUS certification	80 PLUS Platinum
Number of power supply units	4
Power supply unit (PSU) capacity	2200 W
Storage drive capacity	- GB
Storage drives installed	No
Maximum supported storage capacity	- TB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	790 mm
Width	447 mm
Height	175 mm
