Huawei FusionServer Pro 2288H V5 User Manual

5 Chassis 6 Supercapacitor holders
7 Air duct 8 Front-drive backplane
9 Fan module brackets 10 Fan modules
11 Front drives 12 FlexIO card
13 Mainboard 14 Screw-in RAID controller
card
15 TPM/TCM 16 Memory modules
17 Processors 18 Heat sinks
1.3 Logical Structure

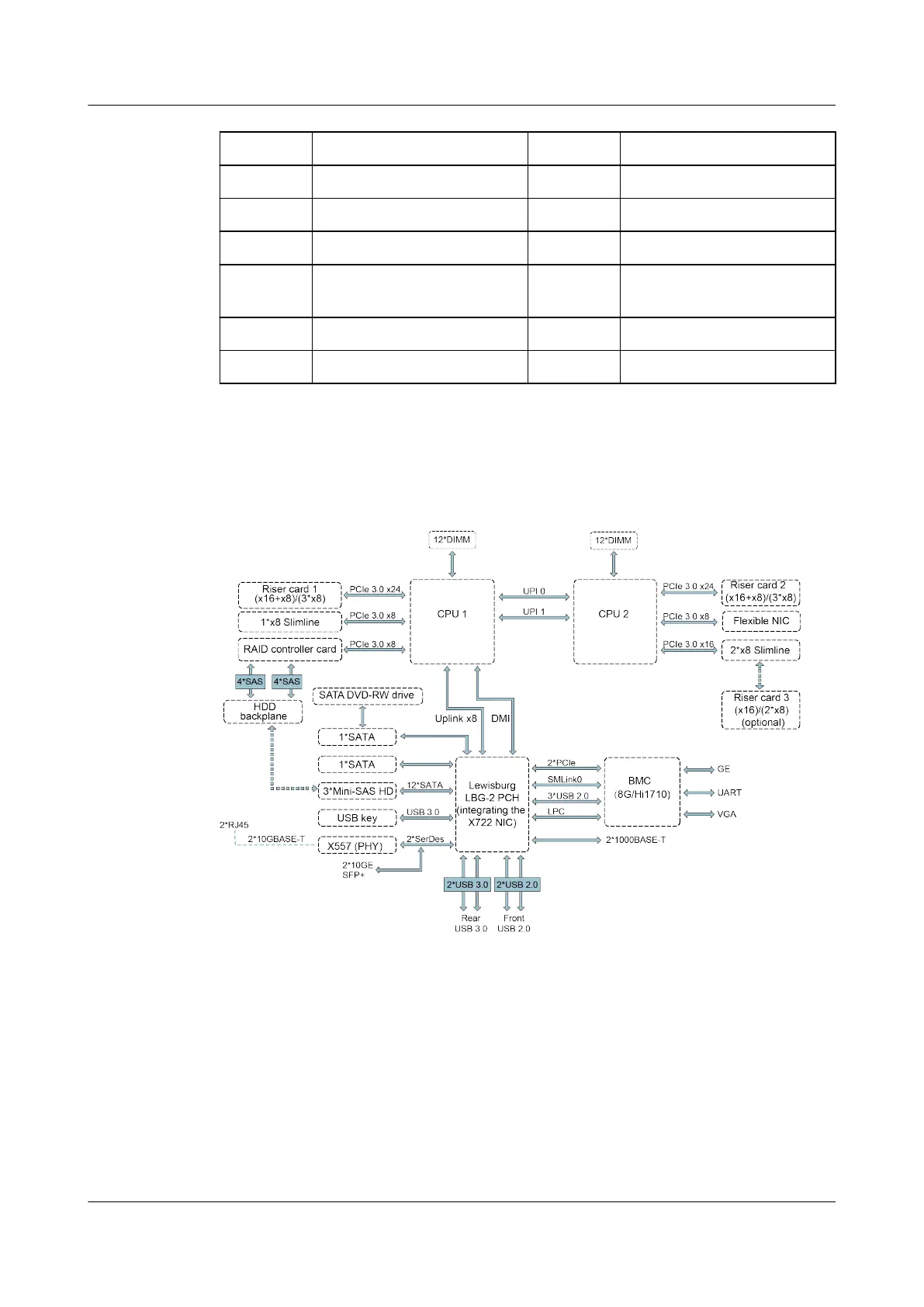

Figure 1-3 2288H V5 logical structure
l The server supports one or two Intel
®
Xeon
®
Scalable processors.
l The server supports up to 24 memory modules.
l The CPUs (processors) interconnect with each other through two UPI links at a speed of
up to 10.4 GT/s.
l Three PCIe riser cards connect to the processors through PCIe buses to provide ease of
expandability and connection.
l The RAID controller card on the mainboard connects to CPU1 through PCIe buses, and
connects to the drive backplane through SAS signal cables. A variety of drive backplanes
are provided to support different local storage configurations.
FusionServer Pro 2288H V5 Server
User Guide
1 Overview
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 3

Huawei FusionServer Pro 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	Up to 3 TB
Memory Type	DDR4
Operating Temperature	5°C to 40°C
Storage	Supports up to 12 x 3.5-inch drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x GE ports
Power Supply	800W or 1600W PSU options
Dimensions (H x W x D)	86.1 mm x 447 mm x 748 mm
