Huawei FusionServer Pro 2288H V5 User Manual

2.2.3 Ports
Port Positions

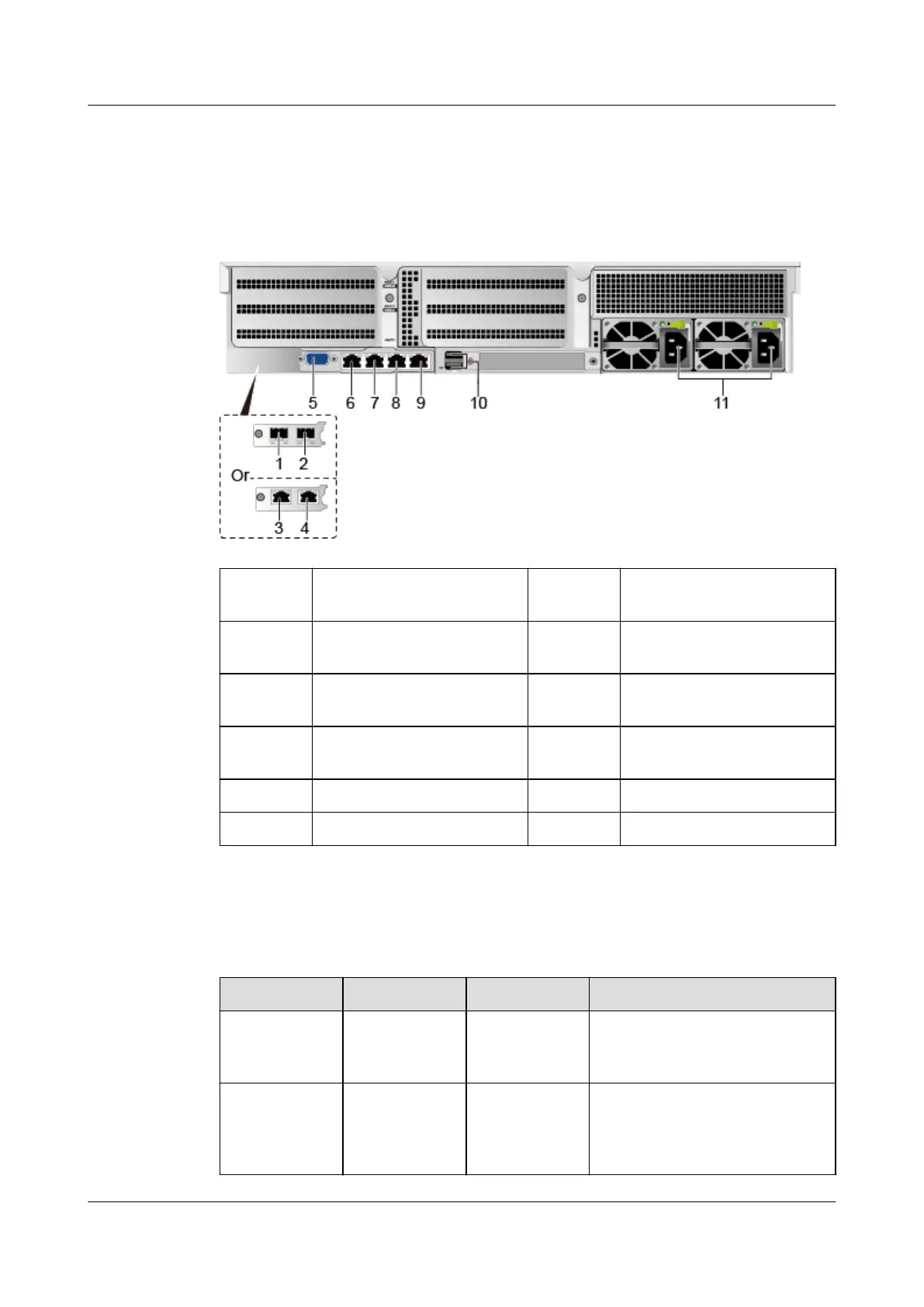

Figure 2-18 Ports on the rear panel
1 (Optional) 10GE optical port
(LOM port 1)
2 (Optional) 10GE optical port
(LOM port 2)
3 (Optional) 10GE electrical
port (LOM port 1)
4 (Optional) 10GE electrical
port (LOM port 2)
5 VGA port 6 GE electrical port (LOM port
1)
7 GE electrical port (LOM port
2)
8 Management network port
9 Serial port 10 USB 3.0 ports
11 PSU sockets - -
Port Description
Table 2-4 Description of ports on the rear panel
Port
Type Quantity Description
(Optional)
10GE optical
port
10GE SFP+ 2 10GE LOM service ports (optical).
Use the optical or electrical ports
based on service requirements.
(Optional)
10GE electrical
port
10GE BASE-T 2 10GE LOM service ports
(electrical). Use the optical or
electrical ports based on service
requirements.
FusionServer Pro 2288H V5 Server
User Guide
2 Hardware Description
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 17

Huawei FusionServer Pro 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	Up to 3 TB
Memory Type	DDR4
Operating Temperature	5°C to 40°C
Storage	Supports up to 12 x 3.5-inch drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x GE ports
Power Supply	800W or 1600W PSU options
Dimensions (H x W x D)	86.1 mm x 447 mm x 748 mm
