Indicator Description
Data transmission rate
indicator for a 10GE
optical port
● O: The network port is not connected.
● Steady green: The data transmission rate is 10
Gbit/s.
● Steady yellow: The data transmission rate is lower
than 10 Gbit/s.
2.6.2 OCP 2.0 Mezzanine Cards
OCP 2.0 mezzanine cards provide network expansion capabilities.
● Supports on-demand
conguration.
● Contact your local Huawei sales representative or use the Intelligent
Computing Compatibility Checker to determine the components to be used.
Table 2-13 OCP 2.0 mezzanine cards supported by the 2288X V5
NIC Type Chip
Model
Port
Type
Number
of Ports
NC-SI WOL PXE
OCP 2.0
mezzanin
e card 1
CX5 25GE
optical
port
2 √ √ √
OCP 2.0
mezzanin
e card 2
CX5 25GE
optical
port
2 × √ √
Indicator Positions
● OCP 2.0 mezzanine card indicators (2 x 25GE optical ports)

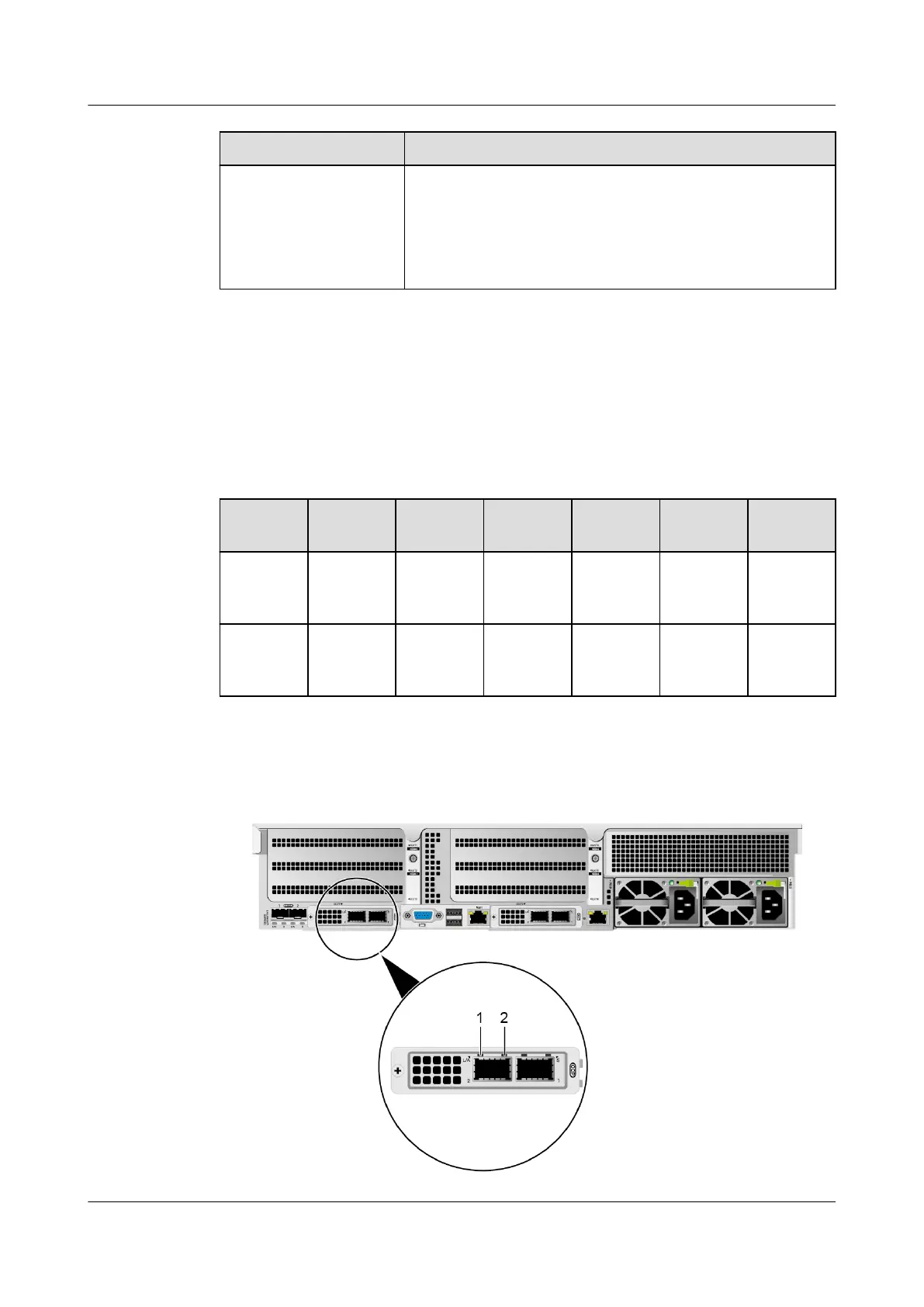

Figure 2-32 OCP 2.0 mezzanine card indicators (2 x 25GE optical ports)
FusionServer Pro 2288X V5 Server
User Guide 2 Hardware Description
Issue 04 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 34
