Mapping between input lines and output lines in the power distribution box

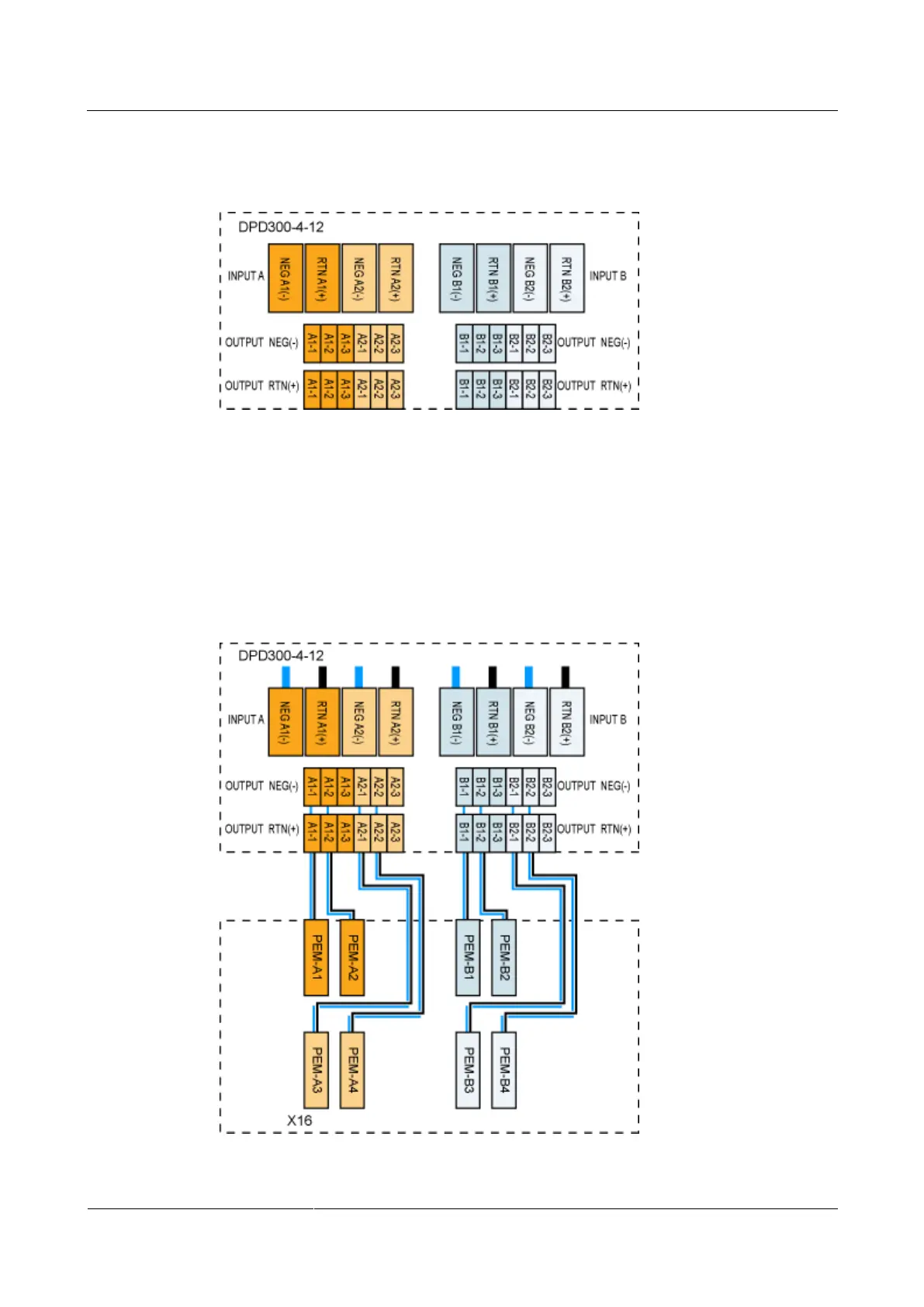

Figure 1-146 Mapping between input lines and output lines in the power distribution box
Scenario Where a Huawei NE40E-X16 Is Equipped with 8 PEM Modules
PEM-A1 and PEM-A2 are connected to A1-1 and A1-2 in the power distribution box, and
PEM-A3 and PEM-A4 are connected to A2-1 and A2-2 in the power distribution box.
PEM-B1 and PEM-B2 are connected to B1-1 and B1-2 in the power distribution box, and
PEM-B3 and PEM-B4 are connected to B2-1 and B2-2 in the power distribution box.
Figure 1-147 Power distribution mode 2 for the NE40E-X16
