Huawei S5700 Series Hardware Description

Item Description
Certification
l EMC certification
l Safety certification
l Manufacturing certification
3.4.17 S5701-28X-LI-AC
Version Mapping
Table 3-97 lists the mapping between the S5701-28X-LI-AC chassis and software versions.
Table 3-97 Version mapping
Series
Model Software Version
S5700-LI S5701-28X-LI-AC V200R003C00 and later versions
NOTE
This model does not match V200R003C02,
V200R003C10, V200R005C00SPC500,
V200R005C01, V200R005C02, V200R005C03,
or V200R007C10.
Appearance and Structure

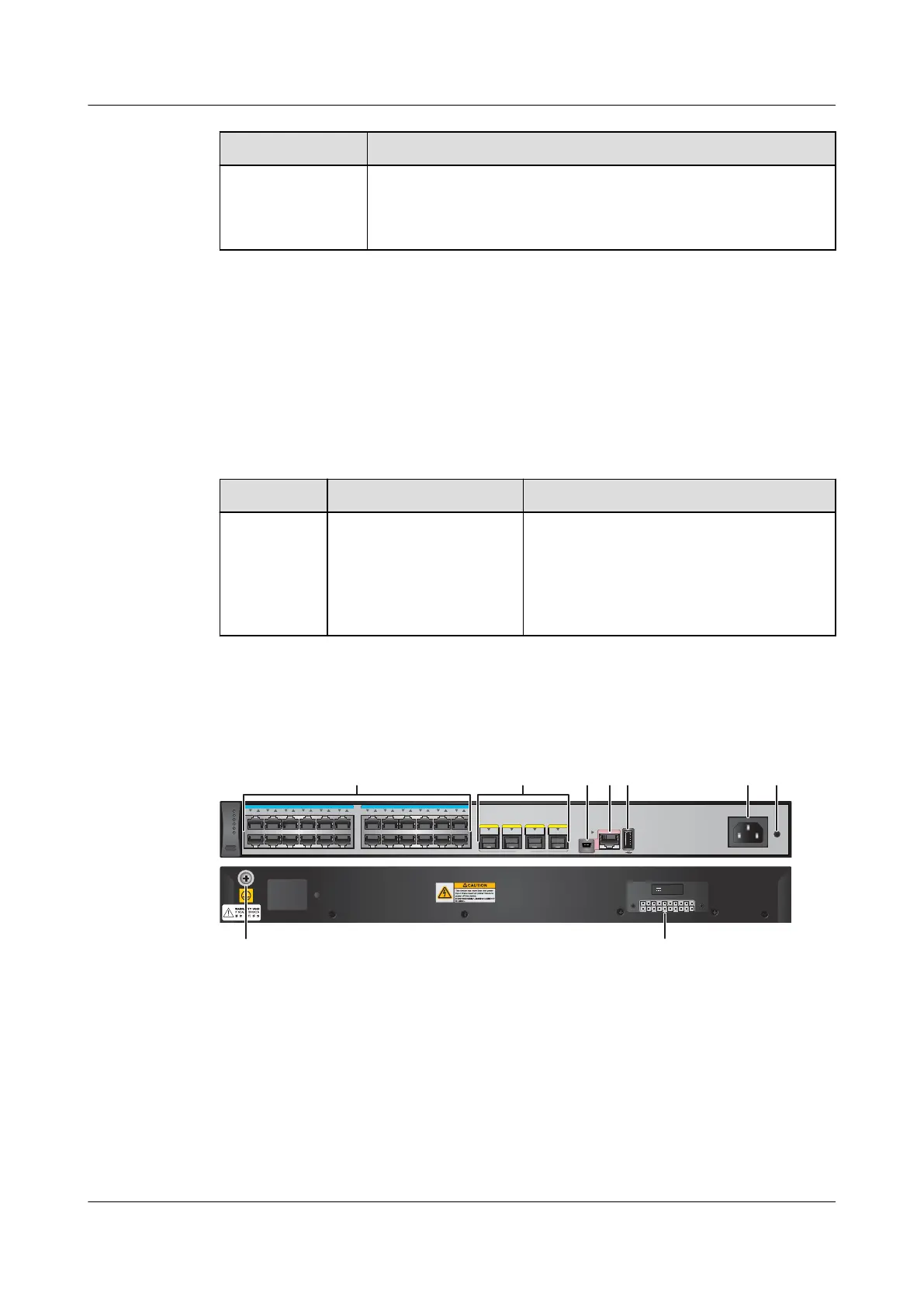

Figure 3-37 S5701-28X-LI-AC appearance
+12V;8A
12 34 56 78 910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
1
2
3 4
MODE
STCK
SPED
STAT
SYS
RPS
PWR
HUAWEI
S5701-28X-LI-AC
~100-240V;50/60Hz;2A
10G/1G
9
1
2
345 6 7
8
S5700 Series Ethernet Switches
Hardware Description
3 Chassis
Issue 24 (2016-08-12) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
176

Huawei S5700 Series Specifications

General

Model	S5700 Series
Category	Switch
Power Supply	AC or DC
Fixed GE Ports	24/48 (depending on model)
PoE	Available on some models
Routing Protocols	RIP, OSPF, BGP, IS-IS
Management	SNMP, RMON, Web-based, CLI
Operating Temperature	0°C to 45°C
VLAN	4094
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm
