Huawei S6700 Series Hardware Description

Item Description
Certification
l EMC certification
l Safety certification
l Manufacturing certification
2.5 S6720-EI
2.5.1 Version Mapping
Table 2-12 lists the mapping between the S6720-EI series switches and software versions.
Table 2-12 Mappings between the S6720-EI series switches and software versions
Series Model Available Version
S6720-EI S6720-30C-EI-24S-AC V200R008C00 and later versions
S6720-54C-EI-48S-AC V200R008C00 and later versions
2.5.2 Appearance and Structure
S6720-30C-EI-24S-AC

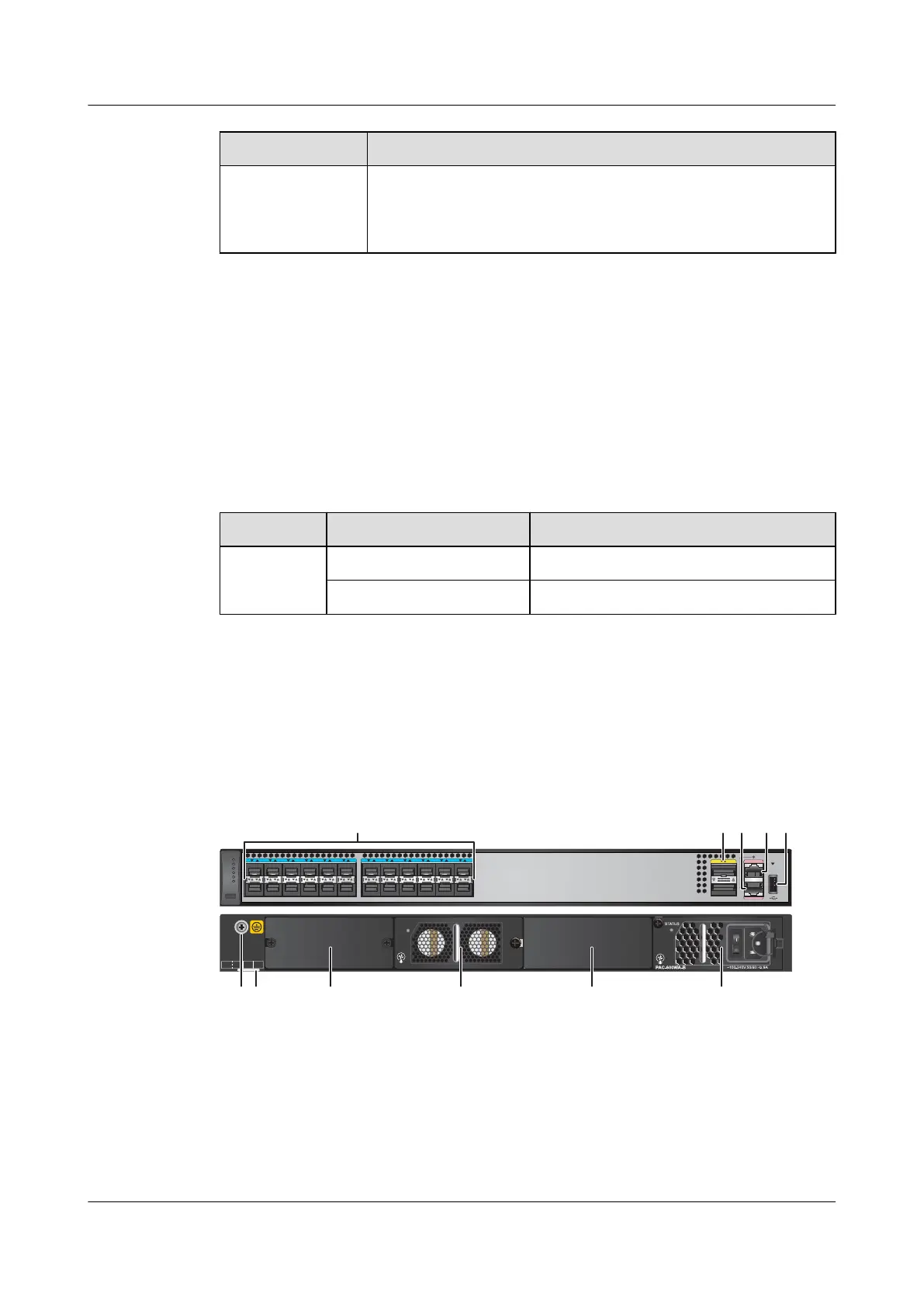

Figure 2-8 Appearance of the S6720-30C-EI-24S-AC
CARD FAN
PWR2 PWR1
STATUS
FAN-060B-B
S6720-30C-EI-24S
12
123 4 567891011 12
13 14 15 16 17 18 19 20 21 22 23 24
CONSOLE
ETH
MODE
HUAWEI
STCK
SPED
STAT
SYS
PWR1
PWR2
1234
67
8 9 10 11
5
S6700 Series Ethernet Switches
Hardware Description 2 Chassis
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
26

Huawei S6700 Series Specifications

General

Brand	Huawei
Model	S6700 Series
Category	Switch
Language	English
