Huawei S6700 Series Hardware Description

3.2 500 W DC Power Module
Version Mapping
Table 3-5 lists the switch chassis and software versions matching a 500 W DC power module.
Table 3-5 Switch chassis and software versions matching a 500 W DC power module
Power Module Name Product Support
LS6W2PSD0500 Supported only in the S6700-24-EI and S6700-48-EI
Appearance
Figure 3-3 shows the appearance of a 500 W DC power module.

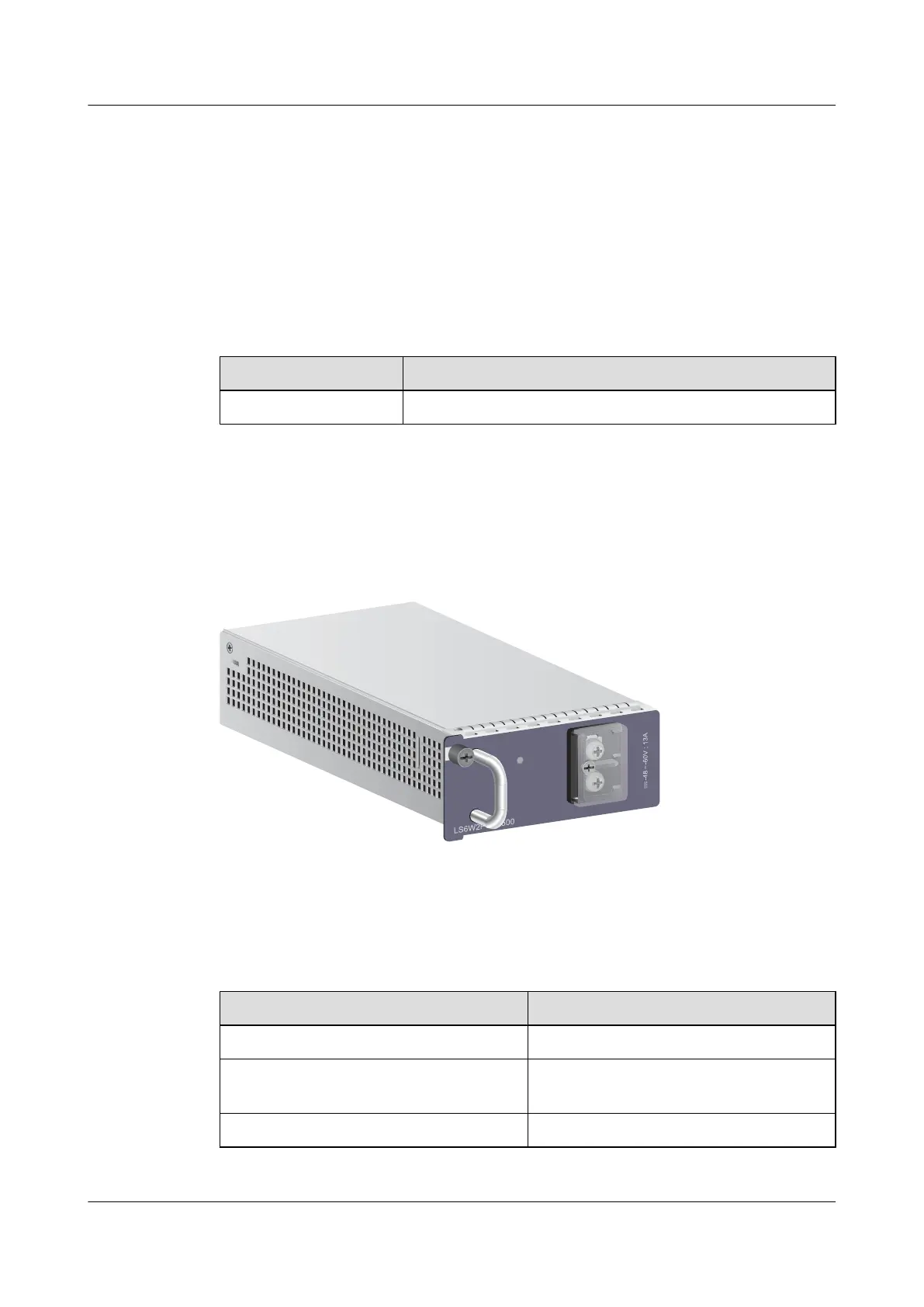

Figure 3-3 Appearance of the 500 W DC power module
STATUS
NEG(-) RTN(+)
Function
Table 3-6 describes the functions of a 500 W DC power module.
Table 3-6 Functions of a 500 W DC power module
Function Description
Input protection Input power detection is provided.
Output protection Output overcurrent and short-circuit
protection is provided.
Surge protection -
S6700 Series Ethernet Switches
Hardware Description
3 Power Modules
Issue 12 (2015-07-31) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
46
