Husky H150PL User Manual

13
100
120
140
160
80
60
40
6
4
PRESSURE GAUGE
2
0
8
10
12
14
100
120
140
160
80
60
40
6
4
PRESSURE GAUGE
2
0
8
10
12
14
WARNING:
Always ensure the switch is in the OFF position and the
regulator pressure gauge reads zero before changing air
tools or disconnecting the hose from the air outlet. Failure
to do so could result in possible serious personal injury.
 Rotate regulator knob clockwise to open air flow.
 Connect the power cord to the power supply.
 Turn the power switch to AUTOMATIC position.
 Rotate pressure regulator knob to desired line pressure.
Turning the knob clockwise increases air pressure at the
outlet; turning counterclockwise reduces air pressure at
the outlet.
 Following all safety precautions in this manual and the
manufacturer’s instructions in the air tool manual, you
may now proceed to use your air powered tool.

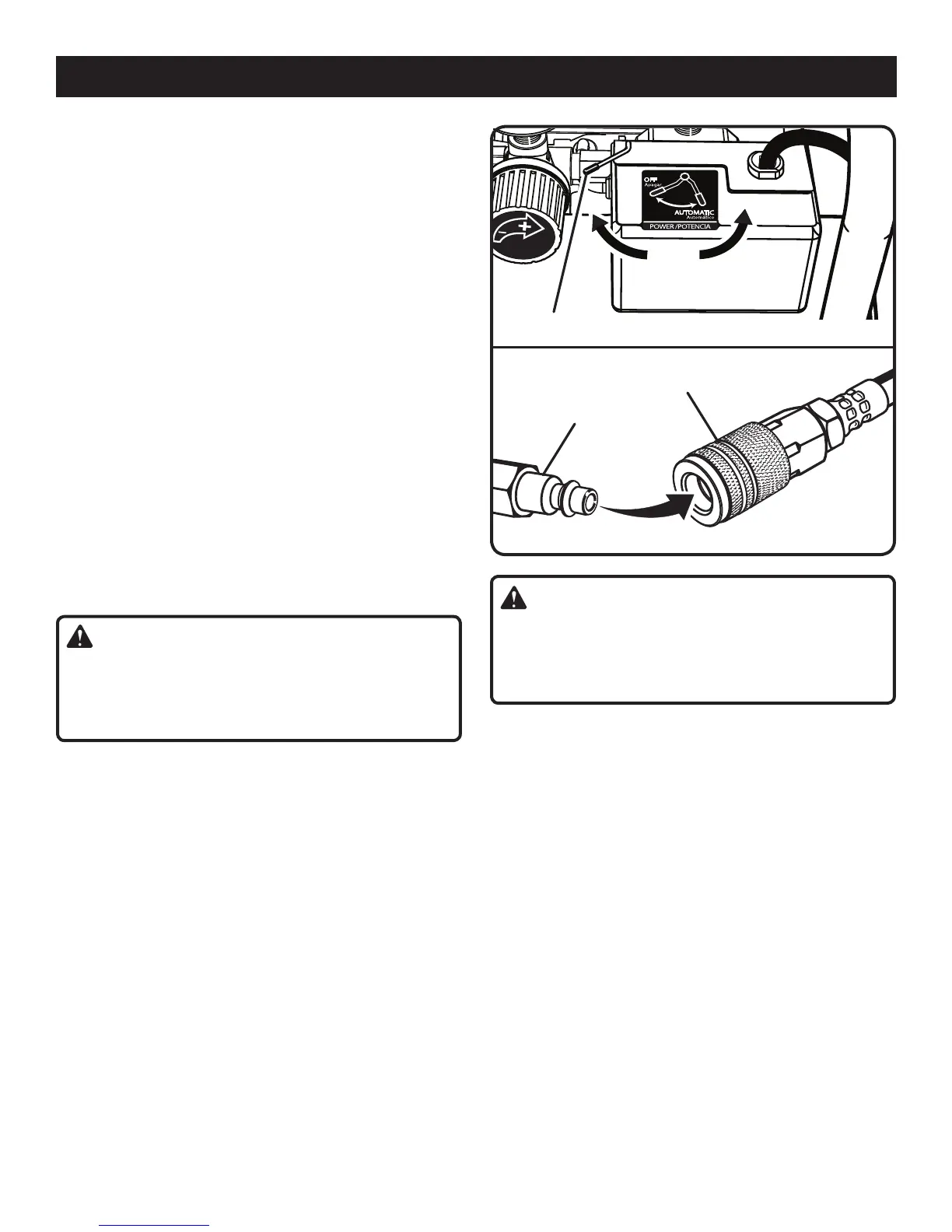

Fig. 5
Fig. 6
OFF
AUTOMATIC
OFF / AUTOMATIC
QUICK-CONNECT
AIR FITTING
1/4 in.QUICK
COUPLER
OPERATION
APPLICATIONS
Air compressors are utilized in a variety of air system applica-
tions. Match hoses, connectors, air tools, and accessories
to the capabilities of the air compressor.
You may use this tool for the purposes listed below:
Operating some light duty air powered tools
Inflating tires, air beds, sports equipment, etc.
(Inflation accessories sold separately)
TURNING THE AIR COMPRESSOR ON/OFF
See Figure 5.
 Turn the power switch to the AUTOMATIC position to
power the compressor on.
 To turn the air compressor off, turn the power switch to
the OFF position.
USING THE AIR COMPRESSOR
See Figures 5 - 6.
 Ensure power switch is in the OFF position and air com-
pressor is unplugged.
 If not already installed, attach hose to compressor as
previously instructed.
 Attach 1/4 in. NPT male connector fitting of tool and into
female coupler end of air hose.
WARNING:
Your tool may require more air consumption than this
air compressor is capable of providing. Check the tool
manual to avoid damage to the tool or risk of personal
injury.
 If using an inflation accessory, control the amount of air
flow with the pressure regulator knob. Turning the knob
fully counterclockwise will completely stop the flow of
air.
NOTE: Always use the minimum amount of pressure
necessary for your application. Using a higher pressure
than needed will drain air from the tank more rapidly and
cause the unit to cycle on more frequently.
 When finished, always drain the tank and unplug the
unit. Never leave the unit plugged in and/or running unat-
tended. (See page 15 for draining instructions.)
