17

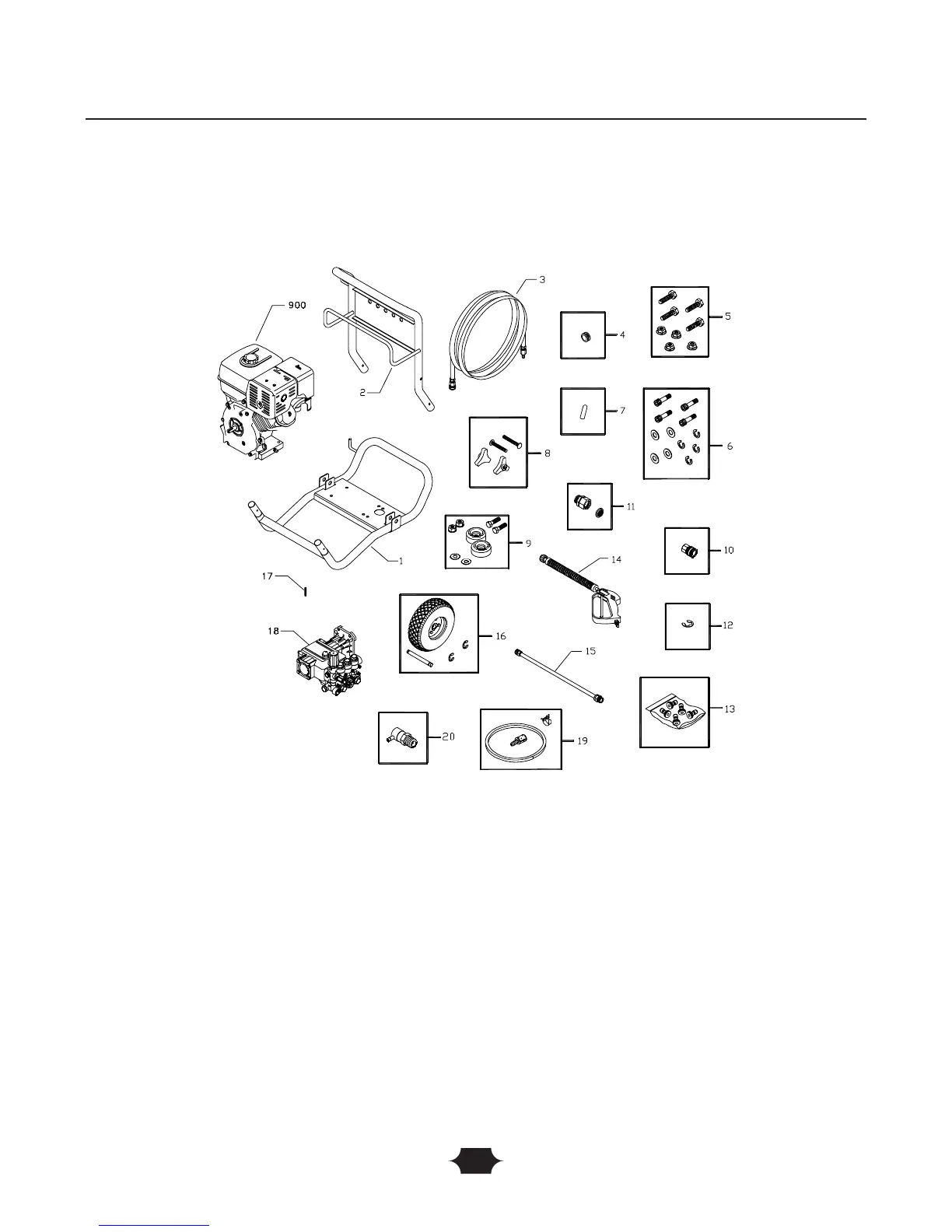

EXPLODED VIEW AND PARTS LIST — MAIN UNIT
Exploded Views and Parts Lists
Item Part # Description
1 B191938GS BASE
2 B191942GS HANDLE
3 B4805GS HOSE
4 30809GS GROMMET
5 192886GS KIT, Engine Mounting Hardware
6 193003GS KIT, Pump Mounting Hardware
7 B2516GS VINYL CAP
8 B2203GS KIT, Handle Fastening
9 192310GS KIT, Vibration Mount
10 95458GS QUICK CONNECT
11 192135GS KIT, Garden Hose Inlet
12 191265GS E-RING
Item Part # Description
13 B4847GS KIT, Spray Tips
14 B1436BGS GUN
15 190779GS EXTENSION
16 192317GS KIT, Wheel
17 63281GS KEY
18 192193GS * ASSY, Pump (see pages 18-19)
18 192194GS * ASSY, Unloader (see pages 18-19)
19 192796GS KIT, Chemical Hose/Filter
20 B1544GS VALVE, Thermal Relief
900 NSP ENGINE
Note: * Complete Pump available from Cat Pumps only.
Items Not Illustrated:
Part # Description
193017GS MANUAL, Owner’s
192894GS KIT, Decals
BB3061BGS OIL, Engine
191922GS KIT, O-RING MAINT & NZZL CLNNG
