21
KEY PART
NO. NO. DESCRIPTION
1 873 51 05-00 Nut, Keps 5/16-18
2 810 04 06-00 Washer, Lock 3/8
3 873 22 06-00 Nut, Hex 3/8-16
4 532 17 01-27 Shield, Inner Belt Guard RT
5 532 16 43-29 Pin Spirol Flared
6 532 11 01-11 Lever, Shift
7 872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 532 00 87-00 Plate, Shift Indicator
9 532 08 67-77 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 532 00 94-84 Clip
11 810 04 04-00 Washer, Lock 1/4
12 873 22 04-00 Nut, Hex 1/4-20
13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8
14 532 11 06-52 Spacer, Split 0.327 x 0.42 x 2.09
15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
16 532 14 51-02 Sheave, Transmission
19 812 00 00-28 Retainer, Ring
21 532 15 61-17 Spacer, Split
22 874 77 05-08 Bolt, Fin Hex 5/16-24 UNF x 1/2
23 532 00 50-15 Tire
532 12 43-66 Rim
532 12 47-18 Tire Valve
24 532 12 68-75 Rivet, Drilled
25 532 12 47-88 Clip, Hairpin
26 532 16 67-92 Guard, Belt
27 532 13 28-01 Belt, V
28 532 10 46-79 Pulley, Idler
29 812 00 00-32 Ring, Klip
REPAIR PARTS

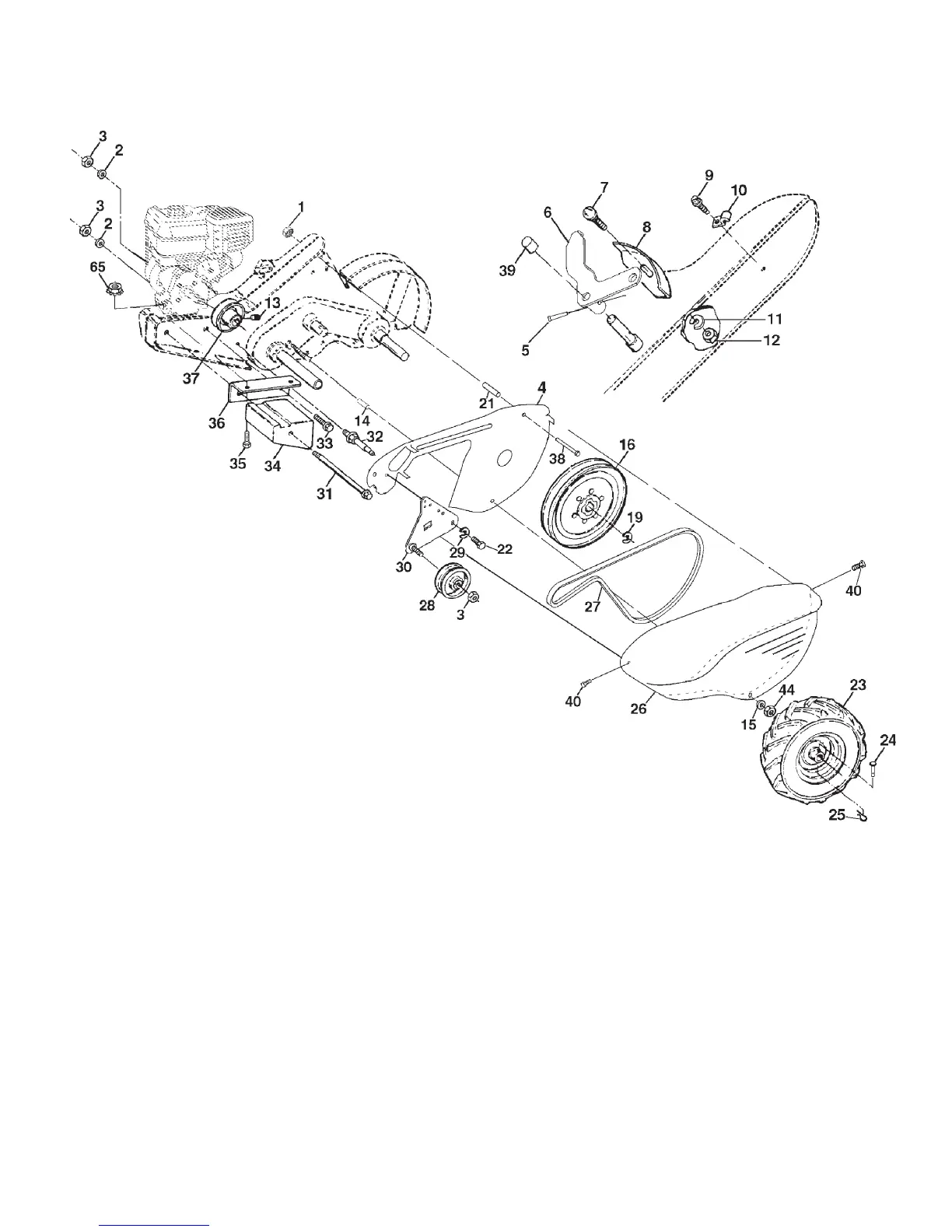

TILLER - - MODEL NUMBER 650CRTC, PRODUCT NUMBER 954 32 80-30
MAINFRAME, LEFT SIDE
KEY PART
NO. NO. DESCRIPTION
30 532 15 92-29 Bracket, Idler
31 532 10 23-84 Bolt, Hex 5/16-16 x 12
32 532 10 21-41 Shaft, Idler Arm
33 874 76 06-16 Bolt, Hex 3/8-16 x 1
34 532 10 23-83 Counterweight, L. H.
35 874 76 05-32 Bolt, Hex 5/16-18 x 2
36 532 10 23-31 Bracket, Reinforcement, L. H.
37 532 13 08-12 Sheave, Engine
38 874 76 05-44 Bolt, Fin Hex 5/16-18 UNC x 2-3/4
39 532 14 00-62 Cap, Plunger Blk
40 532 17 04-88 Screw Hex Wsh Slt #10-24 x 1/2
44 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 Unc PL
65 873 97 05-00 Nut Lock Hex Flange
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
To Next Page
