SERVICE WORK ON THE CHASSIS 12
87
F03505-10

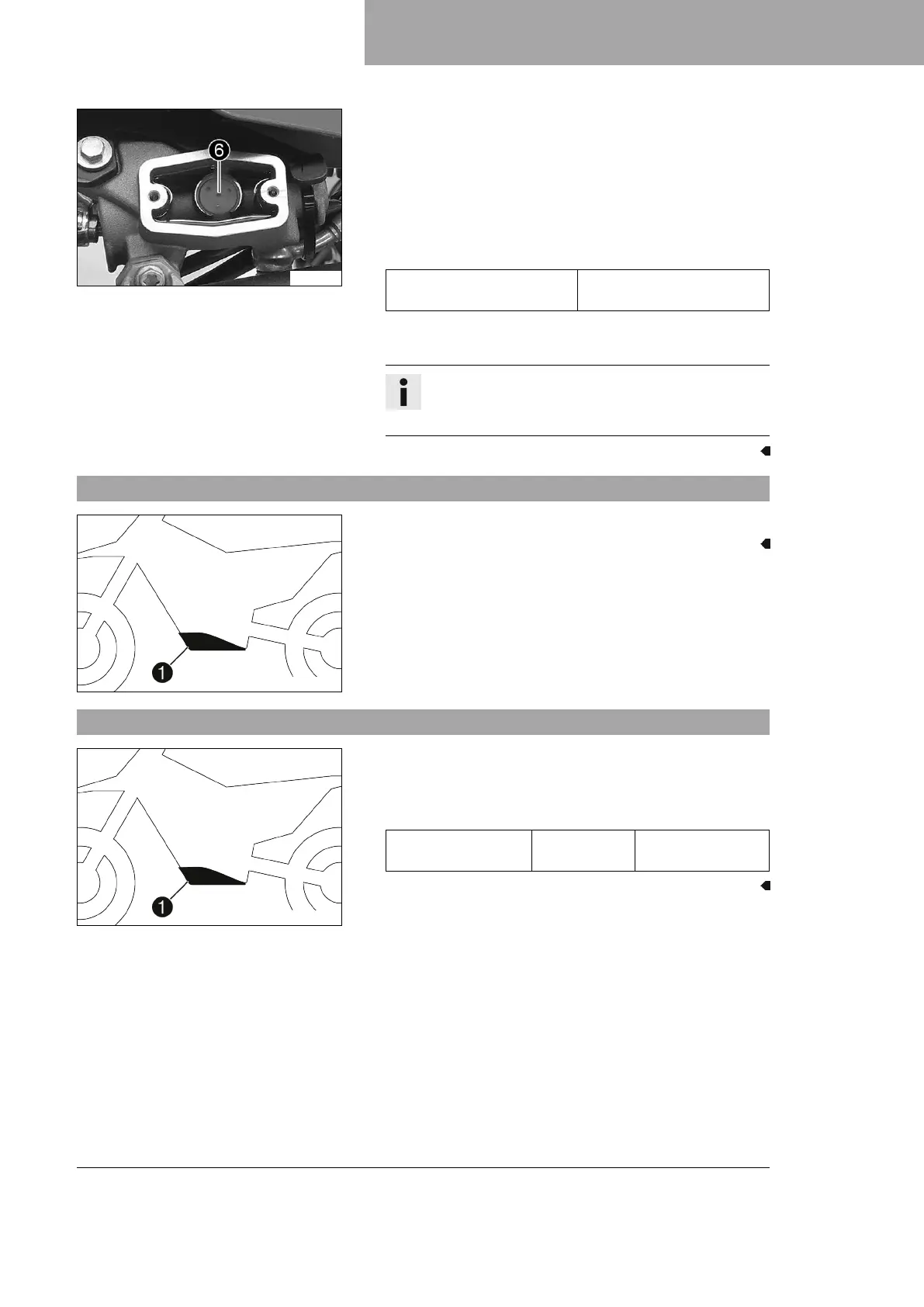

– Inject the liquid into the system until it escapes from open-
ings
6
of the master cylinder without bubbles.
– Occasionally extract the fluid from the master cylinder reser-
voir to prevent overflowing.
– Remove the bleeding syringe. Mount and tighten the bleeder
screw. Mount the protection cap.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
12.45 Removing the engine guard
H01655-01
–
Remove screws
1
and engine guard.
12.46 Installing the engine guard
H01655-01
– Attach the engine guard on the frame at the rear and swing
up at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
