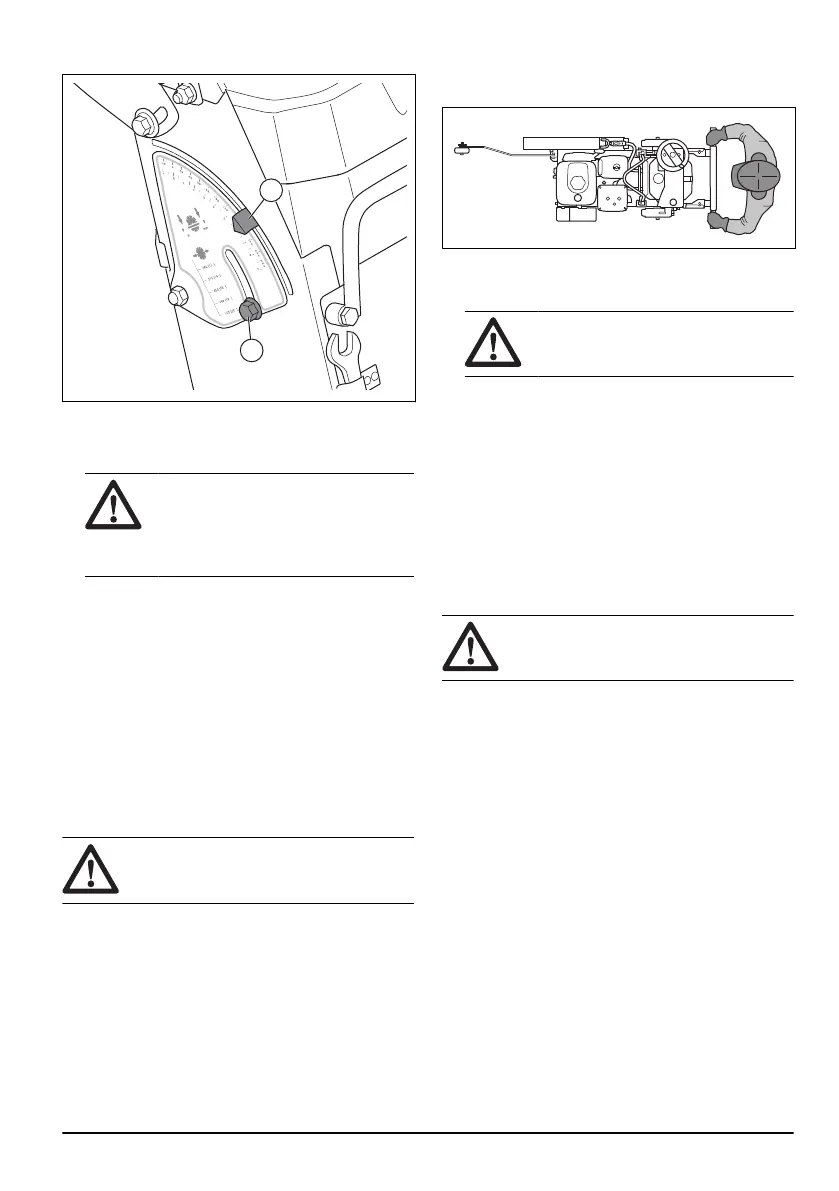

2. Loosen the screw (A).
3. Rotate the indicator plate until the the position "0" is
at the center of the arrow (B).
4. Tighten the screw (A).
CAUTION: Always do a check that
the cutting depth is correct. The indicator
helps you to get the correct cutting depth
but only gives an indication of the depth
value.
To align the pointer with the cutting
blade
1. Lower the pointer and align the pointer with a line
mark.
2. Make sure that the pointer is aligned with the cutting
blade. If necessary, adjust the guide wheel on the
pointer until it is aligned with the cutting blade.
a) Loosen the nut for the guide wheel.
b) Align the guide wheel with the cutting blade.
c) Tighten the nut for the guide wheel.
To use the correct working technique
WARNING: The blade shaft rotates
when the engine is started.
• Stay away from the blade path while the engine
is on. The correct operator position is behind the
handles with both hands on the handles.
• Examine the cutting blade frequently for cracks and
broken parts during the work day. Do not use a
damaged cutting blade.
WARNING: Stop the engine before
you examine the cutting blade.
• Do not grind with the side of the cutting blade. The
cutting blade can break and cause injury to the
operator or bystanders. Only use the cutting edge.
• Do not bend or twist the cutting blade in the cut.
• Make sure that the cutting blade moves freely and
does not catch in the cut.
• If you are to cut concrete bricks, tightly attach the
concrete bricks before you cut. The heavy weight
of the material can cause damage to the product
and serious injury. Make sure that you can move the
product in controlled conditions.
To start the product
WARNING: Make sure that the cutting
blade is slightly above the ground.
• Refer to the operator's manual supplied by the
engine manufacturer.
1919 - 002 - 23.01.2023
13
