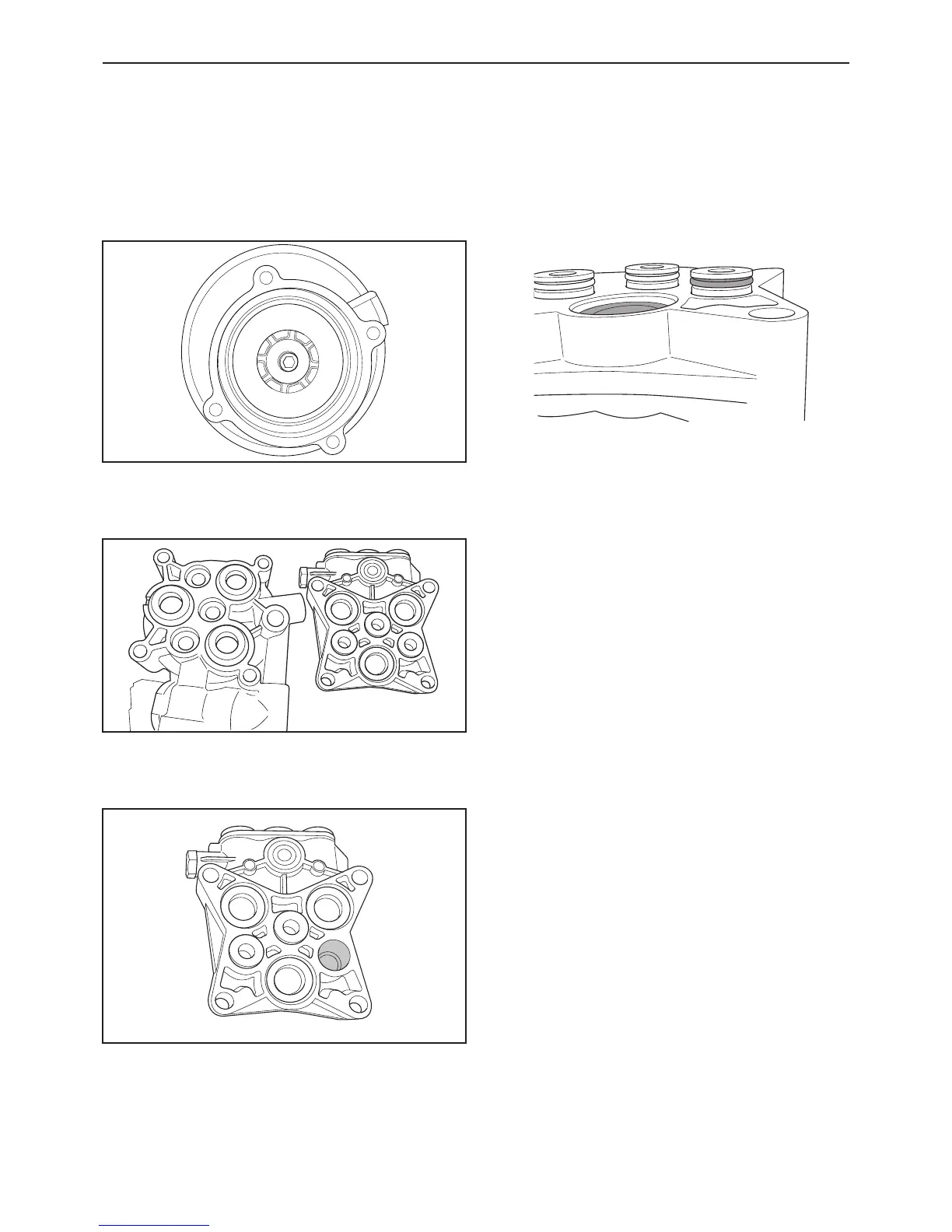

2.16 To disassembly/assemble the
pump
1. The bearing system can only be installed in one
direction. The ball ring can be installed in both directions.
Oil level: 60 ml.
2. The gure below shows the pump after opening the
cylinder head from the cylinder block.
Note: The pressure valves must be placed correctly!
3. In the bottom of the hole for the suction valve there is
a guidance (rotation lock). The legs of the suction valves
MUST be placed on each side of this guidance!
4. Before assembly of the pump:
- Make sure that the suction valves are installed
correctly.
- Verify the level of the valves. One O-ring must be
completely under the surface.
