108548_0711 4-7
NOTE: Illustrations may differ from the actual machine you have purchased.
Name Description
A.
Upper handle Grab this handle when using the lawn mower
B.
Drive clutch lever
Controls mowing and stoppage.
Pushed forward: Machine starts moving forward
Released: Machine stops moving forward
C.
Blade lever
Engages and disengages the blade clutch
Pushed forward with yellow button depressed: Engages the blade clutch
(When pushed forward with the button not depressed, the blade does not rotate.)
Released: Stops the blade rotation.
D.
Gearshift lever Adjusts the mowing speed
E.
Throttle lever
Adjusts the engine speed.
(Position)
(Meaning)
Choking
High speed
Low speed
Stop
(Usage)
Engine start
Mowing
Idling
Engine stop
F.
Grass bag Catches the grass clippings
G.
Guard
H.
Cutting height adjustment lever Adjusts the cutting height (one located at each wheel)
I.
Wheel
J.
Fuel tank
K.
Recoil starter Pull the starter rope to start the engine
L.
Air cleaner
M.
Muffler
N.
Housing
O.
Spark plug
P.
Spark plug wire
Q.
Fuel cock Shuts off fuel flow to the engine.
R.
Blade
S.
Blade mounting bolts Attaches the blade to the blade mount
T.
Engine oil dipstick & oil fill tube Shows the engine oil level.
U.
Starter rope
V.
Lower handle
W.
Fuel filter

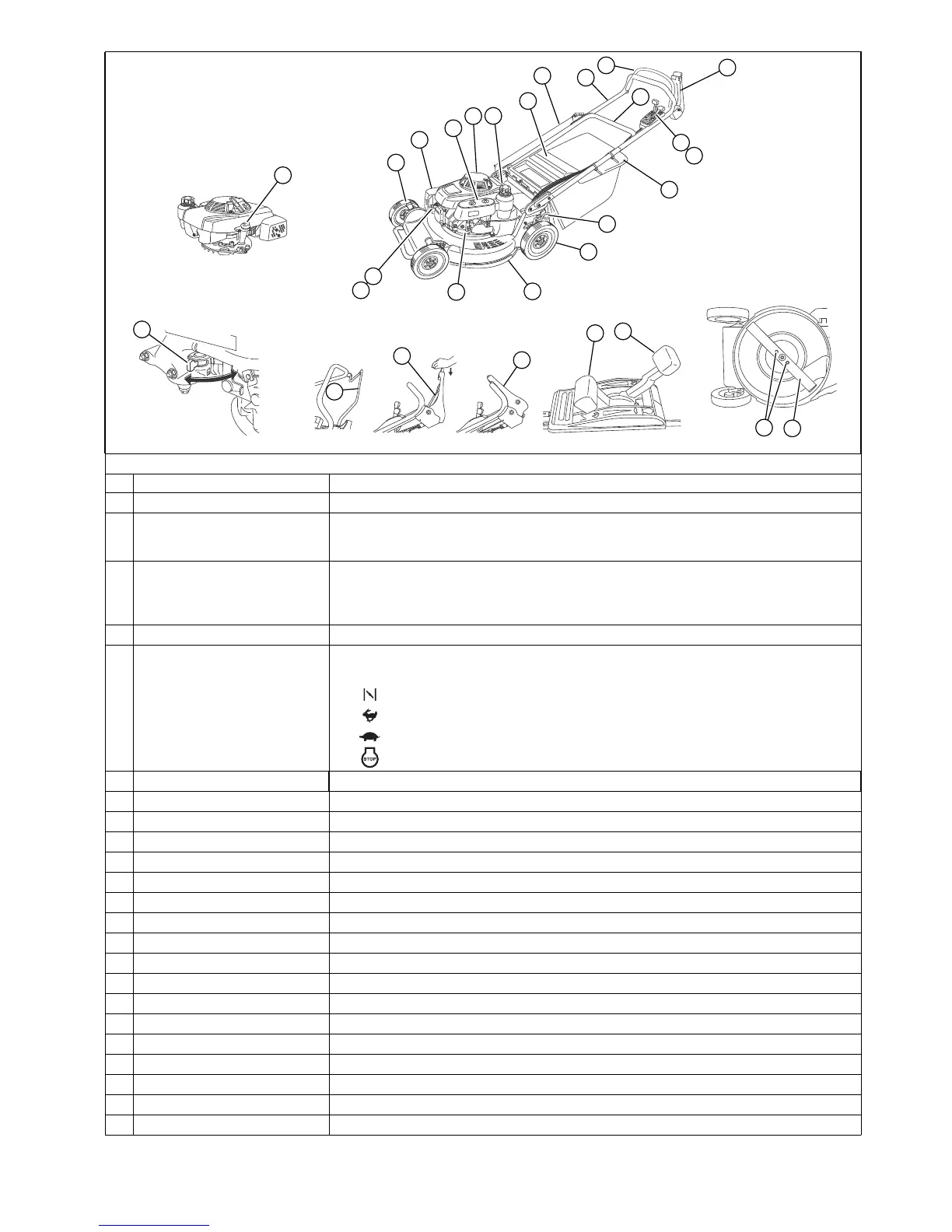

Fig. 4-17
A
B
C
F
D
E
G
H
I
H
J
N
D
C
P
O
R
E
C
B
Q
OFF
ON
T
M
L
K
U
V
W
S
