HUSTLER Super Z User Manual

114565_0112 3-5

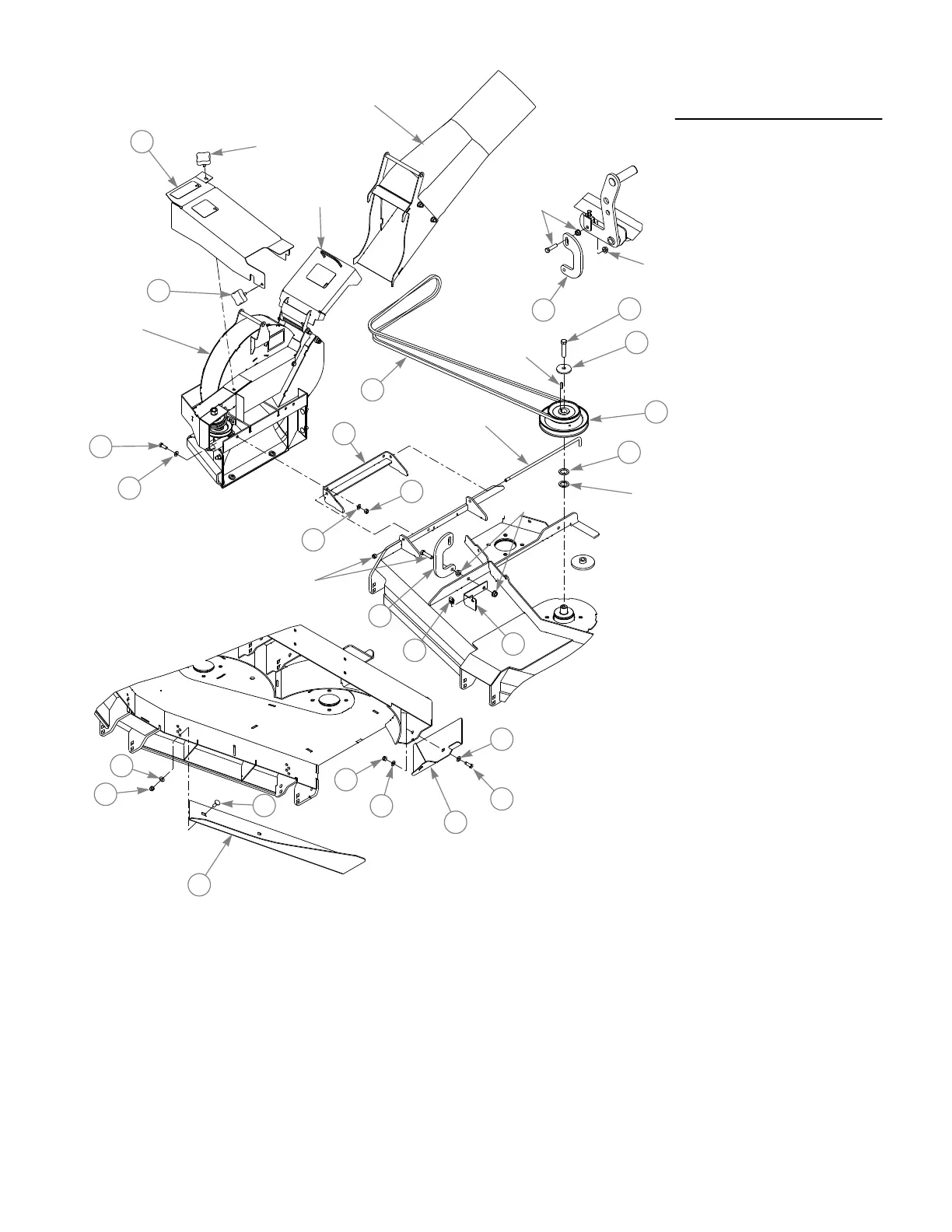

Figure 3-3
1
2
3
4
5
7
8
9
10
16
13
15
6
INDEX
NO.
PART NO.
DESCRIPTION
1 115772 CENTER DRIVE COVER
2 603806 110.5" EL A-SEC BELT
3 114361 RS BLOWOUT BAFFLE
4 113118 BLOWER MOUNT
5 113127 BLOWER BAFFLE
6 792002 KNOB 5/16-18 X 3/4"
7 115665 RIGID LINK
8 115773 CENTER DRIVE BRACKET
9 602914 DOUBLE PULLEY
10 752386 CW .515 X 2.25 X .204 BLK
11 045765 FW 1.030 X 1.500 X .134 ZN
12 767954 FW .406 X .812 X .060 SAE
13 008573 CS .500-13 X 2.500 HX G5
14 036244 CS .375-16 X 1.000 HX G5
15 025395 CB .375-16 X 1.00 G5 ZNY
16 054502 NT .375-16 HX GRD 5 ZNY
17 086660 NT .375-16 HXZY NL
18 601069 CN .312-18 X .200 MAX THK
14
113903 (60” Super Z)
Adapter Assembly
12
Existing
hardware
Blower
assembly
Existing
hardware
Existing
hardware
Existing
hardware
18
Discharge
cover
Install in lower set of holes
12
12
12
12
17
14
Existing
hardware
Existing
hardware
7
16
Existing
hardware
Outlet tube and
adapter assembly
11
Existing
rod
