Blower Impeller
The blower impeller shaft bearings do not require lubrication.
Lid Latch Adjustment
If the lid latch does not hold the lid in place then the latch will
need to be adjusted. The lid will need to be closed before the
latch can be adjusted.
1. Loosen the hardware on the lid catch.
2. Adjust the lid catch until it fully engages on the latch
assembly.
3. Tighten the hardware.
4. Test the latch by opening and letting the lid close freely.
It should secure the lid in place. If not, repeat the
previous steps.
Storage
When your mower is to set idle for a period of time, scrape
and remove the grass material from inside the hood and clean
the bags.
Check for loose or missing hardware, tighten or replace. Also
check for badly worn or damaged parts, consider replacing them
at this time. Touch up chipped paint areas, your dealer has
aerosol spray paint available

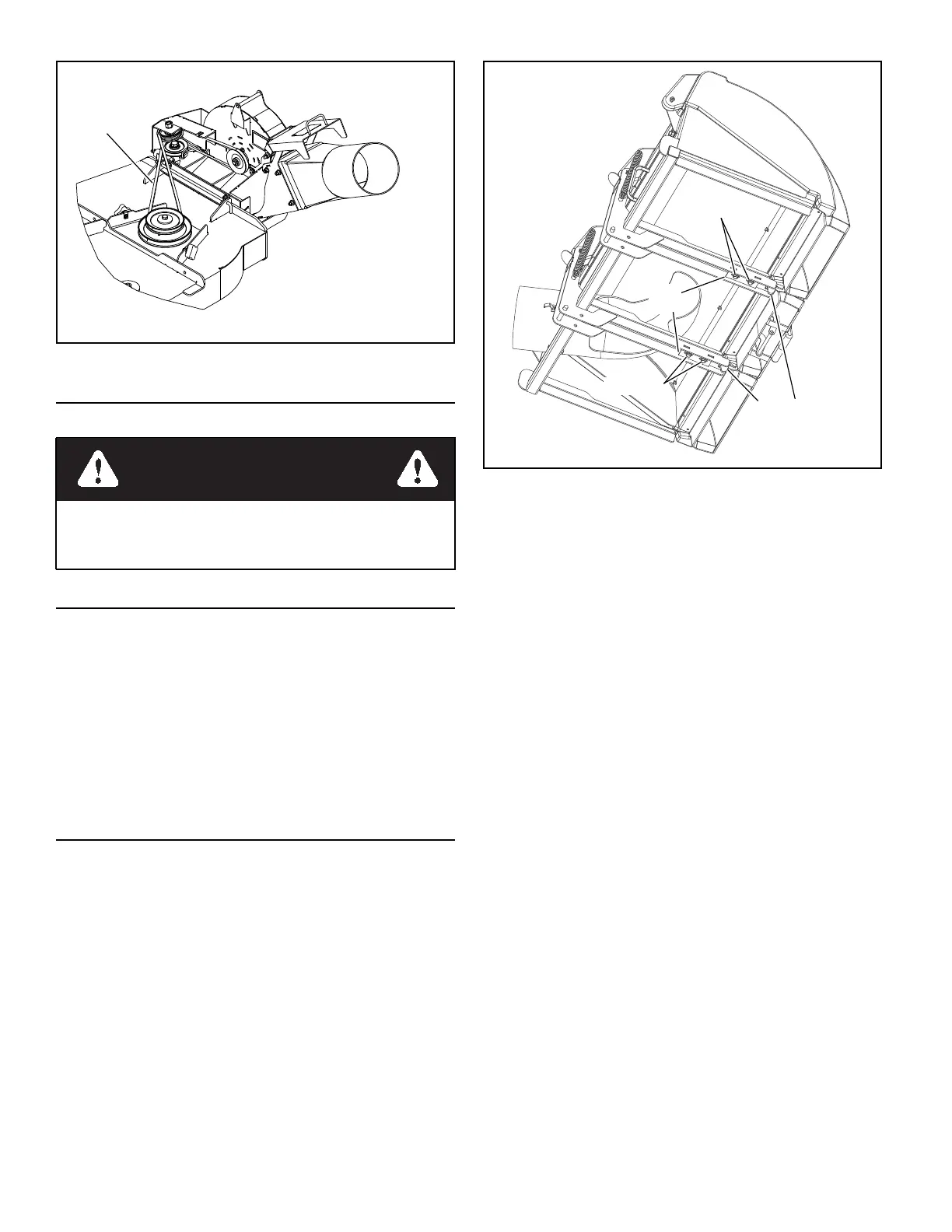

Figure 5-3
WARNING
Normal wear can cause the impeller and edges of the
blower to become sharp. Wear gloves and use caution
when servicing the blower.
Blower
belt
66”/72”” Blower Belt Routing
Figure 5-4
Lid
catch
Hardware
Hardware
Latch assembly
To Next Page
