6
DO-IT-YOURSELF MAINTENANCE
11
1. Put a new wiper blade onto the wiper arm and
lower the wiper blade at the level of the wiper
arm as shown in the drawing.
2. Pull up the wiper blade until you hear an
audible "click" to engage in the end of the
wiper arm.
NOTE:
Do not allow the wiper arm to fall against the
windshield.
2. Raise the wiper blade lightly and pull up it.
To install the wiper blade
HHR5049
HHR5050
G080B01HR-GAT

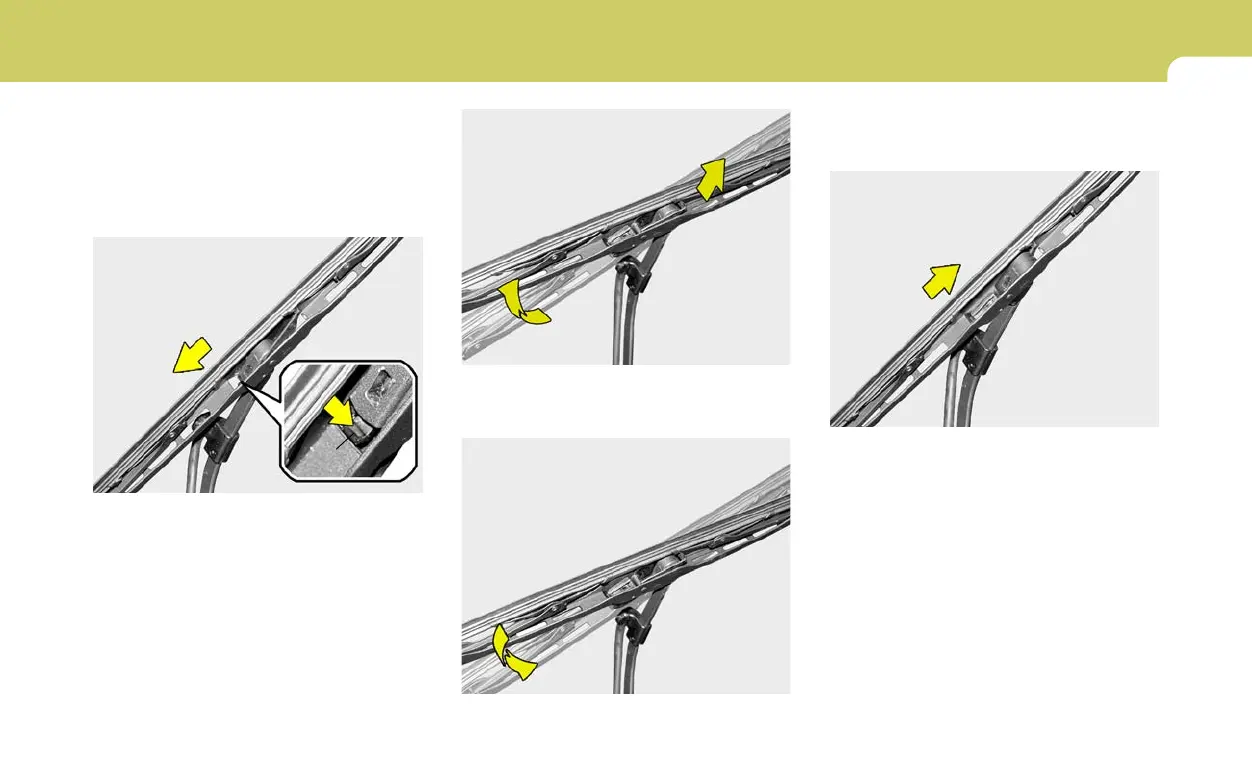

Replacing the Wiper Blades
To replace the wiper blades, raise the wiper to
the vertical.
To remove the wiper blade
1. Push down the wiper blade with the locking clip
(1) pressed to detach it from the wiper arm.
HHR5048
(1)
HHR5051
To Next Page
