6
DO-IT-YOURSELF MAINTENANCE
25

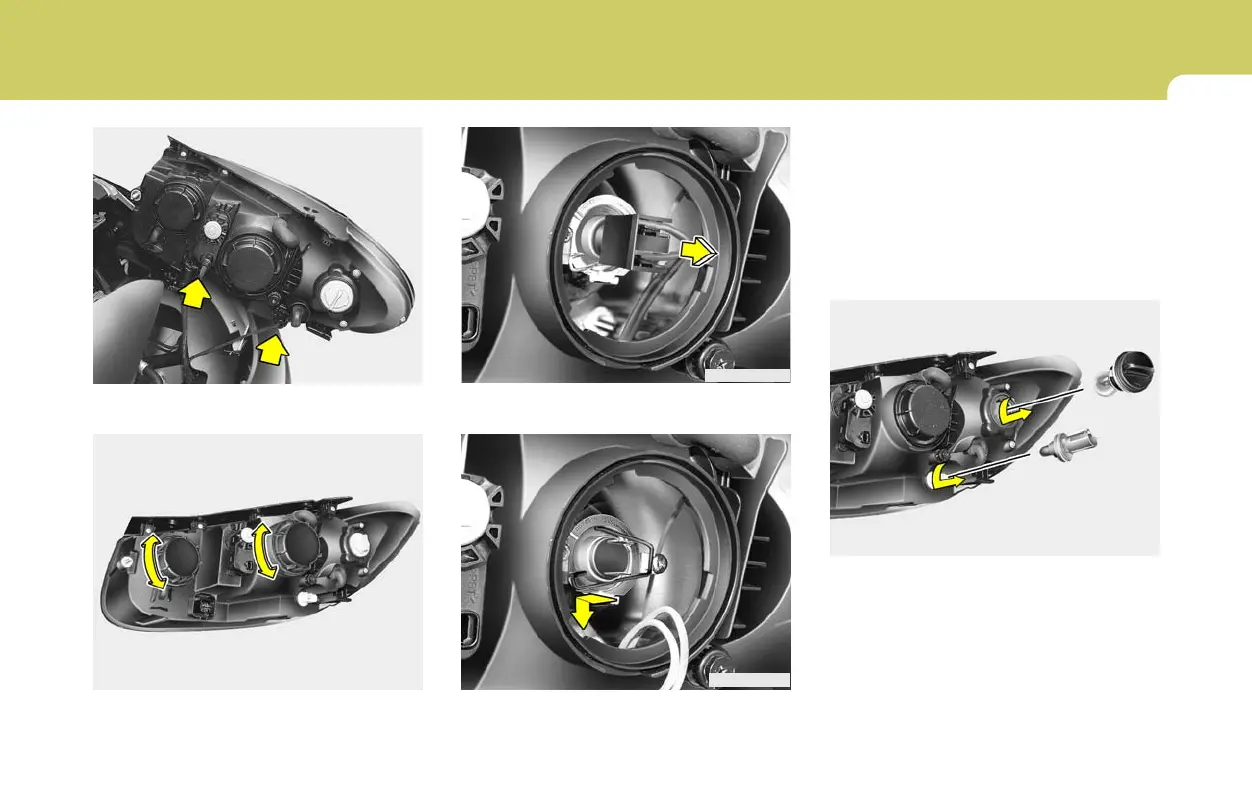

8. Push the bulb spring to remove the
headlight bulb.
7. Disconnect the connector from the bulb
base in the back of the headlight.
OCM055011L
OCM055012L
5. Disconnect the wire harness from the
bulb base in the back of the headlight.
6. Turn the plastic cover counterclock-
wise and remove it.
OCM055010L
OCM055009L
9. Remove the protective cap from the
replacement bulb and install the new
bulb by matching the plastic base with
the headlight hole. Reattach the bulb
spring and reconnect the connector.
10. Use the protective cap and carton to
promptly dispose of the old bulb.
11. Check for proper headlight aim.
OCM055014L
12. To replace the front turn signal light
bulb or the front position light bulb, take
it out from the bulb holder and install
the new bulb.
To Next Page
