30

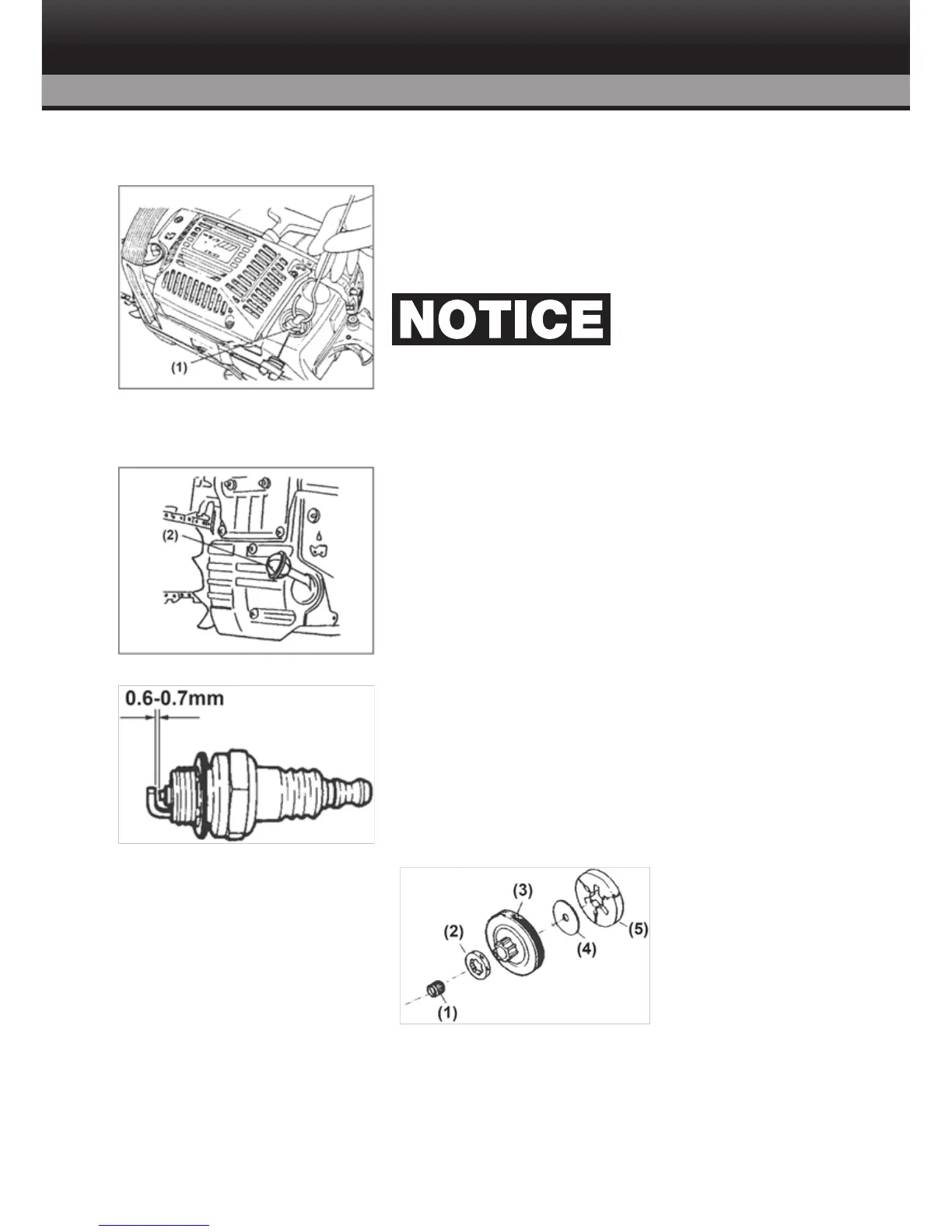

2. Fuel lter
(a) Using a wire hook, take out the lter from
the ller port.
(b) Remove the lter and wash with petrol, or
replace with a new one if needed. (1) Filter
• After removing the lter, use a pinch tool to
hold the end of the suction pipe.
• When assembling the lter, take care not to allow lter bers or dust
inside the suction pipe.
3. Oil tank
With a wire hook, take out the oil lter
through the ller port and clean in petrol.
When putting the lter back into the tank,
make sure that it comes to the front right
corner. Also clean off dirt in the tank.
(2) Oil Filter
4. Spark plug
Clean the electrodes with a soft wire brush
or spark plug cleaner and reset the gap to
0.65mm.
Spark plug type NHSP LD L8RTF or
CHAMPION RCJ7Y or NGK BPMR7A
5. Sprocket
Check for cracks and for
excessive wear interfering
with the chain drive. If the
wear is found, replace it
with a new one. Never t a
new chain on a worn sprocket, or a worn chain on a new sprocket.
(1) Needle bearing
(2) Sprocket
(3) Clutch drum
(4) Washer
(5) Clutch block
