①
②
ID No.
KMH-SX2-RS-I-5-202308
Version No.
01
Version date:
08/2023
Page
2 of 4

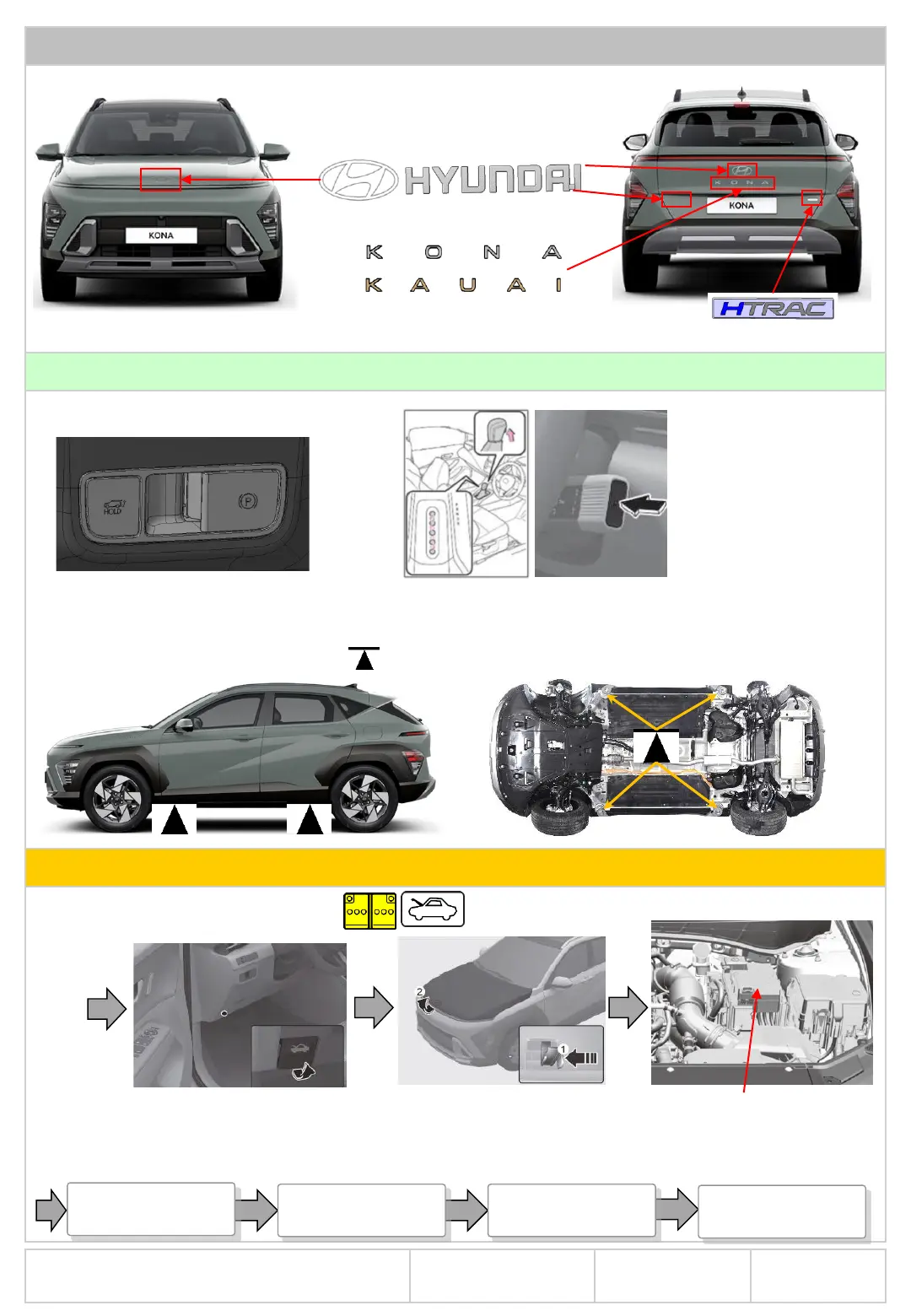

1. Identification / recognition
3. Disable direct hazards / safety regulations
Lifting points under the vehicle:
Low Voltage 12V battery:
2. Immobilisation / stabilisation / lifting
Immobilization:
Access:
Disabling:
Turn the ignition
switch off
Access to battery
shown above
Disconnect the
negative(-) terminal
Disconnect the
positve(+) terminal
Chock the wheels and pull the
switch to set the parking brake.
For automatic
vehicles, while
depressing the
brake pedal shift
the lever to P(park)
position or press P
button to make
vehicle in P
position
Pull the release lever to
unlatch the hood. The hood
should pop open slightly.
Raise the hood slightly,
push the secondary latch
up (1) inside of the hood
center and lift the hood (2)
12V Battery in the engine
room
Brand Logo Name
Model name
Wheel Drive emblem
To Next Page
